Screw eye with wood grain

Self-tapping eye bolt for creating strong attachment points. Suitable for both wall and ceiling applications. Available in various sizes in galvanized or stainless steel.

Length 1

Length 2

Diameter

Material

RVS 304

steel

Steel

Steel Quality

DX51

W-Nr.: 1.4301

Surface treatment

Details & dimensions

Article

Article number80010013

EAN code8714318010539

Packaging

EAN code8714318123420

Packaging100 per box

Length65 mm

Width45 mm

Height35 mm

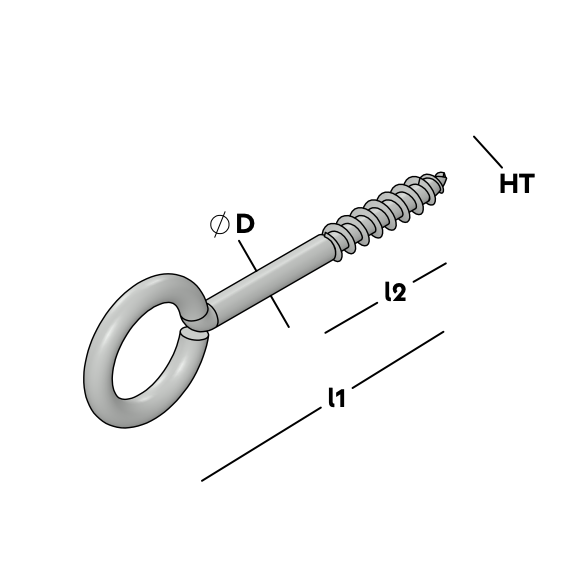

Dimensions

Screw eye with wood grain

Length 110 mm

Length 27 mm

Diameter2,45 mm

Maximum pulling force5 kg

Wood Wire3 Ht

Size eye5 Ø

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Length 1	Length 2	Diameter	Maximum pulling force	Wood Wire	Size eye	Material	Steel Quality	Surface treatment
Schroefoog houtdraad	80010001	100 per box	6 mm	4 mm	1,92 mm	3 kg	2,4 Ht	3 Ø	steel	DX51
Screw eye with wood grain	80010004	100 per box	8 mm	5 mm	2,15 mm	5 kg	2,7 Ht	4 Ø	Steel	DX51
Screw eye with wood grain	80010007	200 per box	10 mm	7 mm	1,8 mm	4 kg	2,3 Ht	3 Ø	Steel	DX51
Screw eye with wood grain	80010010	100 per box	10 mm	7,5 mm	2,15 mm	5 kg	2,7 Ht	4 Ø	Steel	DX51
Screw eye with wood grain	80010013	100 per box	10 mm	7 mm	2,45 mm	5 kg	3 Ht	5 Ø	Steel	DX51
Screw eye with wood grain	80010016	100 per box	12 mm	7,5 mm	2,15 mm	5 kg	2,7 Ht	4 Ø	Steel	DX51
Screw eye with wood grain	80010019	200 per box	12 mm	8 mm	2,3 mm	5 kg	2,8 Ht	5 Ø	Steel	DX51
Screw eye with wood grain	80010022	100 per box	12 mm	8 mm	2,6 mm	7,5 kg	3,4 Ht	6 Ø	Steel	DX51
Screw eye with wood grain	80010025	100 per box	12 mm	8 mm	3 mm	9 kg	4 Ht	8 Ø	Steel	DX51
Screw eye with wood grain	80010028	100 per box	16 mm	12 mm	2,6 mm	7,5 kg	3,4 Ht	6 Ø	Steel	DX51
Screw eye with wood grain	80010031	100 per box	16 mm	10 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	Steel	DX51
Screw eye with wood grain	80010034	100 per box	16 mm	10 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51
Screw eye with wood grain	80010037	200 per box	20 mm	12 mm	2,8 mm	7,5 kg	3,6 Ht	6 Ø	Steel	DX51
Screw eye with wood grain	80010040	100 per box	20 mm	12 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	Steel	DX51
Screw eye with wood grain	80010043	100 per box	20 mm	12 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51
Screw eye with wood grain	80010046	100 per box	20 mm	13 mm	3,8 mm	10 kg	4,8 Ht	12 Ø	Steel	DX51
Screw eye with wood grain	80010049	100 per box	25 mm	15 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	Steel	DX51
Screw eye with wood grain	80010052	100 per box	25 mm	15 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51
Screw eye with wood grain	80010055	100 per box	25 mm	16 mm	3,8 mm	10 kg	4,8 Ht	12 Ø	Steel	DX51
Screw eye with wood grain	80010058	100 per box	25 mm	16 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	Steel	DX51
Screw eye with wood grain	80010061	100 per box	30 mm	15 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51
Screw eye with wood grain	80010064	100 per box	30 mm	16 mm	3,8 mm	10 kg	4,8 Ht	12 Ø	Steel	DX51
Screw eye with wood grain	80010067	100 per box	30 mm	16 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	Steel	DX51
Screw eye with wood grain	80010070	100 per box	30 mm	16 mm	4,2 mm	12,5 kg	5,5 Ht	16 Ø	Steel	DX51
Screw eye with wood grain	80010073	100 per box	40 mm	22 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	Steel	DX51
Screw eye with wood grain	80010100	100 per box	60 mm	25 mm	5,2 mm	25 kg	6,2 Ht	20 Ø	Steel	DX51
Screw eye with wood grain	80010103	100 per box	60 mm	25 mm	5,8 mm	40 kg	5,8 Ht	25 Ø	Steel	DX51
Screw eye with wood grain	80010115	100 per box	16 mm	10 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	RVS 304	W-Nr.: 1.4301
Screw eye with wood grain	80010118	100 per box	20 mm	12 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	RVS 304	W-Nr.: 1.4301
Screw eye with wood grain	80010121	100 per box	25 mm	16 mm	3,8 mm	10 kg	4,8 Ht	12 Ø	RVS 304	W-Nr.: 1.4301
Screw eye with wood grain	80010124	100 per box	30 mm	14 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	RVS 304	W-Nr.: 1.4301
Screw eye with wood grain	80010127	100 per box	40 mm	22 mm	4,2 mm	12,5 kg	5,5 Ht	16 Ø	RVS 304	W-Nr.: 1.4301
Screw eye with wood grain	80010136	200 per box	6 mm	4 mm	1,8 mm	3 kg	2,2 Ht	3 Ø	Steel	DX51	VM
Screw eye with wood grain	80010138	200 per box	8 mm	5 mm	1,8 mm	4 kg	2,3 Ht	3 Ø	Steel	DX51	VM
Screw eye with wood grain	80010140	200 per box	8 mm	5 mm	2,3 mm	5 kg	2,8 Ht	4 Ø	Steel	DX51	VM
Screw eye with wood grain	80010142	200 per box	10 mm	4 mm	2,3 mm	5 kg	2,8 Ht	4 Ø	Steel	DX51	VM
Screw eye with wood grain	80010144	200 per box	10 mm	5 mm	2,3 mm	5 kg	2,8 Ht	5 Ø	Steel	DX51	VM
Screw eye with wood grain	80010148	200 per box	12 mm	8 mm	2,3 mm	5 kg	3,6 Ht	5 Ø	Steel	DX51	VM
Screw eye with wood grain	80010150	200 per box	12 mm	8 mm	2,8 mm	7,5 kg	3,6 Ht	6 Ø	Steel	DX51	VM
Screw eye with wood grain	80010154	100 per box	16 mm	12 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	Steel	DX51	VM
Screw eye with wood grain	80010158	100 per box	20 mm	12 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	Steel	DX51	VM
Screw eye with wood grain	80010160	100 per box	20 mm	13 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51	VM
Screw eye with wood grain	80010162	100 per box	25 mm	15 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51	VM
Screw eye with wood grain	80010164	100 per box	25 mm	15 mm	3,8 mm	10 kg	4,8 Ht	12 Ø	Steel	DX51	VM
Screw eye with wood grain	80010170	100 per box	30 mm	16 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	Steel	DX51	VM
Screw eye with wood grain	80010177	100 per box	10 mm	7 mm	2,4 mm	5 kg	3 Ht	5 Ø	Steel	DX51
Screw eye with wood grain	80010179	100 per box	16 mm	12 mm	2,65 mm	9 kg	3,4 Ht	6 Ø	Steel	DX51
Screw eye with wood grain	80010181	100 per box	20 mm	16 mm	3,2 mm	9 kg	4 Ht	8 Ø	Steel	DX51
Screw eye with wood grain	80010184	100 per box	20 mm	13 mm	3,45 mm	9 kg	4,3 Ht	10 Ø	Steel	DX51
Screw eye with wood grain	80010187	100 per box	25 mm	16 mm	3,45 mm	9 kg	4,3 Ht	10 Ø	Steel	DX51
Screw eye with wood grain	80010211	200 per box	8 mm	5 mm	1,8 mm	2 kg	2,3 Ht	3 Ø	Steel	DX51	MS
Screw eye with wood grain	80010213	200 per box	8 mm	5 mm	2,2 mm	3 kg	2,7 Ht	4 Ø	Steel	DX51	MS
Screw eye with wood grain	80010215	200 per box	10 mm	8 mm	2,3 mm	4 kg	2,8 Ht	4 Ø	Steel	DX51	MS
Screw eye with wood grain	80010217	200 per box	10 mm	7 mm	2,6 mm	4 kg	3,2 Ht	5 Ø	Steel	DX51	MS
Screw eye with wood grain	80010219	200 per box	12 mm	8 mm	2,3 mm	4 kg	2,8 Ht	5 Ø	Steel	DX51	MS
Screw eye with wood grain	80010221	200 per box	12 mm	8 mm	2,9 mm	6 kg	3,6 Ht	6 Ø	Steel	DX51	MS
Screw eye with wood grain	80010223	200 per box	16 mm	10 mm	2,9 mm	6 kg	3,6 Ht	6 Ø	Steel	DX51	MS
Screw eye with wood grain	80010225	100 per box	16 mm	12 mm	3,5 mm	6 kg	4,2 Ht	8 Ø	Steel	DX51	MS
Screw eye with wood grain	80010227	100 per box	20 mm	12 mm	3,5 mm	7 kg	4,4 Ht	8 Ø	Steel	DX51	MS
Screw eye with wood grain	80010229	100 per box	20 mm	13 mm	3,5 mm	7 kg	4,2 Ht	10 Ø	Steel	DX51	MS
Screw eye with wood grain	80010231	100 per box	25 mm	15 mm	3,5 mm	7 kg	4,4 Ht	10 Ø	Steel	DX51	MS
Screw eye with wood grain	80010233	100 per box	25 mm	16 mm	3,9 mm	7 kg	4,8 Ht	12 Ø	Steel	DX51	MS
Screw eye with wood grain	80010235	100 per box	30 mm	16 mm	3,9 mm	8 kg	4,8 Ht	12 Ø	Steel	DX51	MS
Screw eye with wood grain	80010237	100 per box	30 mm	16 mm	3,9 mm	8 kg	4,8 Ht	14 Ø	Steel	DX51	MS
Screw eye with wood grain	80010088	100 per box	50 mm	25 mm	4,2 mm	12,5 kg	5,5 Ht	16 Ø	Steel	DX51
Screw eye with wood grain	80010085	100 per box	50 mm	25 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	Steel	DX51
Screw eye with wood grain	80010082	100 per box	40 mm	22 mm	5,2 mm	25 kg	6,2 Ht	20 Ø	Steel	DX51
Screw eye with wood grain	80010079	100 per box	40 mm	22 mm	4,7 mm	15 kg	6 Ht	18 Ø	Steel	DX51
Screw eye with wood grain	80010076	100 per box	40 mm	22 mm	4,2 mm	12,5 kg	5,5 Ht	16 Ø	Steel	DX51
Screw eye with wood grain	80010091	100 per box	50 mm	25 mm	4,7 mm	15 kg	6 Ht	18 Ø	Steel	DX51
Screw eye with wood grain	80010094	100 per box	50 mm	25 mm	5,2 mm	25 kg	6,2 Ht	20 Ø	Steel	DX51
Screw eye with wood grain	80010097	100 per box	50 mm	25 mm	5,8 mm	40 kg	5,8 Ht	25 Ø	Steel	DX51
Screw eye	80710122	100 per box	30 mm	20 mm	4 mm	9 kg	4,6 Ht	8 Ø	RVS 304	-
Screw eye with wood grain	80010190	100 per box	25 mm	16 mm	3,8 mm	9 kg	4,8 Ht	12 Ø	Steel	DX51
Screw eye with wood grain	80010193	100 per box	30 mm	20 mm	4 mm	10 kg	4,6 Ht	12 Ø	Steel	DX51
Screw eye with wood grain	80010196	100 per box	40 mm	20 mm	4 mm	10 kg	4,6 Ht	14 Ø	Steel	DX51
Screw eye with wood grain	80010199	100 per box	40 mm	25 mm	4,4 mm	10 kg	5 Ht	16 Ø	Steel	DX51
