Back to the overview

Screw eye with wood grain

Name: Screw eye with wood grain
SKU: 80010061

Self-tapping eye bolt for creating strong attachment points. Suitable for both wall and ceiling applications. Available in various sizes in galvanized or stainless steel.

Length 1

Length 2

Diameter

Material

RVS 304

steel

Steel

Steel Quality

DX51

W-Nr.: 1.4301

Surface treatment

Details & dimensions

Article

Article number80010061

EAN code8714318010690

Packaging

EAN code8714318109318

Packaging100 per box

Length85 mm

Width60 mm

Height65 mm

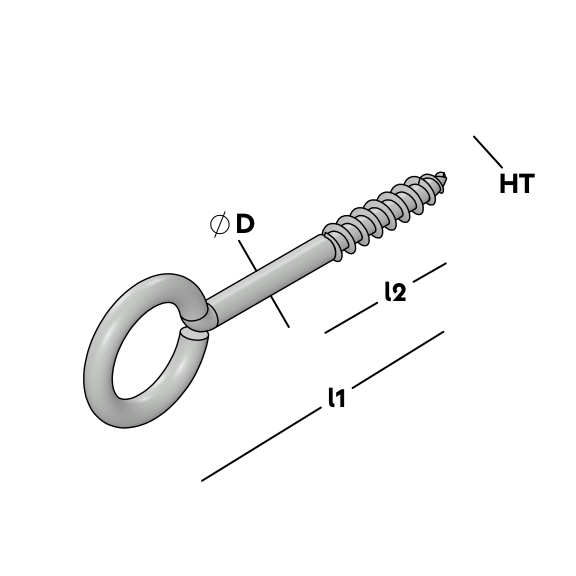

Dimensions

Screw eye with wood grain

Length 1 (l1)30 mm

Length 2 (l2)15 mm

Diameter3,2 mm

Maximum pulling force9 kg

Wood Wire4,1 Ht

Size eye10 Ø

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Length 1	Length 2	Diameter	Maximum pulling force	Wood Wire	Size eye	Material	Steel Quality	Surface treatment
Schroefoog houtdraad	80010001	100 per box	6 mm	4 mm	1,92 mm	3 kg	2,4 Ht	3 Ø	steel	DX51	EV
Screw eye with wood grain	80010004	100 per box	8 mm	5 mm	2,15 mm	5 kg	2,7 Ht	4 Ø	Steel	DX51	EV
Screw eye with wood grain	80010007	200 per box	10 mm	7 mm	1,8 mm	4 kg	2,3 Ht	3 Ø	Steel	DX51	EV
Screw eye with wood grain	80010010	100 per box	10 mm	7,5 mm	2,15 mm	5 kg	2,7 Ht	4 Ø	Steel	DX51	EV
Screw eye with wood grain	80010013	100 per box	10 mm	7 mm	2,45 mm	5 kg	3 Ht	5 Ø	Steel	DX51	EV
Screw eye with wood grain	80010016	100 per box	12 mm	7,5 mm	2,15 mm	5 kg	2,7 Ht	4 Ø	Steel	DX51	EV
Screw eye with wood grain	80010019	200 per box	12 mm	8 mm	2,3 mm	5 kg	2,8 Ht	5 Ø	Steel	DX51	EV
Screw eye with wood grain	80010022	100 per box	12 mm	8 mm	2,6 mm	7,5 kg	3,4 Ht	6 Ø	Steel	DX51	EV
Screw eye with wood grain	80010025	100 per box	12 mm	8 mm	3 mm	9 kg	4 Ht	8 Ø	Steel	DX51	EV
Screw eye with wood grain	80010028	100 per box	16 mm	12 mm	2,6 mm	7,5 kg	3,4 Ht	6 Ø	Steel	DX51	EV
Screw eye with wood grain	80010031	100 per box	16 mm	10 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	Steel	DX51	EV
Screw eye with wood grain	80010034	100 per box	16 mm	10 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51	EV
Screw eye with wood grain	80010037	200 per box	20 mm	12 mm	2,8 mm	7,5 kg	3,6 Ht	6 Ø	Steel	DX51	EV
Screw eye with wood grain	80010040	100 per box	20 mm	12 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	Steel	DX51	EV
Screw eye with wood grain	80010043	100 per box	20 mm	12 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51	EV
Screw eye with wood grain	80010046	100 per box	20 mm	13 mm	3,8 mm	10 kg	4,8 Ht	12 Ø	Steel	DX51	EV
Screw eye with wood grain	80010049	100 per box	25 mm	15 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	Steel	DX51	EV
Screw eye with wood grain	80010052	100 per box	25 mm	15 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51	EV
Screw eye with wood grain	80010055	100 per box	25 mm	16 mm	3,8 mm	10 kg	4,8 Ht	12 Ø	Steel	DX51	EV
Screw eye with wood grain	80010058	100 per box	25 mm	16 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	Steel	DX51	EV
Screw eye with wood grain	80010061	100 per box	30 mm	15 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51	EV
Screw eye with wood grain	80010064	100 per box	30 mm	16 mm	3,8 mm	10 kg	4,8 Ht	12 Ø	Steel	DX51	EV
Screw eye with wood grain	80010067	100 per box	30 mm	16 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	Steel	DX51	EV
Screw eye with wood grain	80010070	100 per box	30 mm	16 mm	4,2 mm	12,5 kg	5,5 Ht	16 Ø	Steel	DX51	EV
Screw eye with wood grain	80010073	100 per box	40 mm	22 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	Steel	DX51	EV
Screw eye with wood grain	80010100	100 per box	60 mm	25 mm	5,2 mm	25 kg	6,2 Ht	20 Ø	Steel	DX51	EV
Screw eye with wood grain	80010103	100 per box	60 mm	25 mm	5,8 mm	40 kg	5,8 Ht	25 Ø	Steel	DX51	EV
Screw eye with wood grain	80010115	100 per box	16 mm	10 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	RVS 304	W-Nr.: 1.4301	304
Screw eye with wood grain	80010118	100 per box	20 mm	12 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	RVS 304	W-Nr.: 1.4301	304
Screw eye with wood grain	80010121	100 per box	25 mm	16 mm	3,8 mm	10 kg	4,8 Ht	12 Ø	RVS 304	W-Nr.: 1.4301	304
Screw eye with wood grain	80010124	100 per box	30 mm	14 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	RVS 304	W-Nr.: 1.4301	304
Screw eye with wood grain	80010127	100 per box	40 mm	22 mm	4,2 mm	12,5 kg	5,5 Ht	16 Ø	RVS 304	W-Nr.: 1.4301	304
Screw eye with wood grain	80010136	200 per box	6 mm	4 mm	1,8 mm	3 kg	2,2 Ht	3 Ø	Steel	DX51	VM
Screw eye with wood grain	80010138	200 per box	8 mm	5 mm	1,8 mm	4 kg	2,3 Ht	3 Ø	Steel	DX51	VM
Screw eye with wood grain	80010140	200 per box	8 mm	5 mm	2,3 mm	5 kg	2,8 Ht	4 Ø	Steel	DX51	VM
Screw eye with wood grain	80010142	200 per box	10 mm	4 mm	2,3 mm	5 kg	2,8 Ht	4 Ø	Steel	DX51	VM
Screw eye with wood grain	80010144	200 per box	10 mm	5 mm	2,3 mm	5 kg	2,8 Ht	5 Ø	Steel	DX51	VM
Screw eye with wood grain	80010148	200 per box	12 mm	8 mm	2,3 mm	5 kg	3,6 Ht	5 Ø	Steel	DX51	VM
Screw eye with wood grain	80010150	200 per box	12 mm	8 mm	2,8 mm	7,5 kg	3,6 Ht	6 Ø	Steel	DX51	VM
Screw eye with wood grain	80010154	100 per box	16 mm	12 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	Steel	DX51	VM
Screw eye with wood grain	80010158	100 per box	20 mm	12 mm	3,2 mm	9 kg	4,1 Ht	8 Ø	Steel	DX51	VM
Screw eye with wood grain	80010160	100 per box	20 mm	13 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51	VM
Screw eye with wood grain	80010162	100 per box	25 mm	15 mm	3,2 mm	9 kg	4,1 Ht	10 Ø	Steel	DX51	VM
Screw eye with wood grain	80010164	100 per box	25 mm	15 mm	3,8 mm	10 kg	4,8 Ht	12 Ø	Steel	DX51	VM
Screw eye with wood grain	80010170	100 per box	30 mm	16 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	Steel	DX51	VM
Screw eye with wood grain	80010177	100 per box	10 mm	7 mm	2,4 mm	5 kg	3 Ht	5 Ø	Steel	DX51	EPW
Screw eye with wood grain	80010179	100 per box	16 mm	12 mm	2,65 mm	9 kg	3,4 Ht	6 Ø	Steel	DX51	EPW
Screw eye with wood grain	80010181	100 per box	20 mm	16 mm	3,2 mm	9 kg	4 Ht	8 Ø	Steel	DX51	EPW
Screw eye with wood grain	80010184	100 per box	20 mm	13 mm	3,45 mm	9 kg	4,3 Ht	10 Ø	Steel	DX51	EPW
Screw eye with wood grain	80010187	100 per box	25 mm	16 mm	3,45 mm	9 kg	4,3 Ht	10 Ø	Steel	DX51	EPW
Screw eye with wood grain	80010211	200 per box	8 mm	5 mm	1,8 mm	2 kg	2,3 Ht	3 Ø	Steel	DX51	MS
Screw eye with wood grain	80010213	200 per box	8 mm	5 mm	2,2 mm	3 kg	2,7 Ht	4 Ø	Steel	DX51	MS
Screw eye with wood grain	80010215	200 per box	10 mm	8 mm	2,3 mm	4 kg	2,8 Ht	4 Ø	Steel	DX51	MS
Screw eye with wood grain	80010217	200 per box	10 mm	7 mm	2,6 mm	4 kg	3,2 Ht	5 Ø	Steel	DX51	MS
Screw eye with wood grain	80010219	200 per box	12 mm	8 mm	2,3 mm	4 kg	2,8 Ht	5 Ø	Steel	DX51	MS
Screw eye with wood grain	80010221	200 per box	12 mm	8 mm	2,9 mm	6 kg	3,6 Ht	6 Ø	Steel	DX51	MS
Screw eye with wood grain	80010223	200 per box	16 mm	10 mm	2,9 mm	6 kg	3,6 Ht	6 Ø	Steel	DX51	MS
Screw eye with wood grain	80010225	100 per box	16 mm	12 mm	3,5 mm	6 kg	4,2 Ht	8 Ø	Steel	DX51	MS
Screw eye with wood grain	80010227	100 per box	20 mm	12 mm	3,5 mm	7 kg	4,4 Ht	8 Ø	Steel	DX51	MS
Screw eye with wood grain	80010229	100 per box	20 mm	13 mm	3,5 mm	7 kg	4,2 Ht	10 Ø	Steel	DX51	MS
Screw eye with wood grain	80010231	100 per box	25 mm	15 mm	3,5 mm	7 kg	4,4 Ht	10 Ø	Steel	DX51	MS
Screw eye with wood grain	80010233	100 per box	25 mm	16 mm	3,9 mm	7 kg	4,8 Ht	12 Ø	Steel	DX51	MS
Screw eye with wood grain	80010235	100 per box	30 mm	16 mm	3,9 mm	8 kg	4,8 Ht	12 Ø	Steel	DX51	MS
Screw eye with wood grain	80010237	100 per box	30 mm	16 mm	3,9 mm	8 kg	4,8 Ht	14 Ø	Steel	DX51	MS
Screw eye with wood grain	80010088	100 per box	50 mm	25 mm	4,2 mm	12,5 kg	5,5 Ht	16 Ø	Steel	DX51	EV
Screw eye with wood grain	80010085	100 per box	50 mm	25 mm	3,8 mm	10 kg	4,8 Ht	14 Ø	Steel	DX51	EV
Screw eye with wood grain	80010082	100 per box	40 mm	22 mm	5,2 mm	25 kg	6,2 Ht	20 Ø	Steel	DX51	EV
Screw eye with wood grain	80010079	100 per box	40 mm	22 mm	4,7 mm	15 kg	6 Ht	18 Ø	Steel	DX51	EV
Screw eye with wood grain	80010076	100 per box	40 mm	22 mm	4,2 mm	12,5 kg	5,5 Ht	16 Ø	Steel	DX51	EV
Screw eye with wood grain	80010091	100 per box	50 mm	25 mm	4,7 mm	15 kg	6 Ht	18 Ø	Steel	DX51	EV
Screw eye with wood grain	80010094	100 per box	50 mm	25 mm	5,2 mm	25 kg	6,2 Ht	20 Ø	Steel	DX51	EV
Screw eye with wood grain	80010097	100 per box	50 mm	25 mm	5,8 mm	40 kg	5,8 Ht	25 Ø	Steel	DX51	EV
Screw eye	80710122	100 per box	30 mm	20 mm	4 mm	9 kg	4,6 Ht	8 Ø	RVS 304	-	304
Screw eye with wood grain	80010190	100 per box	25 mm	16 mm	3,8 mm	9 kg	4,8 Ht	12 Ø	Steel	DX51	EPW
Screw eye with wood grain	80010193	100 per box	30 mm	20 mm	4 mm	10 kg	4,6 Ht	12 Ø	Steel	DX51	EPW
Screw eye with wood grain	80010196	100 per box	40 mm	20 mm	4 mm	10 kg	4,6 Ht	14 Ø	Steel	DX51	EPW
Screw eye with wood grain	80010199	100 per box	40 mm	25 mm	4,4 mm	10 kg	5 Ht	16 Ø	Steel	DX51	EPW
