Volgplaat
Volgplaat

Bearing plate

Length
Width
Thickness
Receivers for
Steel Quality
DX51
S235
S350
Surface treatment
EV
SV
TV

Details & dimensions

Article

Article number84085
EAN code8714318002046

Packaging

EAN code8714318002046
Packaging1 piece

Dimensions

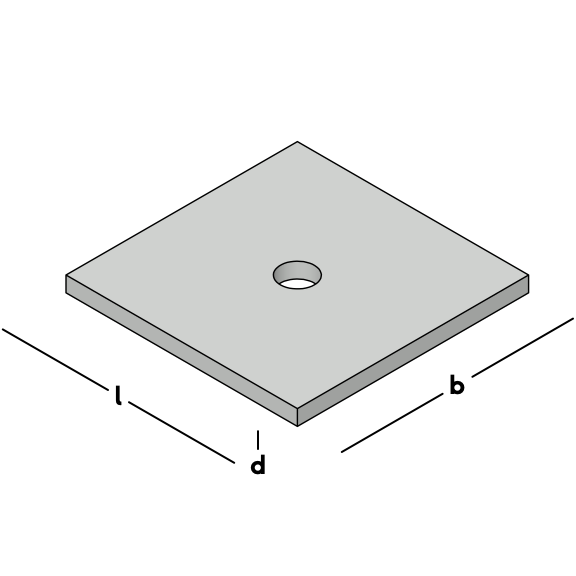

Bearing plate

Length150 mm
Width150 mm
Thickness10 mm
Hole pattern1/22
MaterialSteel
Steel QualityS235
Surface treatmentSV

Downloads

Drawings and models in 2D and 3D

DWG
DXF
IFC
STP
PDF
