Metal formwork for concrete

An edge box for difficult shapes or recesses in cast-in-place floors. The edge box has multiple fold seams which allows the profile to be easily adapted to the situation.

Height

Details & dimensions

Article

Article number104170

EAN code8714318038342

Packaging

EAN code8714318038342

Packaging1 piece

Length1200 mm

Width170 mm

Height2 mm

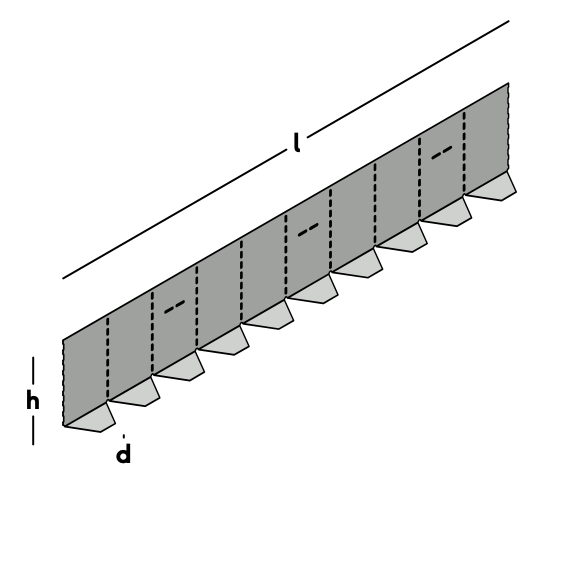

Dimensions

Metal formwork for concrete

Length1000 mm

Thickness0,7 mm

Height170 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 3

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Thickness	Height	Material	Steel Quality
Metal formwork for concrete	104150	1 piece	1000 mm	0,7 mm	150 mm	Steel	DX51
Metal formwork for concrete	104170	1 piece	1000 mm	0,7 mm	170 mm	Steel	DX51
Metal formwork for concrete	104190	1 piece	1000 mm	0,7 mm	190 mm	Steel	DX51
Metal formwork for concrete	104200	1 piece	1000 mm	0,7 mm	200 mm	Steel	DX51
Metal formwork for concrete	104210	1 piece	1000 mm	0,7 mm	210 mm	Steel	DX51
Metal formwork for concrete	104220	1 piece	1000 mm	0,7 mm	220 mm	Steel	DX51
Metal formwork for concrete	104230	1 piece	1000 mm	0,7 mm	230 mm	Steel	DX51
Metal formwork for concrete	104240	1 piece	1000 mm	0,7 mm	240 mm	Steel	DX51
Metal formwork for concrete	104250	1 piece	1000 mm	0,7 mm	250 mm	Steel	DX51
Metal formwork for concrete	104260	1 piece	1000 mm	0,7 mm	260 mm	Steel	DX51
Metal formwork for concrete	104280	1 piece	1000 mm	0,7 mm	280 mm	Steel	DX51
