Metal formwork for concrete

An edge box for difficult shapes or recesses in cast-in-place floors. The edge box has multiple fold seams which allows the profile to be easily adapted to the situation.

Height

Details & dimensions

Article

Article number104200

EAN code8714318035983

Packaging

EAN code8714318035983

Packaging1 piece

Length1200 mm

Width200 mm

Height2 mm

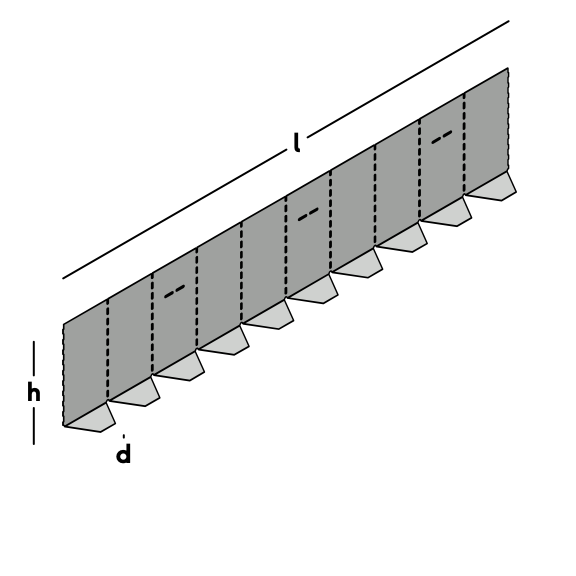

Dimensions

Metal formwork for concrete

Length1000 mm

Thickness0,7 mm

Height200 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 3

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Lengte	Dikte	Hoogte	Vloerhoogte	Materiaal	Staalkwaliteit
Metalen vouwbekisting	104150	1 piece	1000 mm	0,7 mm	150 mm	150 mm	Staal	DX51
Metalen vouwbekisting	104170	1 piece	1000 mm	0,7 mm	170 mm	170 mm	Staal	DX51
Metalen vouwbekisting	104190	1 piece	1000 mm	0,7 mm	190 mm	190 mm	Staal	DX51
Metalen vouwbekisting	104200	1 piece	1000 mm	0,7 mm	200 mm	200 mm	Staal	DX51
Metalen vouwbekisting	104210	1 piece	1000 mm	0,7 mm	210 mm	210 mm	Staal	DX51
Metalen vouwbekisting	104220	1 piece	1000 mm	0,7 mm	220 mm	220 mm	Staal	DX51
Metalen vouwbekisting	104230	1 piece	1000 mm	0,7 mm	230 mm	230 mm	Staal	DX51
Metalen vouwbekisting	104240	1 piece	1000 mm	0,7 mm	240 mm	240 mm	Staal	DX51
Metalen vouwbekisting	104250	1 piece	1000 mm	0,7 mm	250 mm	250 mm	Staal	DX51
Metalen vouwbekisting	104260	1 piece	1000 mm	0,7 mm	260 mm	260 mm	Staal	DX51
Metalen vouwbekisting	104280	1 piece	1000 mm	0,7 mm	280 mm	280 mm	Staal	DX51
