Straight fixing band

Length

Width

Thickness

Material

RVS 304

Steel

Steel Quality

DX51

S350

Surface treatment

304

Details & dimensions

Article

Article number854526

EAN code8714318999636

Packaging

EAN code8714318999636

Packaging1 piece

Length450 mm

Width450 mm

Height60 mm

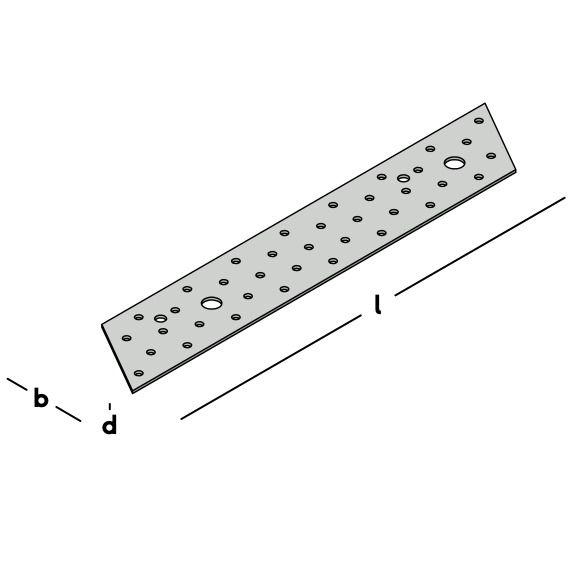

Dimensions

Straight fixing band

Length (l)6 mm

Width (b)60 mm

Thickness (d)2 mm

Hole pattern37/5-2/7-2/12

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Name	Article number	Packaging	Length	Width	Thickness	Slotted hole	Hole pattern	Type	Material	Steel Quality	Surface treatment
Straight fixing band	854515	1 piece	5 mm	40 mm	2 mm	-	21/5-2/7	-	Steel	DX51
Straight fixing band	854516	1 piece	6 mm	40 mm	2 mm	-	21/5-2/7	-	Steel	DX51
Straight fixing band	854517	1 piece	7 mm	40 mm	2 mm	-	21/5-2/7	-	Steel	DX51
Straight fixing band	854518	1 piece	8 mm	40 mm	2 mm	-	21/5-2/7	-	Steel	DX51
Straight fixing band	854525	1 piece	5 mm	60 mm	2 mm	-	37/5-2/7-2/12	-	Steel	DX51
Straight fixing band	854526	1 piece	6 mm	60 mm	2 mm	-	37/5-2/7-2/12	-	Steel	DX51
Straight fixing band	854528	1 piece	8 mm	60 mm	2 mm	-	3/5-2/5	-	Steel	DX51
Straight fixing band	854527	1 piece	7 mm	60 mm	2 mm	-	3/5-2/5	-	Steel	DX51
Straight fixing band	85453	1 piece	25 mm	25 mm	1 mm	14x4 mm	4/4-1/8,5	-	Steel	DX51
Straight fixing band	85454	1 piece	10 mm	20 mm	1 mm	-	2/4-1/6	-	Steel	DX51
Straight fixing band	854541	1 piece	10 mm	20 mm	1,5 mm	-	2/4-1/6	-	Steel	DX51
Straight fixing band	85455	1 piece	25 mm	20 mm	1 mm	-	2/4-1/6	-	Steel	DX51
Straight fixing band	854551	1 piece	25 mm	20 mm	1,5 mm	-	2/4-1/6	-	Steel	DX51
Straight fixing band	85456	1 piece	10 mm	30 mm	1,5 mm	14x4 mm	2/4-1/8	-	Steel	DX51
Straight fixing band	85457	1 piece	25 mm	30 mm	1,5 mm	14x4 mm	2/4-1/8	-	Steel	DX51
Straight fixing band	8545750	1 piece	50 mm	30 mm	1,5 mm	14x4 mm	2/4-1/8	-	Steel	DX51
Straight fixing band	85458	1 piece	50 mm	40 mm	2 mm	-	2/5-1/5	-	Steel	DX51
Straight fixing band	8545805	1 piece	5 mm	40 mm	1,5 mm	-	2/5-1/5-1/7	-	Steel	S350
Straight fixing band	8545814	1 piece	25 mm	40 mm	1,5 mm	-	2/5-1/5-1/7	-	Steel	S350
Straight fixing band	8545815	1 piece	50 mm	40 mm	1,5 mm	-	2/5-1/5-1/7	-	Steel	S350
Straight fixing band	8545825	1 piece	25 mm	40 mm	2 mm	-	2/5-1/5	-	Steel	DX51
Straight fixing band	8545905	1 piece	10 mm	60 mm	1,5 mm	-	3/5-2/5	-	Steel	S350
Straight fixing band	8545908	1 piece	25 mm	60 mm	1,5 mm	-	3/5-2/5	-	Steel	S350
Straight fixing band	8545925	1 piece	25 mm	60 mm	2 mm	-	3/5-2/5	-	Steel	DX51
Straight fixing band	854854	1 piece	10 mm	20 mm	1 mm	-	2/4-1/6	-	RVS 304	-	-
Straight fixing band	854855	1 piece	25 mm	20 mm	1 mm	-	2/4-1/6	-	RVS 304	-
	854860	1 piece	50 mm	20 mm	1 mm	-	2/4-1/6	-	RVS 304	-	-
Straight fixing band	854858	1 piece	10 mm	30 mm	1,5 mm	14x4 mm	2/4-1/8	-	RVS 304	-
Straight fixing band	854859	1 piece	25 mm	30 mm	1,5 mm	14x4 mm	2/4-1/8	-	RVS 304	-
Straight fixing band	861012	1 piece	12 mm	12 mm	0,8 mm	-	5	in blauwe cassette - vlak	Steel	DX51
Straight fixing band	861017	1 piece	10 mm	17 mm	0,8 mm	-	7	in blauwe cassette - vlak	Steel	DX51
Ondulated fixing band	861112	1 piece	10 mm	12 mm	0,8 mm	-	5	in blue cassette, wave	Steel	DX51
Ondulated fixing band	861117	1 piece	10 mm	17 mm	0,8 mm	-	7	in blue cassette, wave	Steel	DX51
Ondulated fixing band	861212	1 piece	10 mm	12 mm	0,8 mm	-	5	in black cassette, wave	RVS 304	-
