Back to the overview

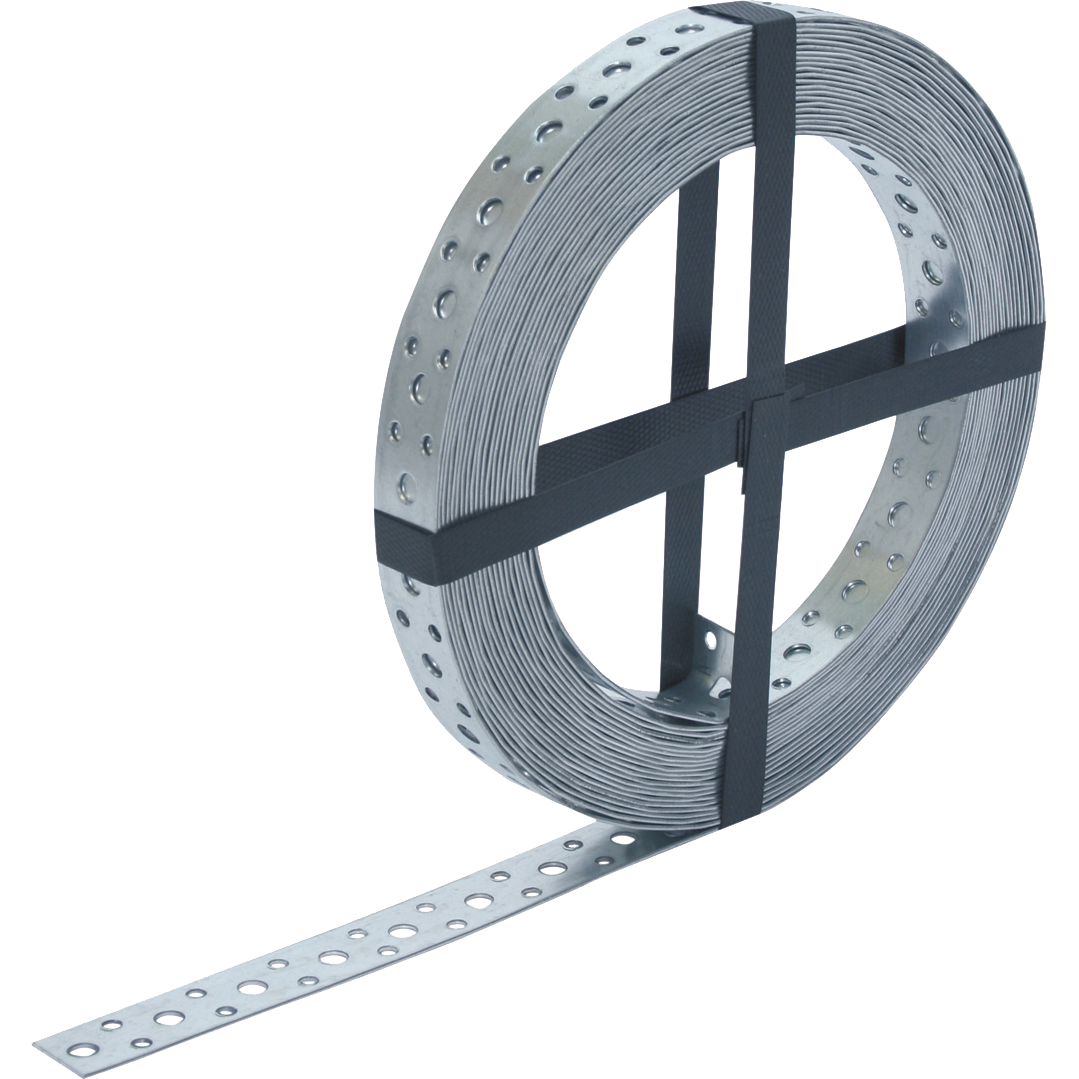

Straight fixing band

Name: Straight fixing band
SKU: 8545920

Length

Width

Thickness

Material

RVS 304

Steel

Steel Quality

DX51

S350

Details & dimensions

Article

Article number8545920

EAN code8714318137977

Packaging

EAN code8714318137977

Packaging1 piece

Dimensions

Straight fixing band

Length (l)10000 mm

Width (b)60 mm

Thickness (d)2 mm

Hole pattern3/5-2/5-1/7-1/12

MaterialSteel

Steel QualityDX51

Surface treatment SV-2

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Name	Article number	Packaging	Length	Width	Thickness	Slotted hole	Hole pattern	Type	Material	Steel Quality	Surface treatment
Straight fixing band	854515	1 piece	5000 mm	40 mm	2 mm	-	2/5-1/5-1/7	-	Steel	DX51	SV-2
Straight fixing band	854516	1 piece	6000 mm	40 mm	2 mm	-	2/5-1/5-1/7	-	Steel	DX51	SV-2
Straight fixing band	854517	1 piece	7000 mm	40 mm	2 mm	-	2/5-1/5-1/7	-	Steel	DX51	SV-2
Straight fixing band	854518	1 piece	8000 mm	40 mm	2 mm	-	2/5-1/5-1/7	-	Steel	DX51	SV-2
Straight fixing band	854525	1 piece	5000 mm	60 mm	2 mm	-	3/5-2/5-1/7-1/12	-	Steel	DX51	SV-2
Straight fixing band	854526	1 piece	6000 mm	60 mm	2 mm	-	3/5-2/5-1/7-1/12	-	Steel	DX51	SV-2
Straight fixing band	854528	1 piece	8000 mm	60 mm	2 mm	-	3/5-2/5-1/7-1/12	-	Steel	DX51	SV-2
Straight fixing band	854527	1 piece	7000 mm	60 mm	2 mm	-	3/5-2/5-1/7-1/12	-	Steel	DX51	SV-2
Straight fixing band	85453	1 piece	25000 mm	25 mm	1 mm	4x14 mm	4/4-1/8,5	-	Steel	DX51	SV-2
Straight fixing band	85454	1 piece	10000 mm	20 mm	1 mm	-	2/4-1/6	-	Steel	DX51	SV-2
Straight fixing band	854541	1 piece	10000 mm	20 mm	1,5 mm	-	2/4-1/6	-	Steel	DX51	SV-2
Straight fixing band	85455	1 piece	25000 mm	20 mm	1 mm	-	2/4-1/6	-	Steel	DX51	SV-2
Straight fixing band	854551	1 piece	25000 mm	20 mm	1,5 mm	-	2/4-1/6	-	Steel	DX51	SV-2
Straight fixing band	85456	1 piece	10000 mm	30 mm	1,5 mm	4x14 mm	2/4-1/8	-	Steel	DX51	SV-2
Straight fixing band	85457	1 piece	25000 mm	30 mm	1,5 mm	4x14 mm	2/4-1/8	-	Steel	DX51	SV-2
Straight fixing band	8545750	1 piece	50000 mm	30 mm	1,5 mm	4x14 mm	2/4-1/8	-	Steel	DX51	SV-2
Straight fixing band	85458	1 piece	50000 mm	40 mm	2 mm	-	2/5-1/5-1/7	-	Steel	DX51	SV-2
Straight fixing band	8545805	1 piece	5000 mm	40 mm	1,5 mm	-	2/5-1/5-1/7	-	Steel	S350	SV-2
Straight fixing band	8545814	1 piece	25000 mm	40 mm	1,5 mm	-	2/5-1/5-1/7	-	Steel	S350	SV-2
Straight fixing band	8545815	1 piece	50000 mm	40 mm	1,5 mm	-	2/5-1/5-1/7	-	Steel	S350	SV-2
Straight fixing band	8545825	1 piece	25000 mm	40 mm	2 mm	-	2/5-1/5-1/7	-	Steel	DX51	SV-2
Straight fixing band	8545905	1 piece	10000 mm	60 mm	1,5 mm	-	3/5-2/5-1/7-1/12	-	Steel	S350	SV-2
Straight fixing band	8545908	1 piece	25000 mm	60 mm	1,5 mm	-	3/5-2/5-1/7-1/12	-	Steel	S350	SV-2
Straight fixing band	8545920	1 piece	10000 mm	60 mm	2 mm	-	3/5-2/5-1/7-1/12	-	Steel	DX51	SV-2
Straight fixing band	8545925	1 piece	25000 mm	60 mm	2 mm	-	3/5-2/5-1/7-1/12	-	Steel	DX51	SV-2
Straight fixing band	854854	1 piece	10000 mm	20 mm	1 mm	-	2/4-1/6	-	RVS 304	-	-
Straight fixing band	854855	1 piece	25000 mm	20 mm	1 mm	-	2/4-1/6	-	RVS 304	-	-
	854860	1 piece	50000 mm	20 mm	1 mm	-	2/4-1/6	-	RVS 304	-	-
Straight fixing band	854858	1 piece	10000 mm	30 mm	1,5 mm	4x14 mm	2/4-1/8	-	RVS 304	-	-
Straight fixing band	854859	1 piece	25000 mm	30 mm	1,5 mm	4x14 mm	2/4-1/8	-	RVS 304	-	-
Straight fixing band	861012	1 piece	10000 mm	12 mm	0,8 mm	-	5	in blauwe cassette - vlak	Steel	DX51	SV-2
Straight fixing band	861017	1 piece	10000 mm	17 mm	0,8 mm	-	7	in blauwe cassette - vlak	Steel	DX51	SV-2
Ondulated fixing band	861112	1 piece	10000 mm	12 mm	0,8 mm	-	5	in blue cassette, wave	Steel	DX51	SV-2
Ondulated fixing band	861117	1 piece	10000 mm	17 mm	0,8 mm	-	7	in blue cassette, wave	Steel	DX51	SV-2
Ondulated fixing band	861212	1 piece	10000 mm	12 mm	0,8 mm	-	5	in black cassette, wave	RVS 304	-	-
