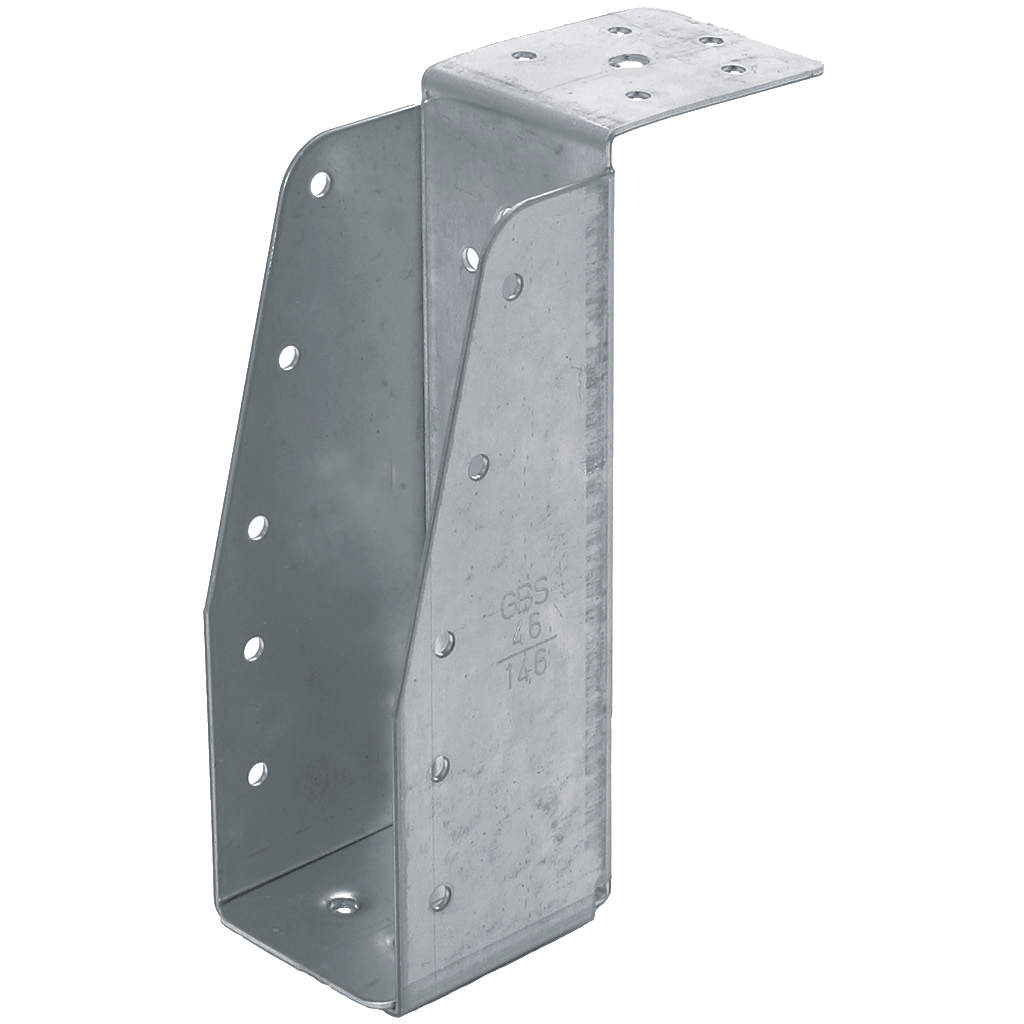

Joist Hanger GBS-LL

Beam carrier with long lip, for connecting joists to a main beam (nut beam). The beam carrier rests with the lip on the main beam and is fixed via the holes in the back. A crossbeam is then inserted and screwed in via the holes in the side.

Thickness

1,5 mm

1.5 mm

Wood Size width

Wood Size height

Material

RVS 304

Steel

Surface treatment

EPZ-3

Details & dimensions

Article

Article number093561

EAN code8714318066031

Packaging

EAN code8714318066048

Packaging10 per bunch

Length350 mm

Width210 mm

Height75 mm

Dimensions

Joist Hanger GBS-LL

Thickness (d)1.5 mm

Hole pattern23/4-3/9-2/14

Lip size50 mm

Wood Size width71 mm

Wood Size height196 mm

TypeGBS LL

MaterialRVS 304

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Thickness	Hole pattern	Lip size	Wood Size width	Wood Size height	Type	Material	Steel Quality	Surface treatment
Joist Hanger GBS-LL	09311	10 per bunch	1.5 mm	14/4-3/9-1/14	50 mm	46 mm	96 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	093112	10 per bunch	1.5 mm	14/4-3/9-1/14	50 mm	46 mm	96 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09312	10 per bunch	1.5 mm	16/4-3/9-1/14	50 mm	46 mm	121 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09313	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	46 mm	146 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	093131	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	46 mm	146 mm	GBS LL	RVS 304	-	-
Joist Hanger GBS-LL	093132	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	46 mm	146 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09315	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	46 mm	171 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09316	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	46 mm	196 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09321	10 per bunch	1.5 mm	14/4-3/9-1/14	50 mm	50 mm	100 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	093212	10 per bunch	1.5 mm	14/4-3/9-1/14	50 mm	50 mm	100 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09322	10 per bunch	1.5 mm	16/4-3/9-1/14	50 mm	50 mm	125 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09323	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	50 mm	150 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	093232	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	50 mm	150 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09325	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	50 mm	175 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09326	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	50 mm	200 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09332	10 per bunch	1.5 mm	18/4-3/9-1/14	50 mm	59 mm	121 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09333	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	59 mm	146 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09342	10 per bunch	1.5 mm	18/4-3/9-1/14	50 mm	63 mm	125 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09343	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	63 mm	150 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09344	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	63 mm	160 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09345	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	63 mm	175 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09346	10 per bunch	1.5 mm	22/4-3/9-1/14	50 mm	63 mm	200 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09347	10 per bunch	1.5 mm	22/4-3/9-1/14	50 mm	63 mm	225 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09352	10 per bunch	1.5 mm	19/4-3/9-1/14	50 mm	71 mm	121 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09353	10 per bunch	1.5 mm	19/4-3/9-1/14	50 mm	71 mm	146 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09355	10 per bunch	1.5 mm	23/4-3/9-2/14	50 mm	71 mm	171 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	093551	10 per bunch	1.5 mm	23/4-3/9-2/14	50 mm	71 mm	171 mm	GBS LL	RVS 304	-	-
Joist Hanger GBS-LL	093552	10 per bunch	1.5 mm	23/4-3/9-2/14	50 mm	71 mm	17 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09356	10 per bunch	1.5 mm	23/4-3/9-2/14	50 mm	71 mm	196 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	093561	10 per bunch	1.5 mm	23/4-3/9-2/14	50 mm	71 mm	196 mm	GBS LL	RVS 304	-	-
Joist Hanger GBS-LL	093562	10 per bunch	1.5 mm	23/4-3/9-2/14	50 mm	71 mm	196 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09357	10 per bunch	1.5 mm	27/4-4/9-2/14	50 mm	71 mm	221 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09358	10 per bunch	1.5 mm	27/4-4/9-2/14	50 mm	71 mm	246 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09359	10 per bunch	1.5 mm	27/4-4/9-2/14	50 mm	71 mm	271 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09362	10 per bunch	1.5 mm	19/4-3/9-1/14	50 mm	75 mm	125 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09363	10 per bunch	1.5 mm	19/4-3/9-1/14	50 mm	75 mm	150 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09365	10 per bunch	1.5 mm	23/4-3/9-2/14	50 mm	75 mm	175 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	093652	10 per bunch	1,5 mm	23/4-3/9-2/14	55 mm	75 mm	175 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09366	10 per bunch	1.5 mm	23/4-3/9-2/14	50 mm	75 mm	200 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09367	10 per bunch	1.5 mm	27/4-4/9-2/14	50 mm	75 mm	225 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	093672	10 per bunch	1,5 mm	27/4-4/9-2/14	55 mm	75 mm	225 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09368	10 per bunch	1.5 mm	27/4-4/9-2/14	50 mm	75 mm	250 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09369	10 per bunch	1.5 mm	27/4-4/9-2/14	50 mm	75 mm	275 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09376	10 per bunch	1.5 mm	23/4-2/9-2/14	50 mm	96 mm	196 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09377	10 per bunch	1.5 mm	25/4-2/9-2/14	50 mm	96 mm	221 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09378	10 per bunch	1.5 mm	25/4-2/9-2/14	50 mm	96 mm	246 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09386	10 per bunch	1.5 mm	23/4-2/9-2/14	50 mm	100 mm	200 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09387	10 per bunch	1.5 mm	25/4-2/9-2/14	50 mm	100 mm	225 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09388	10 per bunch	1.5 mm	25/4-2/9-2/14	50 mm	100 mm	250 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09334	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	59 mm	156 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	093341	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	59 mm	156 mm	GBS LL	RVS 304	-	-
Joist Hanger GBS-LL	093342	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	59 mm	156 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09335	10 per bunch	1.5 mm	20/4-3/9-1/14	50 mm	59 mm	171 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09336	10 per bunch	1.5 mm	22/4-3/9-1/14	50 mm	59 mm	196 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	09337	10 per bunch	1.5 mm	22/4-3/9-1/14	50 mm	59 mm	221 mm	GBS LL	Steel	DX51
Joist Hanger GBS-LL	093772	10 per bunch	1,5 mm	25/4-2/9-2/14	55 mm	96 mm	221 mm	GBS LL	Steel	DX51
Joist Hanger stairwell	094341	10 per bunch	1.5 mm	17/4-2/9-1/14-4/5-1/13	50 mm	59 mm	156 mm	GBS LL	Steel	DX51
