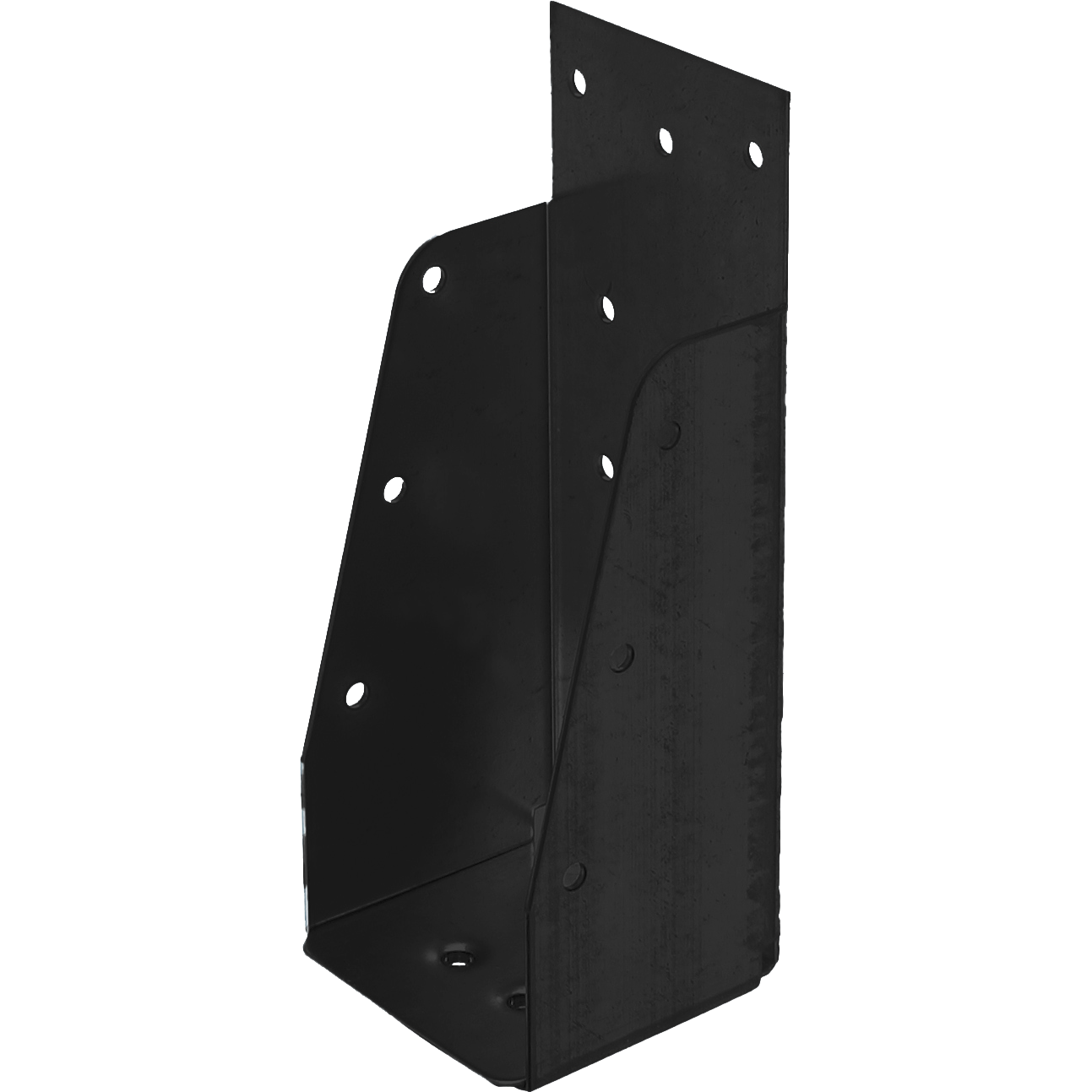

Joist Hanger GBS-ZL

Beam carrier for connecting joists directly to a wall. The beam carrier is fixed via the holes in the back. A beam is then inserted, which can be fixed via the holes in the side of the beam carrier.

Wood Size width

Wood Size height

Surface treatment

EPZ-3

SV-2

Details & dimensions

Article

Article number095132

EAN code8714318082420

Packaging

EAN code8714318084585

Packaging10 per bunch

Length284 mm

Width160 mm

Height53 mm

Dimensions

Joist Hanger GBS-ZL

Thickness1,5 mm

Hole pattern13/4-2/9-1/14

Wood Size width46 mm

Wood Size height146 mm

MaterialSteel

Steel QualityDX51

Surface treatment EPZ-3

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 4

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Thickness	Hole pattern	Wood Size width	Wood Size height	Material	Steel Quality
Joist Hanger GBS-ZL	09511	10 per bunch	1,5 mm	9/4-2/9-1/14	46 mm	96 mm	Steel	DX51
Joist Hanger GBS-ZL	095112	10 per bunch	1,5 mm	9/4-2/9-1/14	46 mm	96 mm	Steel	DX51
Joist Hanger GBS-ZL	09512	10 per bunch	1,5 mm	11/4-2/9-1/14	46 mm	121 mm	Steel	DX51
Joist Hanger GBS-ZL	09513	10 per bunch	1,5 mm	13/4-2/9-1/14	46 mm	146 mm	Steel	DX51
Joist Hanger GBS-ZL	095132	10 per bunch	1,5 mm	13/4-2/9-1/14	46 mm	146 mm	Steel	DX51
Joist Hanger GBS-ZL	09515	10 per box	1,5 mm	17/4-2/9-1/14	46 mm	171 mm	Steel	DX51
Joist Hanger GBS-ZL	09516	10 per box	1,5 mm	17/4-2/9-1/14	46 mm	196 mm	Steel	DX51
Joist Hanger GBS-ZL	09521	10 per bunch	1,5 mm	9/4-2/9-1/14	50 mm	100 mm	Steel	DX51
Joist Hanger GBS-ZL	095212	10 per bunch	1,5 mm	9/4-2/9-1/14	50 mm	100 mm	Steel	DX51
Joist Hanger GBS-ZL	09522	10 per box	1,5 mm	11/4-2/9-1/14	50 mm	125 mm	Steel	DX51
Joist Hanger GBS-ZL	09523	10 per bunch	1,5 mm	13/4-2/9-1/14	50 mm	150 mm	Steel	DX51
Joist Hanger GBS-ZL	095232	10 per bunch	1,5 mm	13/4-2/9-1/14	50 mm	150 mm	Steel	DX51
Joist Hanger GBS-ZL	09525	10 per box	1,5 mm	17/4-2/9-1/14	50 mm	175 mm	Steel	DX51
Joist Hanger GBS-ZL	09526	10 per box	1,5 mm	17/4-2/9-1/14	50 mm	200 mm	Steel	DX51
Joist Hanger GBS-ZL	09532	10 per bunch	1,5 mm	12/4-2/9-1/14	59 mm	121 mm	Steel	DX51
Joist Hanger GBS-ZL	09533	10 per bunch	1,5 mm	15/4-2/9-1/14	59 mm	146 mm	Steel	DX51
Joist Hanger GBS-ZL	09534	10 per bunch	1,5 mm	14/4-2/9-1/14	59 mm	156 mm	Steel	DX51
Joist Hanger GBS-ZL	09535	10 per bunch	1,5 mm	17/4-2/9-1/14	59 mm	171 mm	Steel	DX51
Joist Hanger GBS-ZL	09536	10 per box	1,5 mm	17/4-2/9-1/14	59 mm	196 mm	Steel	DX51
Joist Hanger GBS-ZL	09537	10 per box	1,5 mm	19/4-2/9-1/14	59 mm	221 mm	Steel	DX51
Joist Hanger GBS-ZL	09542	10 per box	1,5 mm	12/4-2/9-1/14	63 mm	125 mm	Steel	DX51
Joist Hanger GBS-ZL	09543	10 per bunch	1,5 mm	15/4-2/9-1/14	63 mm	150 mm	Steel	DX51
Joist Hanger GBS-ZL	09544	10 per bunch	1,5 mm	14/4-2/9-1/14	63 mm	160 mm	Steel	DX51
Joist Hanger GBS-ZL	09545	10 per bunch	1,5 mm	17/4-2/9-1/14	63 mm	175 mm	Steel	DX51
Joist Hanger GBS-ZL	095452	10 per bunch	1,5 mm	17/4-2/9-1/14	63 mm	175 mm	Steel	DX51
Joist Hanger GBS-ZL	09546	10 per box	1,5 mm	17/4-2/9-1/14	63 mm	200 mm	Steel	DX51
Joist Hanger GBS-ZL	09547	10 per box	1,5 mm	19/4-2/9-1/14	63 mm	225 mm	Steel	DX51
Joist Hanger GBS-ZL	09553	10 per bunch	1,5 mm	16/4-2/9-1/14	71 mm	146 mm	Steel	DX51
Joist Hanger GBS-ZL	095532	10 per bunch	1,5 mm	16/4-2/9-1/14	71 mm	146 mm	Steel	DX51
Joist Hanger GBS-ZL	09555	10 per bunch	1,5 mm	16/4-2/9-1/14	71 mm	171 mm	Steel	DX51
Joist Hanger GBS-ZL	095552	10 per bunch	1,5 mm	16/4-2/9-1/14	71 mm	171 mm	Steel	DX51
Joist Hanger GBS-ZL	09556	10 per bunch	1,5 mm	20/4-2/9-2/14	71 mm	196 mm	Steel	DX51
Joist Hanger GBS-ZL	09557	10 per bunch	1,5 mm	20/4-2/9-2/14	71 mm	221 mm	Steel	DX51
Joist Hanger GBS-ZL	09558	10 per box	1,5 mm	24/4-3/9-2/14	71 mm	246 mm	Steel	DX51
Joist Hanger GBS-ZL	09559	10 per box	1,5 mm	24/4-3/9-2/14	71 mm	271 mm	Steel	DX51
Joist Hanger GBS-ZL	09563	10 per bunch	1,5 mm	16/4-2/9-1/14	75 mm	150 mm	Steel	DX51
Joist Hanger GBS-ZL	09565	10 per bunch	1,5 mm	16/4-2/9-1/14	75 mm	175 mm	Steel	DX51
Joist Hanger GBS-ZL	09566	10 per bunch	1,5 mm	20/4-2/9-2/14	75 mm	200 mm	Steel	DX51
Joist Hanger GBS-ZL	09567	10 per bunch	1,5 mm	20/4-2/9-2/14	75 mm	225 mm	Steel	DX51
Joist Hanger GBS-ZL	09569	10 per box	1,5 mm	24/4-3/9-2/14	75 mm	275 mm	Steel	DX51
Joist Hanger GBS-ZL	09568	10 per box	1,5 mm	24/4-3/9-2/14	75 mm	250 mm	Steel	DX51
Joist Hanger GBS-ZL	09576	10 per box	1,5 mm	18/4-2/9-2/14	96 mm	196 mm	Steel	DX51
Joist Hanger GBS-ZL	09577	10 per box	1,5 mm	20/4-2/9-2/14	96 mm	221 mm	Steel	DX51
Joist Hanger GBS-ZL	09578	10 per box	1,5 mm	22/4-2/9-2/14	96 mm	246 mm	Steel	DX51
Joist Hanger GBS-ZL	09586	10 per box	1,5 mm	18/4-2/9-2/14	100 mm	200 mm	Steel	DX51
Joist Hanger GBS-ZL	09587	10 per bunch	1,5 mm	20/4-2/9-2/14	100 mm	225 mm	Steel	DX51
Joist Hanger GBS-ZL	09588	10 per box	1,5 mm	22/4-2/9-2/14	100 mm	250 mm	Steel	DX51
Joist Hanger GBS-ZL	09501	10 per bunch	1,5 mm	8/5-1/9-1/14	38 mm	89 mm	Steel	DX51
Joist Hanger GBS-ZL	09502	1 piece	1,5 mm	13/5-2/9-1/14	38 mm	120 mm	Steel	DX51
Joist Hanger GBS-ZL	09503	10 per bunch	1,5 mm	15/5-2/9-1/14	38 mm	140 mm	Steel	DX51
Joist Hanger GBS-ZL	09504	10 per bunch	1,5 mm	17/5-2/9-1/14	38 mm	170 mm	Steel	DX51
Joist Hanger GBS-ZL	09505	10 per bunch	1,5 mm	17/5-2/9-1/14	38 mm	184 mm	Steel	DX51
Joist Hanger GBS-ZL	09506	10 per bunch	1,5 mm	17/5-2/9-1/14	38 mm	235 mm	Steel	DX51
Joist Hanger GBS-ZL	09507	10 per bunch	1,5 mm	17/5-2/9-1/14	38 mm	285 mm	Steel	DX51
