Joist Hanger GBS-ZL

Beam carrier for connecting joists directly to a wall. The beam carrier is fixed via the holes in the back. A beam is then inserted, which can be fixed via the holes in the side of the beam carrier.

Wood Size width

Wood Size height

Surface treatment

EPZ-3

SV-2

Details & dimensions

Article

Article number09542

EAN code8714318042745

Packaging

EAN code8714318063931

Packaging10 per box

Length330 mm

Width230 mm

Height130 mm

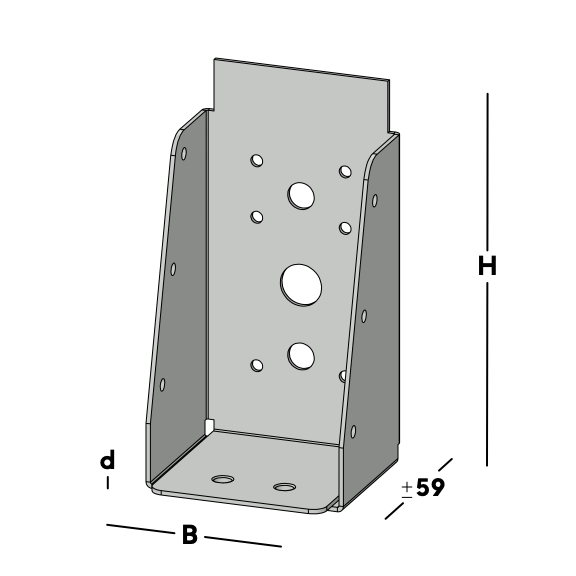

Dimensions

Joist Hanger GBS-ZL

Thickness (d)1,5 mm

Hole pattern12/4-2/9-1/14

Wood Size width63 mm

Wood Size height125 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 4

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Dikte	Gatenpatroon	Houtmaat breedte	Houtmaat hoogte	Materiaal	Staalkwaliteit
Balkdrager GBS ZL	09511	10 per bunch	1,5 mm	9/4-2/9-1/14	46 mm	96 mm	Staal	DX51
Balkdrager GBS ZL	095112	10 per bunch	1,5 mm	9/4-2/9-1/14	46 mm	96 mm	Staal	DX51
Balkdrager GBS ZL	09512	10 per bunch	1,5 mm	11/4-2/9-1/14	46 mm	121 mm	Staal	DX51
Balkdrager GBS ZL	09513	10 per bunch	1,5 mm	13/4-2/9-1/14	46 mm	146 mm	Staal	DX51
Balkdrager GBS ZL	095132	10 per bunch	1,5 mm	13/4-2/9-1/14	46 mm	146 mm	Staal	DX51
Balkdrager GBS ZL	09515	10 per box	1,5 mm	17/4-2/9-1/14	46 mm	171 mm	Staal	DX51
Balkdrager GBS ZL	09516	10 per box	1,5 mm	17/4-2/9-1/14	46 mm	196 mm	Staal	DX51
Balkdrager GBS ZL	09521	10 per bunch	1,5 mm	9/4-2/9-1/14	50 mm	100 mm	Staal	DX51
Balkdrager GBS ZL	095212	10 per bunch	1,5 mm	9/4-2/9-1/14	50 mm	100 mm	Staal	DX51
Balkdrager GBS ZL	09522	10 per box	1,5 mm	11/4-2/9-1/14	50 mm	125 mm	Staal	DX51
Balkdrager GBS ZL	09523	10 per bunch	1,5 mm	13/4-2/9-1/14	50 mm	150 mm	Staal	DX51
Balkdrager GBS ZL	095232	10 per bunch	1,5 mm	13/4-2/9-1/14	50 mm	150 mm	Staal	DX51
Balkdrager GBS ZL	09525	10 per box	1,5 mm	17/4-2/9-1/14	50 mm	175 mm	Staal	DX51
Balkdrager GBS ZL	09526	10 per box	1,5 mm	17/4-2/9-1/14	50 mm	200 mm	Staal	DX51
Balkdrager GBS ZL	09532	10 per bunch	1,5 mm	12/4-2/9-1/14	59 mm	121 mm	Staal	DX51
Balkdrager GBS ZL	09533	10 per bunch	1,5 mm	15/4-2/9-1/14	59 mm	146 mm	Staal	DX51
Balkdrager GBS ZL	09534	10 per bunch	1,5 mm	14/4-2/9-1/14	59 mm	156 mm	Staal	DX51
Balkdrager GBS ZL	09535	10 per bunch	1,5 mm	17/4-2/9-1/14	59 mm	171 mm	Staal	DX51
Balkdrager GBS ZL	09536	10 per box	1,5 mm	17/4-2/9-1/14	59 mm	196 mm	Staal	DX51
Balkdrager GBS ZL	09537	10 per box	1,5 mm	19/4-2/9-1/14	59 mm	221 mm	Staal	DX51
Balkdrager GBS ZL	09542	10 per box	1,5 mm	12/4-2/9-1/14	63 mm	125 mm	Staal	DX51
Balkdrager GBS ZL	09543	10 per bunch	1,5 mm	15/4-2/9-1/14	63 mm	150 mm	Staal	DX51
Balkdrager GBS ZL	09544	10 per bunch	1,5 mm	15/4-2/9-1/14	63 mm	160 mm	Staal	DX51
Balkdrager GBS ZL	09545	10 per bunch	1,5 mm	17/4-2/9-1/14	63 mm	175 mm	Staal	DX51
Balkdrager GBS ZL	095452	10 per bunch	1,5 mm	17/4-2/9-1/14	63 mm	175 mm	Staal	DX51
Balkdrager GBS ZL	09546	10 per box	1,5 mm	17/4-2/9-1/14	63 mm	200 mm	Staal	DX51
Balkdrager GBS ZL	09547	10 per box	1,5 mm	19/4-2/9-1/14	63 mm	225 mm	Staal	DX51
Balkdrager GBS ZL	09553	10 per bunch	1,5 mm	16/4-2/9-1/14	71 mm	146 mm	Staal	DX51
Balkdrager GBS ZL	095532	10 per bunch	1,5 mm	16/4-2/9-1/14	71 mm	146 mm	Staal	DX51
Balkdrager GBS ZL	09555	10 per bunch	1,5 mm	16/4-2/9-1/14	71 mm	171 mm	Staal	DX51
Balkdrager GBS ZL	095552	10 per bunch	1,5 mm	16/4-2/9-1/14	71 mm	171 mm	Staal	DX51
Balkdrager GBS ZL	09556	10 per bunch	1,5 mm	20/4-2/9-2/14	71 mm	196 mm	Staal	DX51
Balkdrager GBS ZL	09557	10 per bunch	1,5 mm	20/4-2/9-2/14	71 mm	221 mm	Staal	DX51
Balkdrager GBS ZL	09558	10 per box	1,5 mm	24/4-3/9-2/14	71 mm	246 mm	Staal	DX51
Balkdrager GBS ZL	09559	10 per box	1,5 mm	24/4-3/9-2/14	71 mm	271 mm	Staal	DX51
Balkdrager GBS ZL	09563	10 per bunch	1,5 mm	16/4-2/9-1/14	75 mm	150 mm	Staal	DX51
Balkdrager GBS ZL	09565	10 per bunch	1,5 mm	16/4-2/9-1/14	75 mm	175 mm	Staal	DX51
Balkdrager GBS ZL	09566	10 per bunch	1,5 mm	20/4-2/9-2/14	75 mm	200 mm	Staal	DX51
Balkdrager GBS ZL	09567	10 per bunch	1,5 mm	20/4-2/9-2/14	75 mm	225 mm	Staal	DX51
Balkdrager GBS ZL	09569	10 per box	1,5 mm	24/4-3/9-2/14	75 mm	275 mm	Staal	DX51
Balkdrager GBS ZL	09568	10 per box	1,5 mm	24/4-3/9-2/14	75 mm	250 mm	Staal	DX51
Balkdrager GBS ZL	09576	10 per box	1,5 mm	18/4-2/9-2/14	96 mm	196 mm	Staal	DX51
Balkdrager GBS ZL	09577	10 per box	1,5 mm	20/4-2/9-2/14	96 mm	221 mm	Staal	DX51
Balkdrager GBS ZL	09578	10 per box	1,5 mm	22/4-2/9-2/14	96 mm	246 mm	Staal	DX51
Balkdrager GBS ZL	09586	10 per box	1,5 mm	18/4-2/9-2/14	100 mm	200 mm	Staal	DX51
Balkdrager GBS ZL	09587	10 per bunch	1,5 mm	20/4-2/9-2/14	100 mm	225 mm	Staal	DX51
Balkdrager GBS ZL	09588	10 per box	1,5 mm	22/4-2/9-2/14	100 mm	250 mm	Staal	DX51
Balkdrager GBS ZL	09501	10 per bunch	1,5 mm	8/5-1/9-1/14	38 mm	89 mm	Staal	DX51
Balkdrager GBS ZL	09502	1 piece	1,5 mm	13/5-2/9-1/14	38 mm	120 mm	Staal	DX51
Balkdrager GBS ZL	09503	10 per bunch	1,5 mm	15/5-2/9-1/14	38 mm	140 mm	Staal	DX51
Balkdrager GBS ZL	09504	10 per bunch	1,5 mm	17/5-2/9-1/14	38 mm	170 mm	Staal	DX51
Balkdrager GBS ZL	09505	10 per bunch	1,5 mm	17/5-2/9-1/14	38 mm	184 mm	Staal	DX51
Balkdrager GBS ZL	09506	10 per bunch	1,5 mm	17/5-2/9-1/14	38 mm	235 mm	Staal	DX51
Balkdrager GBS ZL	09507	10 per bunch	1,5 mm	17/5-2/9-1/14	38 mm	285 mm	Staal	DX51
