Kramplaat

Double sided timber connector

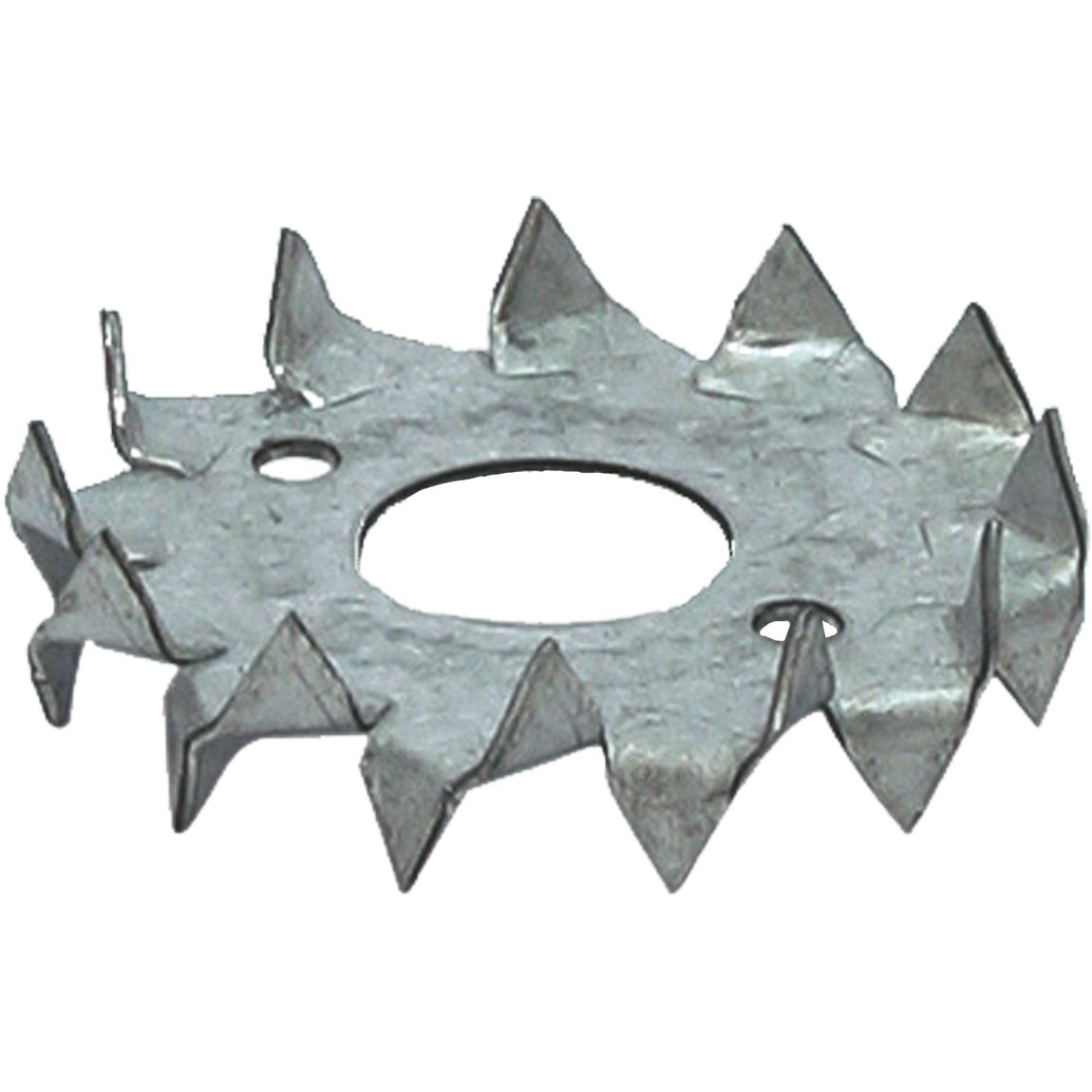

A round plate with pointed teeth on both sides and a mounting hole in the centre. Suitable for making a strong connection between two wooden parts that are fastened together with a bolt and nut or a threaded rod and nuts.

Thickness
Height
Diameter
Surface treatment
SV
TV

Details & dimensions

Article

Article number07282
EAN code8714318006778

Packaging

EAN code8714318106195
Packaging200 per box
Length330 mm
Width230 mm
Height130 mm

Dimensions

Double sided timber connector

Thickness (d)1 mm
Height (h)12 mm
Diameter50 mm
Hole pattern1/17
MaterialSteel
Steel QualityDX51
Surface treatmentSV

Downloads

Drawings and models in 2D and 3D
