Double sided timber connector

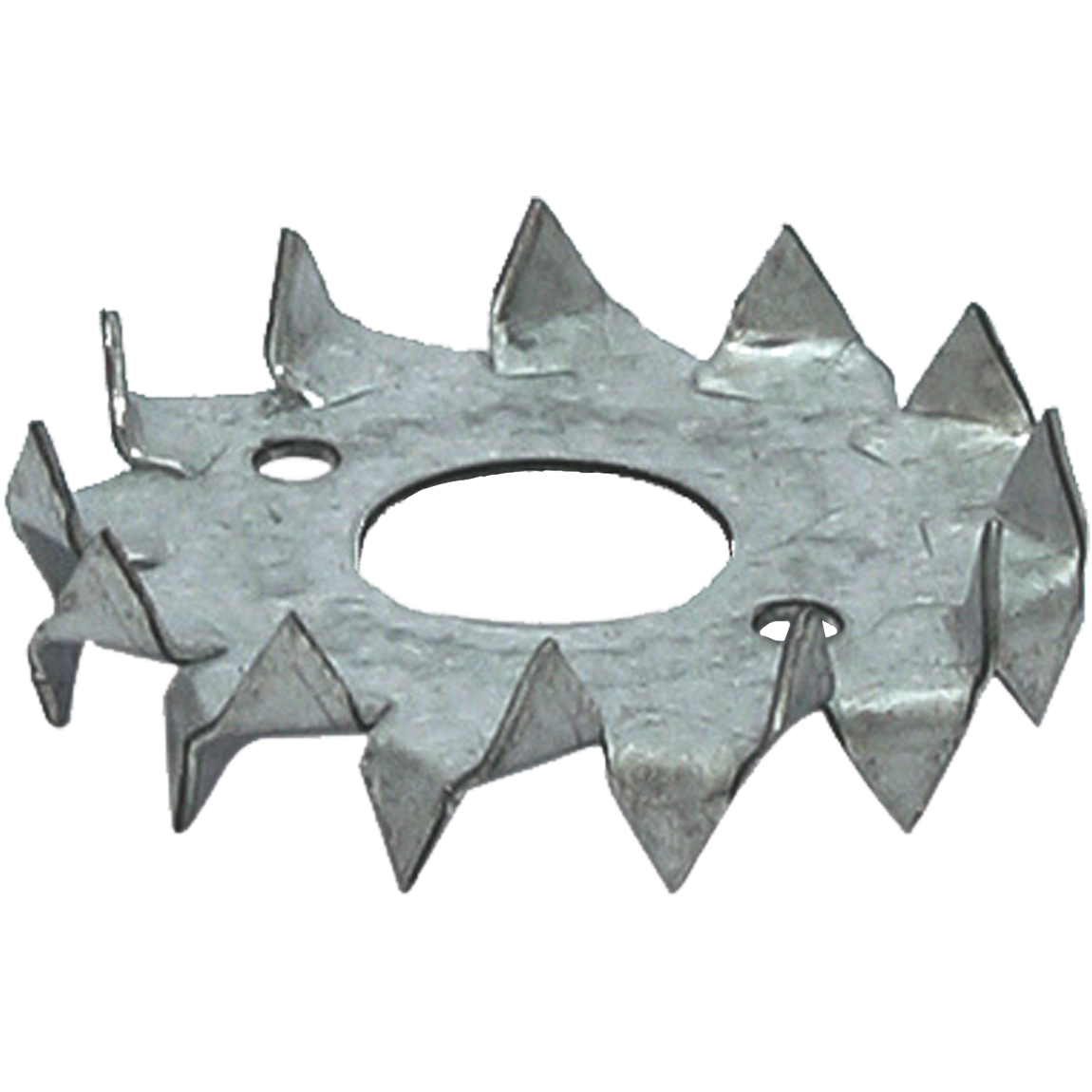

A round plate with pointed teeth on both sides and a mounting hole in the centre. Suitable for making a strong connection between two wooden parts that are fastened together with a bolt and nut or a threaded rod and nuts.

Thickness

Height

Diameter

Surface treatment

Details & dimensions

Article

Article number07284

EAN code8714318040956

Packaging

EAN code8714318106218

Packaging100 per box

Length330 mm

Width230 mm

Height170 mm

Dimensions

Double sided timber connector

Thickness (d)1,25 mm

Height (h)19,5 mm

Diameter75 mm

Hole pattern1/26

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Dikte	Hoogte	Diameter Ø	Gatenpatroon	Materiaal	Staalkwaliteit
Kramplaten	07294	150 per box	1,2 mm	16 mm	62 mm	1/12,5	Staal	DX51
Kramplaten	07291	300 per box	1 mm	12 mm	50 mm	1/11	Staal	DX51
Kramplaten	07286	25 per box	1,5 mm	30 mm	117 mm	1/48	Staal	DX51
Kramplaten	07285	40 per box	1,35 mm	24 mm	95 mm	1/33	Staal	DX51
Kramplaten	07284	100 per box	1,25 mm	19,5 mm	75 mm	1/26	Staal	DX51
Kramplaten	07283	100 per box	1,3 mm	16 mm	62 mm	1/21	Staal	DX51
Kramplaten	07282	200 per box	1 mm	12 mm	50 mm	1/17	Staal	DX51
