Nailing gusset

Rectangular coupling plate with a regular pattern of reinforcement beads and nail holes. Suitable for connecting thicker or wider wood parts by nailing flush to each other.

Length

Width

75 mm

106 mm

150 mm

Details & dimensions

Article

Article number072550

EAN code8714318040802

Packaging

EAN code8714318116897

Packaging25 per box

Length335 mm

Width140 mm

Height63 mm

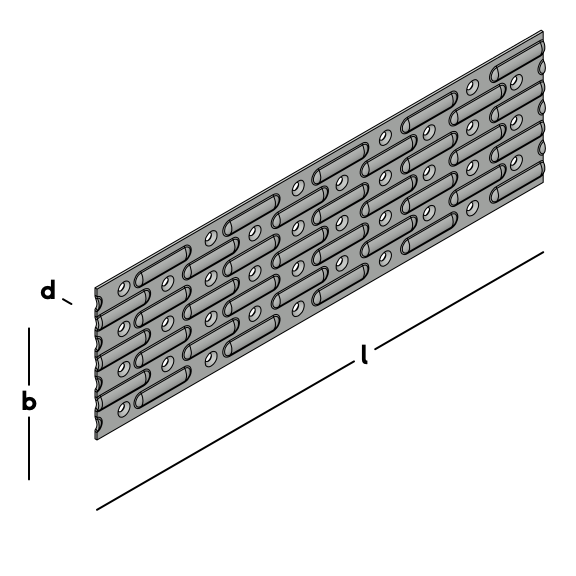

Dimensions

Nailing gusset

Length (l)256 mm

Width (b)75 mm

Thickness (d)1.25 mm

Hole pattern35/4

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Width 1	Width 2	Thickness	Hole pattern	Material	Steel Quality
Nailing gusset	072510	100 per box	50 mm	75 mm	-	-	1.25 mm	7/4	Steel	DX51
Nailing gusset	072520	100 per box	106 mm	75 mm	-	-	1.25 mm	14/4	Steel	DX51
Nailing gusset	072530	50 per box	150 mm	75 mm	-	-	1.25 mm	21/4	Steel	DX51
Nailing gusset	072540	25 per box	200 mm	75 mm	-	-	1.25 mm	28/4	Steel	DX51
Nailing gusset	072550	25 per box	256 mm	75 mm	-	-	1.25 mm	35/4	Steel	DX51
Nailing gusset	072560	25 per box	300 mm	75 mm	-	-	1.25 mm	42/4	Steel	DX51
Nailing gusset	07261	100 per box	50 mm	106 mm	-	-	1.25 mm	10/4	Steel	DX51
Nailing gusset	072620	50 per box	106 mm	106 mm	-	-	1.25 mm	20/4	Steel	DX51
Nailing gusset	07263	100 per box	150 mm	106 mm	-	-	1.25 mm	30/4	Steel	DX51
Nailing gusset	07264	25 per box	200 mm	106 mm	-	-	1.25 mm	40/4	Steel	DX51
Nailing gusset	072650	25 per box	256 mm	106 mm	-	-	1.25 mm	50/4	Steel	DX51
Nailing gusset	07266	25 per box	300 mm	106 mm	-	-	1.25 mm	60/4	Steel	DX51
Nailing gusset	07271	50 per box	50 mm	150 mm	-	-	1.25 mm	15/4	Steel	DX51
Nailing gusset	072720	50 per box	106 mm	150 mm	-	-	1.25 mm	30/4	Steel	DX51
Nailing gusset	07273	50 per box	150 mm	150 mm	-	-	1.25 mm	45/4	Steel	DX51
Nailing gusset	07274	50 per box	200 mm	150 mm	-	-	1.25 mm	60/4	Steel	DX51
Nailing gusset	072750	25 per box	256 mm	150 mm	-	-	1.25 mm	75/4	Steel	DX51
Nailing gusset	07276	25 per box	300 mm	150 mm	-	-	1.25 mm	90/4	Steel	DX51
Nailing gusset angled	07277	25 per box	300 mm	-	30 mm	120 mm	1.25 mm	90/4	Steel	DX51
