Nailing gusset angled

The rectangular coupling plate has one converted side and a regular pattern of reinforcing grooves and nail holes. Suitable for nailing thicker or wider wood parts together flush.

Length

Width

75 mm

106 mm

150 mm

Details & dimensions

Article

Article number07277

EAN code8714318040918

Packaging

EAN code8714318105211

Packaging25 per box

Length340 mm

Width265 mm

Height75 mm

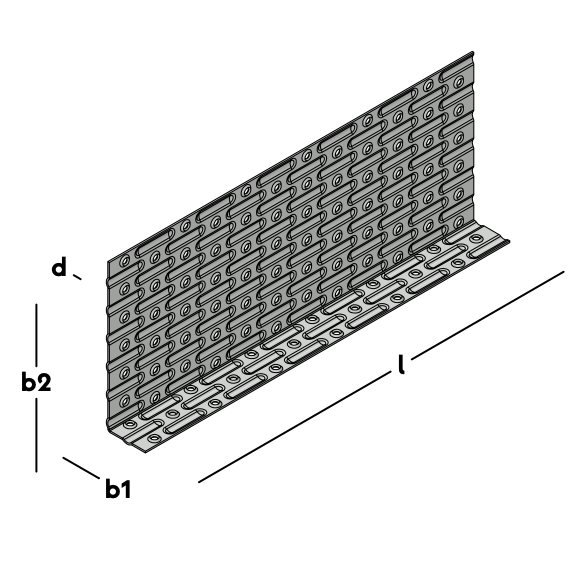

Dimensions

Nailing gusset angled

Length (l)300 mm

Width 1 (b1)30 mm

Width 2 (b2)120 mm

Thickness (d)1.25 mm

Hole pattern90/4

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Width 1	Width 2	Thickness	Hole pattern	Material	Steel Quality
Nailing gusset	072510	100 per box	50 mm	75 mm	-	-	1.25 mm	7/4	Steel	DX51
Nailing gusset	072520	100 per box	106 mm	75 mm	-	-	1.25 mm	14/4	Steel	DX51
Nailing gusset	072530	50 per box	150 mm	75 mm	-	-	1.25 mm	21/4	Steel	DX51
Nailing gusset	072540	25 per box	200 mm	75 mm	-	-	1.25 mm	28/4	Steel	DX51
Nailing gusset	072550	25 per box	256 mm	75 mm	-	-	1.25 mm	35/4	Steel	DX51
Nailing gusset	072560	25 per box	300 mm	75 mm	-	-	1.25 mm	42/4	Steel	DX51
Nailing gusset	07261	100 per box	50 mm	106 mm	-	-	1.25 mm	10/4	Steel	DX51
Nailing gusset	072620	50 per box	106 mm	106 mm	-	-	1.25 mm	20/4	Steel	DX51
Nailing gusset	07263	100 per box	150 mm	106 mm	-	-	1.25 mm	30/4	Steel	DX51
Nailing gusset	07264	25 per box	200 mm	106 mm	-	-	1.25 mm	40/4	Steel	DX51
Nailing gusset	072650	25 per box	256 mm	106 mm	-	-	1.25 mm	50/4	Steel	DX51
Nailing gusset	07266	25 per box	300 mm	106 mm	-	-	1.25 mm	60/4	Steel	DX51
Nailing gusset	07271	50 per box	50 mm	150 mm	-	-	1.25 mm	15/4	Steel	DX51
Nailing gusset	072720	50 per box	106 mm	150 mm	-	-	1.25 mm	30/4	Steel	DX51
Nailing gusset	07273	50 per box	150 mm	150 mm	-	-	1.25 mm	45/4	Steel	DX51
Nailing gusset	07274	50 per box	200 mm	150 mm	-	-	1.25 mm	60/4	Steel	DX51
Nailing gusset	072750	25 per box	256 mm	150 mm	-	-	1.25 mm	75/4	Steel	DX51
Nailing gusset	07276	25 per box	300 mm	150 mm	-	-	1.25 mm	90/4	Steel	DX51
Nailing gusset angled	07277	25 per box	300 mm	-	30 mm	120 mm	1.25 mm	90/4	Steel	DX51
