Trimming support bipartite

Beam carrier in two parts with side flange, for fixing joists against a wall or against another wooden beam. Because the carrier consists of two parts, it can be used for all kinds of (non-standard) wood sizes.

Height

Wood Size height

Details & dimensions

Article

Article number0788815

EAN code8714318133214

Packaging

EAN code8714318045487

Packaging25 per box

Length395 mm

Width295 mm

Height270 mm

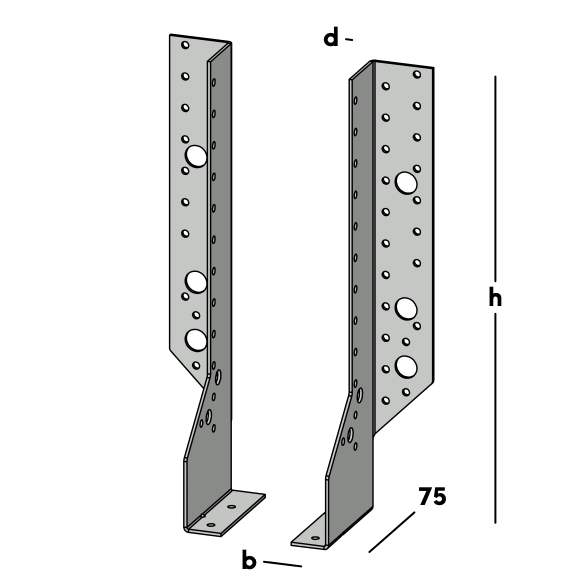

Dimensions

Trimming support bipartite

Width (b)22 mm

Thickness (d)2 mm

Height (h)285 mm

Hole pattern72/4,5-4/9-6/14

Wood Size height285 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 4

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Width	Thickness	Height	Hole pattern	Wood Size height	Material	Steel Quality
Trimming support bipartite	0788801	25 per box	22 mm	2 mm	85 mm	18/4,5-6/9-2/14	100 mm	Steel	DX51
Trimming support bipartite	0788803	25 per box	22 mm	2 mm	115 mm	26/4,5-6/9-4/14	125 mm	Steel	DX51
Trimming support bipartite	0788805	25 per box	22 mm	2 mm	143 mm	34/4,5-8/9-4/14	150 mm	Steel	DX51
Trimming support bipartite	0788807	25 per box	22 mm	2 mm	165 mm	38/4,5-8/9-6/14	175 mm	Steel	DX51
Trimming support bipartite	0788809	25 per box	22 mm	2 mm	195 mm	46/4,5-10/9-6/14	200 mm	Steel	DX51
Trimming support bipartite	0788811	25 per box	22 mm	2 mm	225 mm	52/4,5-10/9-8/14	225 mm	Steel	DX51
Trimming support bipartite	0788815	25 per box	22 mm	2 mm	285 mm	72/4,5-4/9-6/14	285 mm	Steel	DX51
Trimming support bipartite	0788813	25 per box	22 mm	2 mm	255 mm	60/4,5-10/9-8/14	255 mm	Steel	DX51
