Angle bracket

Corner that is mounted on the floor. Forms part of the Frame Adjustment Angle system which allows for the realization of adjustable window-floor connections.

Length 2

175 mm

180 mm

Thickness

4 mm

5 mm

Slotted hole

3/12x12-2/10x37 mm

4/12x12-2/10x37 mm

145x12 open mm

Steel Quality

DX51

S350

Surface treatment

Details & dimensions

Article

Article number0724820

EAN code8714318069391

Packaging

EAN code8714318069407

Packaging10 per box

Length260 mm

Width220 mm

Height65 mm

Dimensions

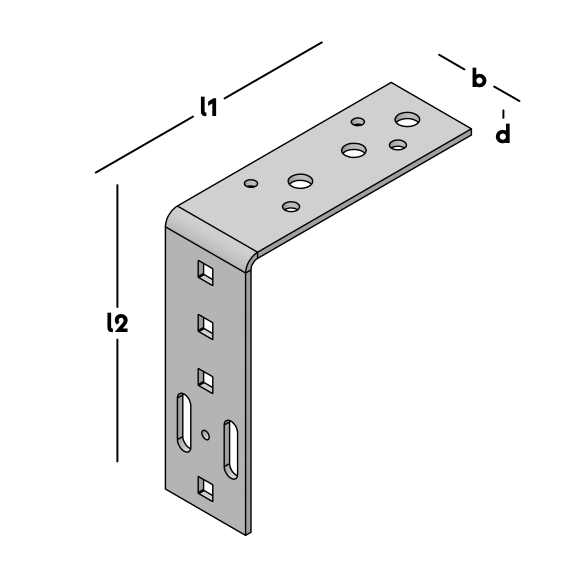

Angle bracket

Length 1 (l1)175 mm

Length 2 (l2)180 mm

Width (b)60 mm

Thickness (d)4 mm

Slotted hole3/12x12-2/10x37 mm

Hole pattern1/6-3/13

Square hole3/12x12 mm

MaterialSteel

Steel QualityS350

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Square hole	Material	Steel Quality
Angle bracket	0724831	10 per box	175 mm	175 mm	60 mm	5 mm	145x12 open mm	2/9-2/13	-	Steel	S350
Angle bracket	0724830	10 per box	175 mm	175 mm	60 mm	5 mm	145x12 open mm	2/9-2/13	-	Steel	DX51
Angle bracket	0724820	10 per box	175 mm	180 mm	60 mm	4 mm	3/12x12-2/10x37 mm	1/6-3/13	3/12x12 mm	Steel	S350
Angle bracket type A/C/D	0724810	10 per box	175 mm	180 mm	60 mm	5 mm	4/12x12-2/10x37 mm	1/6-3/13	4/12x12 mm	Steel	DX51
