Angle bracket

Name: Angle bracket
SKU: 0724831

Corner that is mounted on the floor. Forms part of the Frame Adjustment Angle system which allows for the realization of adjustable window-floor connections.

Length 2

175 mm

180 mm

Thickness

4 mm

5 mm

Slotted hole

4/12x12-2/10x37 mm

11x145 open mm

Steel Quality

DX51

S350

Surface treatment

SV-2

ZM-4

Details & dimensions

Article

Article number0724831

EAN code8714318066505

Packaging

EAN code8714318066512

Packaging10 per box

Length270 mm

Width220 mm

Height70 mm

Dimensions

Angle bracket

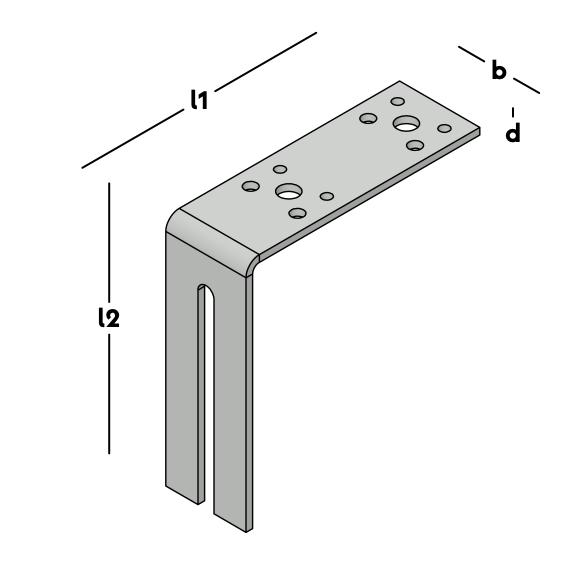

Length 1 (l1)175 mm

Length 2 (l2)175 mm

Width (b)60 mm

Thickness (d)5 mm

Slotted hole11x145 open mm

Hole pattern2/9-2/13

MaterialSteel

Steel QualityS350

Surface treatment ZM-4

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Square hole	Material	Steel Quality	Surface treatment
Angle bracket	0724831	10 per box	175 mm	175 mm	60 mm	5 mm	11x145 open mm	2/9-2/13	-	Steel	S350	ZM-4
Angle bracket	0724830	10 per box	175 mm	175 mm	60 mm	5 mm	11x145 open mm	2/9-2/13	-	Steel	DX51	SV-2
Angle bracket	0724820	10 per box	175 mm	180 mm	60 mm	4 mm	4/12x12-2/10x37 mm	1/6-3/13	3/12x12 mm	Steel	S350	ZM-4
Angle bracket type A/C/D	0724810	10 per box	175 mm	180 mm	60 mm	5 mm	4/12x12-2/10x37 mm	1/6-3/13	4/12x12 mm	Steel	DX51	SV-2
