Concrete angle bracket

Name: Concrete angle bracket
SKU: 0758766

Heavy corner anchor with a diagonal slotted hole that is primarily used for mounting window frames to lower lintels. The corner anchor has a diagonal slotted hole that allows for easy positioning.

Length 1

Length 2

Width

Thickness

Slotted hole

Steel Quality

Surface treatment

Details & dimensions

Article

Article number0758766

EAN code8714318022433

Packaging

EAN code8714318127701

Packaging25 per bag

Length340 mm

Width330 mm

Height130 mm

Dimensions

Concrete angle bracket

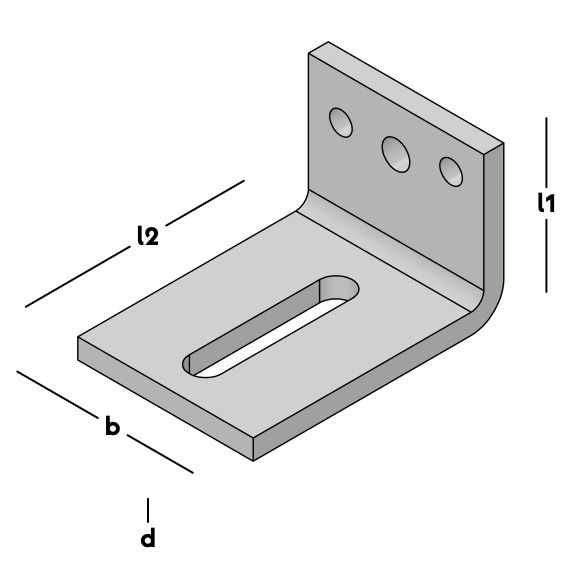

Length 1 (l1)60 mm

Length 2 (l2)100 mm

Width (b)70 mm

Thickness (d)8 mm

Slotted hole13x65 mm

Hole pattern2/9-1/11

MaterialSteel

Steel QualityS315

Surface treatment TV-3

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 12

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Material	Steel Quality	Surface treatment
Angle bracket	07241	25 per box	55 mm	105 mm	50 mm	5 mm	13x40 mm	4/6,5-1/11	Steel	DX51	SV-2
Concrete angle bracket	07242	50 per box	55 mm	80 mm	40 mm	4 mm	9x30 mm	2/6,5-1/9	Steel	S350	SV-2
Concrete angle bracket	07243	50 per box	30 mm	100 mm	60 mm	4 mm	13x40 mm	8/5,5	Steel	S350	SV-2
Angle bracket	072455	25 per box	60 mm	60 mm	60 mm	5 mm	4/9x25 mm	-	Steel	DX51	SV-2
Concrete angle bracket	07246	25 per box	65 mm	105 mm	60 mm	4 mm	13x40 mm	10/5,5-1/9	Steel	S350	SV-2
Concrete angle bracket	07247	25 per box	65 mm	155 mm	60 mm	4 mm	13x40 mm	13/5,5-2/9	Steel	S350	SV-2
Angle bracket	074460	25 per box	40 mm	115 mm	60 mm	5 mm	2/9x20 mm	3/9	Steel	S235	TV-3
Concrete angle bracket	0756643	30 per bag	40 mm	120 mm	60 mm	6 mm	13x65 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756646	30 per bag	40 mm	150 mm	60 mm	6 mm	13x65 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756647	30 per bag	40 mm	150 mm	60 mm	6 mm	17x70 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756666	30 per bag	60 mm	100 mm	60 mm	6 mm	13x65 mm	2/9-1/11	Steel	DX51	SV-2
Angle bracket	0756656	10 per bunch	50 mm	150 mm	110 mm	6 mm	13x65 mm	3/11	Steel	S350	ZM-4
Concrete angle bracket	0756667	30 per bag	60 mm	100 mm	60 mm	6 mm	17x70 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756676	30 per bag	70 mm	120 mm	60 mm	6 mm	13x65 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756677	30 per bag	70 mm	120 mm	60 mm	6 mm	17x70 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756696	30 per bag	90 mm	100 mm	60 mm	6 mm	13x65 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756697	30 per bag	90 mm	100 mm	60 mm	6 mm	17x70 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0758546	25 per bag	40 mm	150 mm	50 mm	8 mm	13x65 mm	1/11	Steel	S315	TV-3
Concrete angle bracket	0758566	25 per bag	60 mm	100 mm	50 mm	8 mm	13x65 mm	2/9-1/11	Steel	S315	TV-3
Concrete angle bracket	0758576	25 per bag	70 mm	120 mm	50 mm	8 mm	13x65 mm	2/9-1/11	Steel	S315	TV-3
Concrete angle bracket	0758746	25 per bag	40 mm	150 mm	70 mm	8 mm	13x65 mm	2/9-1/11	Steel	S315	TV-3
Concrete angle bracket	07587460	25 per bag	40 mm	150 mm	70 mm	8 mm	13x65 mm	2/9-1/11	Steel	S315	EV-2
Concrete angle bracket	0758747	25 per bag	40 mm	150 mm	70 mm	8 mm	17x70 mm	2/9-1/11	Steel	S315	TV-3
Concrete angle bracket	0758766	25 per bag	60 mm	100 mm	70 mm	8 mm	13x65 mm	2/9-1/11	Steel	S315	TV-3
