Pressure plate

Plastic pressure plate for raising anchors for facade or wall elements. Evenly distributed load of up to 6,500 kg. The pressure plate has a hole pattern corresponding to that of the GB floor frame strip.

Length

70 mm

100 mm

Width

70 mm

120 mm

Thickness

Press Load max

8000 kg

30000 kg

Details & dimensions

Article

Article number34703

EAN code8714318024260

Packaging

EAN code8714318030247

Packaging240 per bag

Length500 mm

Width450 mm

Height70 mm

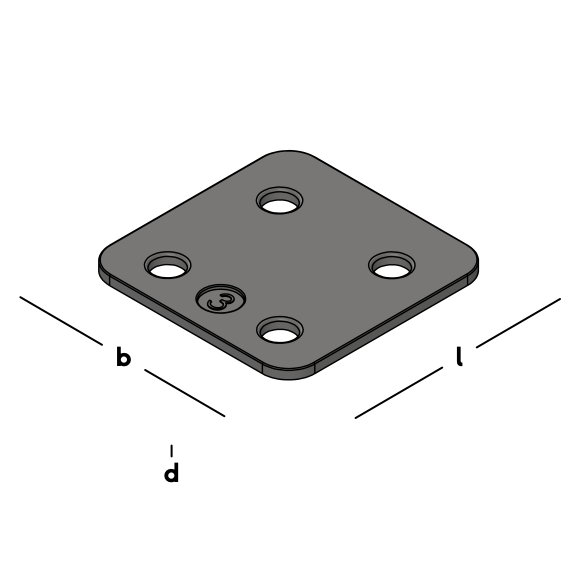

Dimensions

Pressure plate

Length (l)70 mm

Width (b)70 mm

Thickness (d)3 mm

Hole pattern4/9

Press Load max8000 kg

ColorBlack

MaterialPlastic

Material quality

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Press Load max	Color	Material
Pressure plate	34701	480 per bag	70 mm	70 mm	1 mm	4/9	8000 kg	Transparant	Plastic
Pressure plate	34702	240 per bag	70 mm	70 mm	2 mm	4/9	8000 kg	Orange	Plastic
Pressure plate	34703	240 per bag	70 mm	70 mm	3 mm	4/9	8000 kg	Black	Plastic
Pressure plate	34704	192 per bag	70 mm	70 mm	4 mm	4/9	8000 kg	Blue	Plastic
Pressure plate	34705	192 per bag	70 mm	70 mm	5 mm	4/9	8000 kg	Red	Plastic
Pressure plate	34706	192 per bag	70 mm	70 mm	6 mm	4/9	8000 kg	Transparant	Plastic
Pressure plate	34707	192 per bag	70 mm	70 mm	7 mm	4/9	8000 kg	Grey	Plastic
Pressure plate	34710	144 per bag	70 mm	70 mm	10 mm	4/9	8000 kg	Green	Plastic
Pressure plate	34715	48 per bag	70 mm	70 mm	15 mm	4/9	8000 kg	Orange	Plastic
Pressure plate	34720	48 per bag	70 mm	70 mm	20 mm	4/9	8000 kg	Blue	Plastic
Pressure plate	34730	48 per bag	70 mm	70 mm	30 mm	4/9	8000 kg	Black	Plastic
Pressure plate	349102	144 per bag	100 mm	120 mm	2 mm	4/11-1/14	30000 kg	Orange	Plastic
Pressure plate	349103	144 per bag	100 mm	120 mm	3 mm	4/11-1/14	30000 kg	Black	Plastic
Pressure plate	349105	96 per bag	100 mm	120 mm	5 mm	4/11-1/14	30000 kg	Red	Plastic
Pressure plate	349110	48 per bag	100 mm	120 mm	10 mm	4/11-1/14	30000 kg	Green	Plastic
