XL-Angle bracket

Heavy corner anchor, additionally reinforced with side ribs. Equipped with a versatile (slotted) hole pattern. Ideally suitable for anchoring heavy window frames.

Length 1

Length 2

Thickness

4 mm

5 mm

Slotted hole

Surface treatment

Details & dimensions

Article

Article number0732047

EAN code8714318077198

Packaging

EAN code8714318077204

Packaging15 per box

Length330 mm

Width255 mm

Height85 mm

Dimensions

XL-Angle bracket

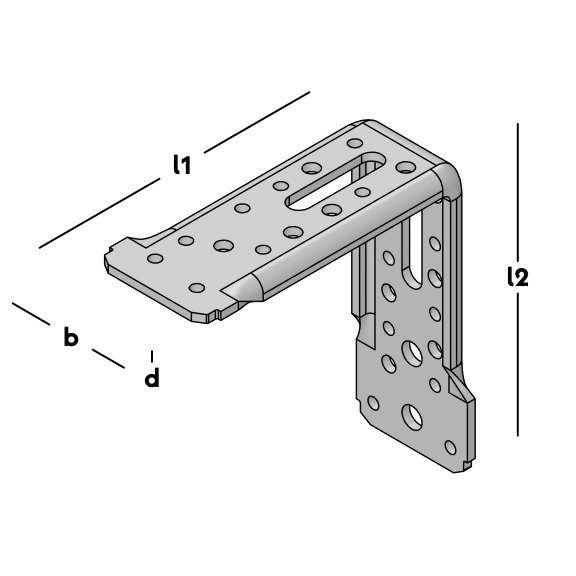

Length 1 (l1)175 mm

Length 2 (l2)175 mm

Width (b)72 mm

Thickness (d)5 mm

Slotted hole2/13x60 mm

Hole pattern16/7-10/9-2/13

MaterialSteel

Steel QualityS350

Surface treatment

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Material	Steel Quality
XL-Angle bracket	073100	20 per box	75 mm	100 mm	72 mm	5 mm	2/13x30 mm	8/7-6/9-1/13	Steel	S350
XL-Angle bracket	073101	20 per box	75 mm	100 mm	72 mm	5 mm	2/13x30 mm	8/7-6/9-1/13	Steel	S350
XL-Angle bracket	073145	30 per box	75 mm	150 mm	72 mm	5 mm	30x12,5-110x12,5 mm	10/7-8/9	Steel	S350
XL-Angle bracket	073146	20 per box	75 mm	150 mm	72 mm	5 mm	13x111 mm	10/7-8/9	Steel	S350
XL-Angle bracket	073150	30 per box	75 mm	150 mm	72 mm	5 mm	2/30x13 mm	10/7-8/9-2/13	Steel	S350
XL-Angle bracket	073175	20 per box	100 mm	150 mm	72 mm	4 mm	13x30-13x60 mm	11/7-9/9-2/13	Steel	S350
XL-Angle bracket	073151	30 per box	100 mm	150 mm	72 mm	5 mm	3/30x13 mm	11/7-9/9-2/13	Steel	S350
XL-Angle bracket	073195	20 per box	100 mm	150 mm	72 mm	5 mm	13x30-13x60 mm	11/7-9/9-2/13	Steel	S350
XL-Angle bracket	073152	20 per box	125 mm	150 mm	72 mm	5 mm	2/13x30-13x60 mm	12/7-12/9-1/13	Steel	S350
XL-Angle bracket	073153	20 per box	125 mm	150 mm	72 mm	5 mm	2/13x30-13x60 mm	12/7-12/9-1/13	Steel	S350
XL-Prefab angle bracket	073154	30 per box	125 mm	150 mm	72 mm	5 mm	2/11x73 mm	12x7/11x9/1x13	Steel	S350
XL-Angle bracket	073160	20 per box	75 mm	150 mm	72 mm	5 mm	2/13x30 mm	10/7-8/9-2/13	Steel	S350
XL-Angle bracket	073165	30 per box	75 mm	100 mm	72 mm	4 mm	2/30x13 mm	8/7-6/9-1/13	Steel	S350
XL-Angle bracket	073166	30 per box	75 mm	150 mm	72 mm	4 mm	2/30x13 mm	10/7-8/9-2/13	Steel	S350
XL-Angle bracket	073203	20 per box	75 mm	200 mm	72 mm	4 mm	2/13x30 mm	12/7-10/9-3/13	Steel	S350
XL-Angle bracket	073176	30 per box	125 mm	150 mm	72 mm	4 mm	4/30x13 mm	12/7-12/9-1/13	Steel	S350
XL-Angle bracket	073200	20 per box	75 mm	200 mm	72 mm	5 mm	2/13x30 mm	12/7-10/9-3/13	Steel	S350
XL-Angle bracket	073201	20 per box	75 mm	200 mm	72 mm	5 mm	2/13x30 mm	12/7-10/9-3/13	Steel	S350
XL-Angle bracket	0732045	13 per box	150 mm	200 mm	72 mm	5 mm	2/13x60 mm	16/7-10/9-3/13	Steel	S350
XL-Angle bracket	0732047	15 per box	175 mm	175 mm	72 mm	5 mm	2/13x60 mm	16/7-10/9-2/13	Steel	S350
XL-Angle bracket	073208	30 per box	50 mm	100 mm	72 mm	4 mm	13x30 mm	5/7-4/9	Steel	S350
XL-Angle bracket	0732085	30 per box	50 mm	125 mm	72 mm	4 mm	13x30 mm	5/7-4/9-1/13	Steel	S350
XL-Angle bracket	0732055	15 per box	100 mm	225 mm	72 mm	5 mm	2/30x13 mm	16/7-18/9-5/13	Steel	S350
XL-Angle bracket	073206	10 per box	200 mm	225 mm	72 mm	5 mm	4/30x13 mm	20/7-24/9-5/13	Steel	S350
XL-Angle bracket	0732065	10 per box	225 mm	250 mm	72 mm	5 mm	2/20x13-4/30x13 mm	18/7-14/9-4/13	Steel	S350
XL-Angle bracket	0732075	8 per box	125 mm	300 mm	72 mm	5 mm	3/30x13 mm	19/7-22/9-5/13	Steel	S350
