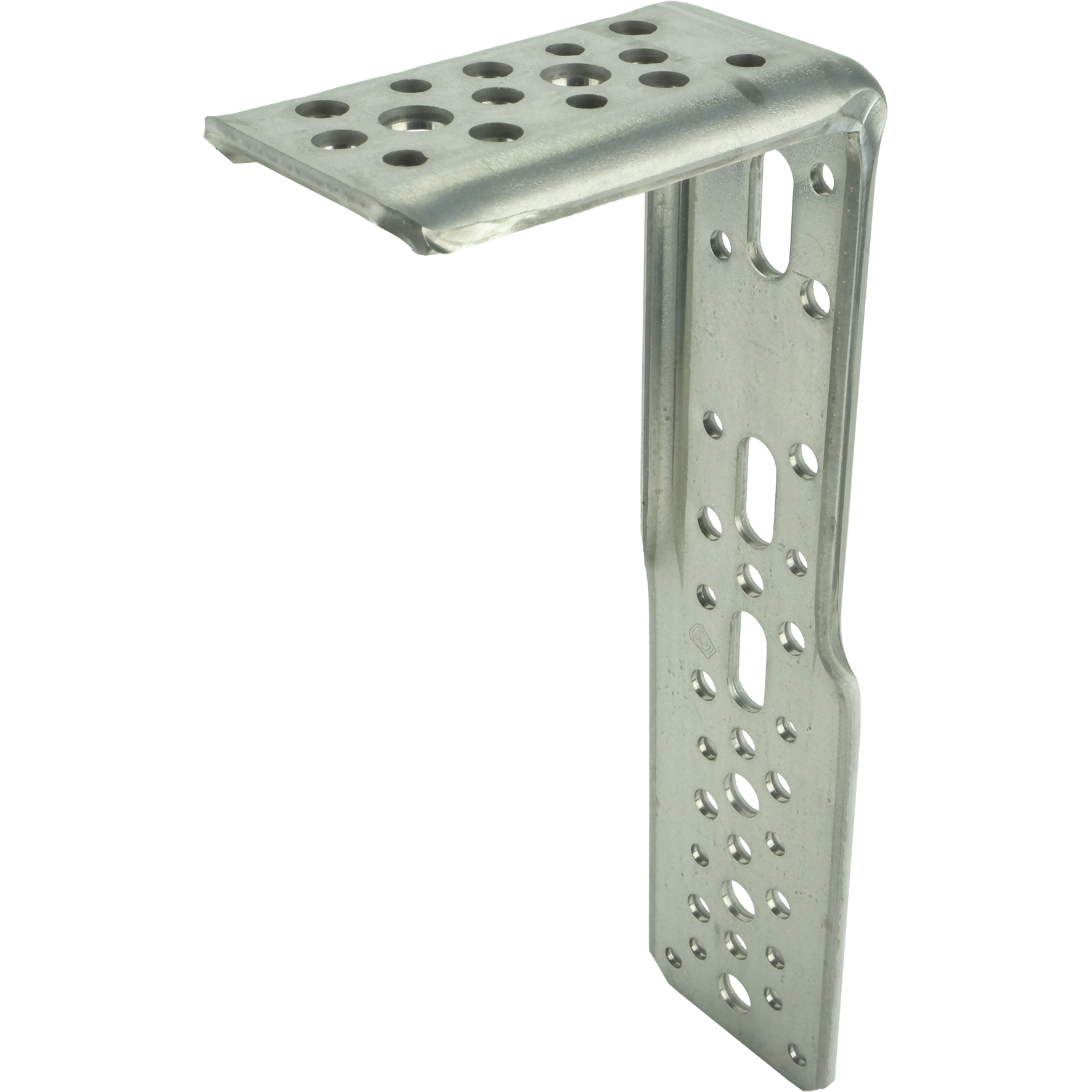

XL-Angle bracket

Length 1

Length 2

Width

65 mm

72 mm

Thickness

4 mm

5 mm

Slotted hole

Surface treatment

Details & dimensions

Article

Article number0732075

EAN code8714318069933

Packaging

EAN code8714318069940

Packaging8 per box

Length330 mm

Width255 mm

Height85 mm

Dimensions

XL-Angle bracket

Length 1 (l1)125 mm

Length 2 (l2)300 mm

Width (b)72 mm

Thickness (d)5 mm

Slotted hole3/30x13 mm

Hole pattern19/7-22/9-5/13

MaterialSteel

Steel QualityS350

Surface treatment

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Creasing	Material	Steel Quality
XL-Angle bracket	073100	30 per box	75 mm	100 mm	72 mm	5 mm	2/30x13 mm	8/7-6/9-1/13	-	Steel	S350
XL-Angle bracket	073101	30 per box	75 mm	100 mm	72 mm	5 mm	2/30x13 mm	8/7-6/9-1/13	-	Steel	S350
XL-Angle bracket	073145	30 per box	75 mm	150 mm	72 mm	5 mm	30x12,5-110x12,5 mm	10/7-8/9	-	Steel	S350
XL-Angle bracket	073146	30 per box	75 mm	150 mm	72 mm	5 mm	111x13 mm	10/7-8/9	-	Steel	S350
XL-Angle bracket	073150	30 per box	75 mm	150 mm	72 mm	5 mm	2/30x13 mm	10/7-8/9-2/13	-	Steel	S350
XL-Angle bracket	073151	30 per box	100 mm	150 mm	72 mm	5 mm	3/30x13 mm	11/7-9/9-2/13	-	Steel	S350
XL-Angle bracket	073152	30 per box	125 mm	150 mm	72 mm	5 mm	4/30x13 mm	12/7-12/9-1/13	-	Steel	S350
XL-Angle bracket	073153	30 per box	125 mm	150 mm	72 mm	5 mm	4/30x13 mm	12/7-12/9-1/13	-	Steel	S350
XL-Prefab angle bracket	073154	30 per box	125 mm	150 mm	72 mm	5 mm	2/73x11 mm	12x7/11x9/1x13	-	Steel	S350
XL-Angle bracket	073160	30 per box	75 mm	150 mm	72 mm	5 mm	2/30x13 mm	10/7-8/9-2/13	-	Steel	S350
XL-Angle bracket	073165	30 per box	75 mm	100 mm	72 mm	4 mm	2/30x13 mm	8/7-6/9-1/13	-	Steel	S350
XL-Angle bracket	073166	30 per box	75 mm	150 mm	72 mm	4 mm	2/30x13 mm	10/7-8/9-2/13	-	Steel	S350
XL-Angle bracket	073175	30 per box	100 mm	150 mm	72 mm	4 mm	3/30x13 mm	11/7-9/9-2/13	-	Steel	S350
XL-Angle bracket	073176	30 per box	125 mm	150 mm	72 mm	4 mm	4/30x13 mm	12/7-12/9-1/13	-	Steel	S350
XL-Angle bracket	073195	30 per box	100 mm	150 mm	72 mm	5 mm	3/30x13 mm	11/7-9/9-2/13	-	Steel	S350
XL-Angle bracket	073200	30 per box	75 mm	200 mm	72 mm	5 mm	2/30x13 mm	12/7-10/9-3/13	-	Steel	S350
XL-Angle bracket	073201	30 per box	75 mm	200 mm	72 mm	5 mm	2/30x13 mm	12/7-10/9-3/13	-	Steel	S350
XL-Angle bracket	073203	30 per box	75 mm	200 mm	72 mm	4 mm	2/30x13 mm	12/7-10/9-3/13	-	Steel	S350
XL-Angle bracket	0732045	13 per box	150 mm	200 mm	72 mm	5 mm	2/60x13 mm	16/7-10/9-3/13	-	Steel	S350
XL-Angle bracket	0732047	15 per box	175 mm	175 mm	72 mm	5 mm	2/60x13 mm	16/7-10/9-2/13	-	Steel	S350
XL-Angle bracket	073208	30 per box	50 mm	100 mm	72 mm	4 mm	30x13 mm	5/7-4/9	-	Steel	S350
XL-Angle bracket	0732085	30 per box	50 mm	125 mm	65 mm	4 mm	30x13 mm	5/7-4/9-1/13	-	Steel	S350
XL-Angle bracket	0732055	15 per box	100 mm	225 mm	72 mm	5 mm	2/30x13 mm	16/7-18/9-5/13	sides ridges	Steel	S350
XL-Angle bracket	073206	10 per box	200 mm	225 mm	72 mm	5 mm	4/30x13 mm	20/7-24/9-5/13	sides ridges	Steel	S350
XL-Angle bracket	0732065	10 per box	225 mm	250 mm	72 mm	5 mm	2/20x13-4/30x13 mm	18/7-14/9-4/13	sides ridges	Steel	S350
XL-Angle bracket	0732075	8 per box	125 mm	300 mm	72 mm	5 mm	3/30x13 mm	19/7-22/9-5/13	-	Steel	S350
