Pressure plate Eco
Plastic pressure plate for raising anchors for facade or wall elements. Evenly distributed load of up to 4,500 kg. The pressure plate has a groove and hole pattern that are matched to the GB element, frame and eaves profiles
Thickness
Press Load max
Details & dimensions
Article
Article number34760
EAN code8714318024482
Packaging
EAN code8714318127909
Packaging40 per bag
Length350 mm
Width350 mm
Height90 mm

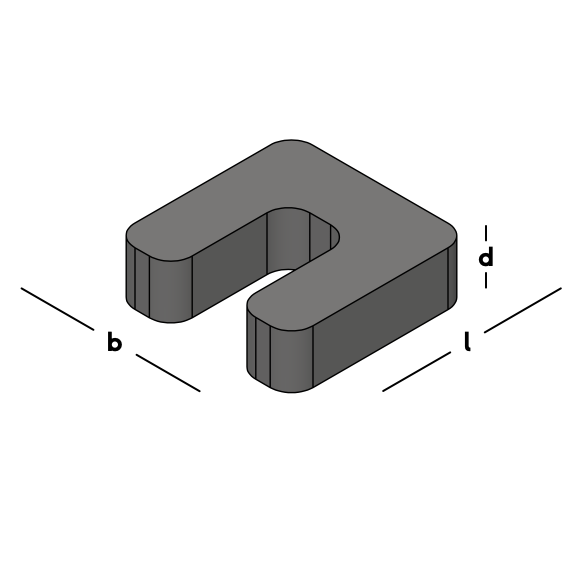

Dimensions
Pressure plate Eco
Length (l)70 mm
Width (b)70 mm
Thickness (d)20 mm
Hole pattern2/9
Press Load max4500 kg
Slot size45X22 mm
ColorBlack
MaterialPlastic
Material quality
Downloads
Certifications, quality marks and technical sheets
Processing & accessories
You can use the products below to place or confirm the product correctly.
