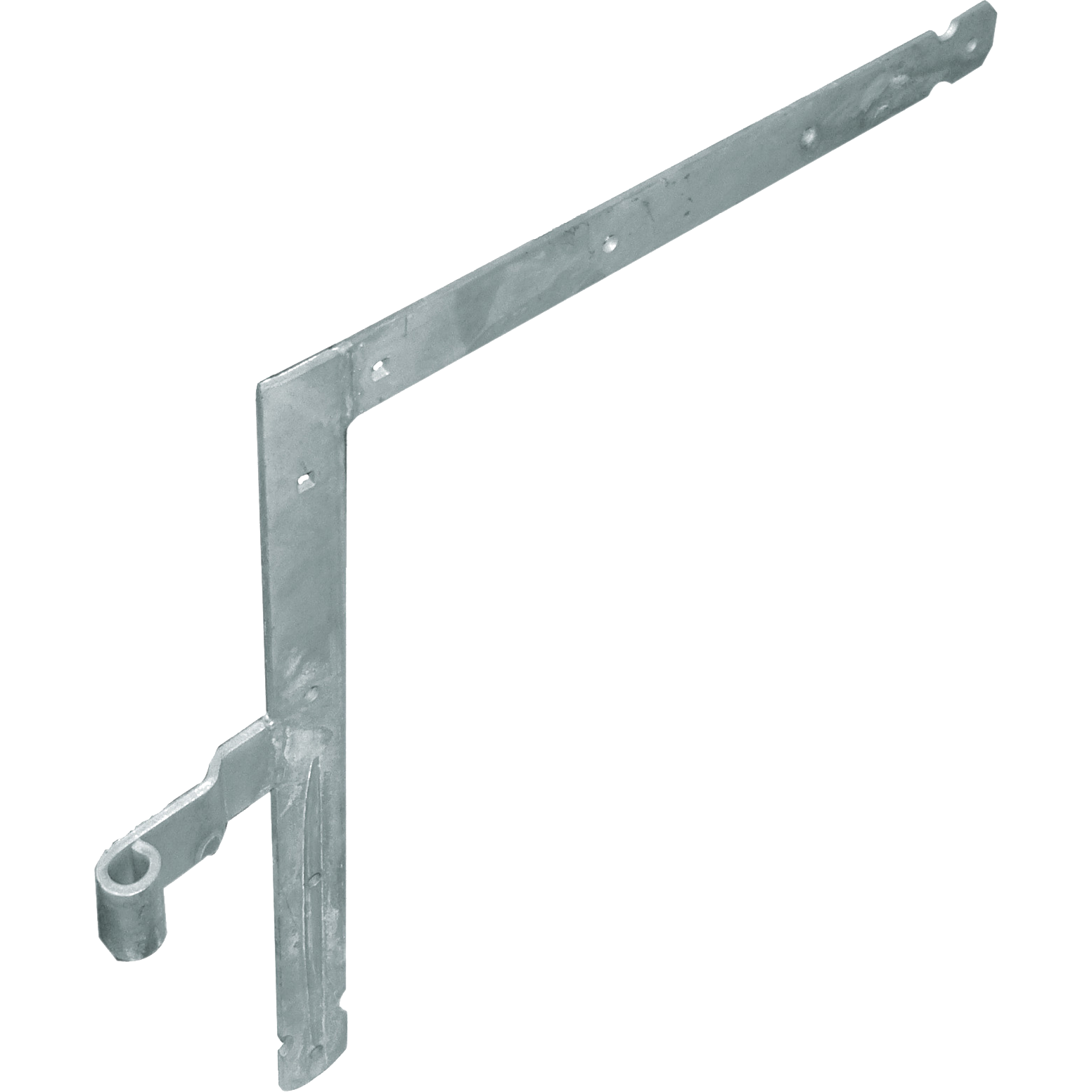

Garage door hinge

Hook with blade in angle connection. For hinged fixing of gates and doors. Suitable for mountingtop left or bottom right on the outside of an outward-turning gate or door. For use in combination with a Ø16 thumb.

Length

70 mm

500 mm

Height

400 mm

500 mm

Surface treatment

Details & dimensions

Article

Article number48366

EAN code8714318032135

Packaging

EAN code8714318032135

Packaging1 piece

Length700 mm

Width380 mm

Height5 mm

Dimensions

Garage door hinge

Length (l)500 mm

Width (b)45 mm

Thickness (d)6 mm

Height (h)500 mm

Hole pattern6/9

Square hole2/9x9 mm

Bend10 mm

For pinion ØØ16 mm

Type(LB) Links boven - (RO) Rechts onder

MaterialSteel

Steel QualityS235

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Lengte	Breedte	Dikte	Hoogte	Gatenpatroon	Vierkante gaten	Verzet / bocht	Voor pen Ø	Type	Materiaal	Staalkwaliteit
Garagedeurheng	48366	1 piece	500 mm	45 mm	6 mm	500 mm	6/9	2/9x9 mm	10 mm	Ø16 mm	(LB) Links boven - (RO) Rechts onder	Staal	S235
Garagedeurheng	48367	1 piece	500 mm	45 mm	6 mm	500 mm	6/9	2/9x9 mm	10 mm	Ø16 mm	(LO) Links onder - (RB) Rechts boven	Staal	S235
Tussenstuk Garagedeurheng	48369	1 piece	-	45 mm	6 mm	400 mm	3/9	-	10 mm	Ø16 mm	-	Staal	S235
Aanlasheng voor pen Ø16	48484	50 per box	70 mm	45 mm	6 mm	-	-	-	-	Ø16 mm	-	Staal	S235
