Garage door hinge plane

Handle with blade parallel to frame. For hinged fastening of gates and doors. Suitable as an additional hinge point for an outward-turning gate or door. For use in combination with a thumb Ø 16mm.

Length

70 mm

500 mm

Height

400 mm

500 mm

Surface treatment

Details & dimensions

Article

Article number48369

EAN code8714318032159

Packaging

EAN code8714318032159

Packaging1 piece

Length400 mm

Width155 mm

Height40 mm

Dimensions

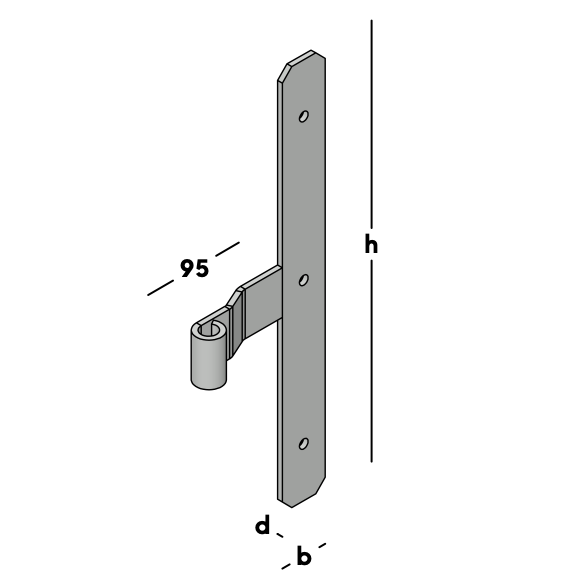

Garage door hinge plane

Width (b)45 mm

Thickness (d)6 mm

Height (h)400 mm

Hole pattern3/9

Bend10 mm

For pinion ØØ16 mm

MaterialSteel

Steel QualityS235

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Lengte	Breedte	Dikte	Hoogte	Gatenpatroon	Vierkante gaten	Verzet / bocht	Voor pen Ø	Type	Materiaal	Staalkwaliteit
Garagedeurheng	48366	1 piece	500 mm	45 mm	6 mm	500 mm	6/9	2/9x9 mm	10 mm	Ø16 mm	(LB) Links boven - (RO) Rechts onder	Staal	S235
Garagedeurheng	48367	1 piece	500 mm	45 mm	6 mm	500 mm	6/9	2/9x9 mm	10 mm	Ø16 mm	(LO) Links onder - (RB) Rechts boven	Staal	S235
Tussenstuk Garagedeurheng	48369	1 piece	-	45 mm	6 mm	400 mm	3/9	-	10 mm	Ø16 mm	-	Staal	S235
Aanlasheng voor pen Ø16	48484	50 per box	70 mm	45 mm	6 mm	-	-	-	-	Ø16 mm	-	Staal	S235
