Hinge Rustica for pinion Ø16

Rustic-shaped handle for hinged fixing of gates and doors. Fitted with square (carriage bolt) holes. For use in combination with a Ø16mm thumb.

Length

Width

30 mm

40 mm

45 mm

Details & dimensions

Article number435109

EAN code8714318064839

EAN code8714318064846

Packaging10 per box

Length550 mm

Width190 mm

Height85 mm

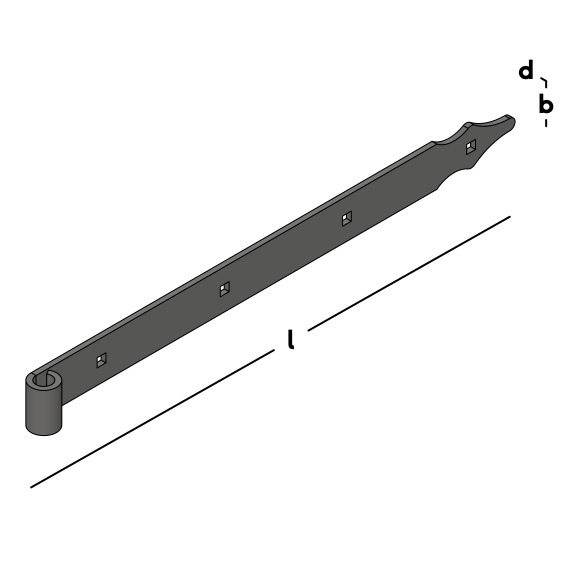

Length (l)500 mm

Width (b)40 mm

Thickness (d)5 mm

Square hole4/9x9 mm

For pinion ØØ16 mm

MaterialSteel

Steel QualityS315

Surface treatment EPZ

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Lengte	Breedte	Dikte	Vierkante gaten	Voor pen Ø	Materiaal	Staalkwaliteit
Heng Rustica	435123	10 per box	1200 mm	45 mm	5 mm	6/9x9 mm	Ø16 mm	Staal	S315
Heng Rustica	435119	1 piece	1000 mm	45 mm	5 mm	6/9x9 mm	Ø16 mm	Staal	S315
Heng Rustica	435115	10 per box	800 mm	40 mm	5 mm	6/9x9 mm	Ø16 mm	Staal	S315
Heng Rustica	435111	10 per box	600 mm	40 mm	5 mm	5/9x9 mm	Ø16 mm	Staal	S315
Heng Rustica	435109	10 per box	500 mm	40 mm	5 mm	4/9x9 mm	Ø16 mm	Staal	S315
Heng Rustica	435107	10 per box	400 mm	40 mm	5 mm	4/9x9 mm	Ø16 mm	Staal	S315
Heng Rustica	43417	10 per box	400 mm	30 mm	5 mm	4/9x9 mm	Ø16 mm	Staal	S315
Heng Rustica	43415	10 per box	300 mm	30 mm	5 mm	3/9x9 mm	Ø16 mm	Staal	S315
