Hinge Rustica for pinion Ø16

Rustic-shaped handle for hinged fixing of gates and doors. Fitted with square (carriage bolt) holes. For use in combination with a Ø16mm thumb.

Length

Width

30 mm

40 mm

45 mm

Details & dimensions

Article number435123

EAN code8714318064914

EAN code8714318064921

Packaging1 per box

Length1200 mm

Width50 mm

Height25 mm

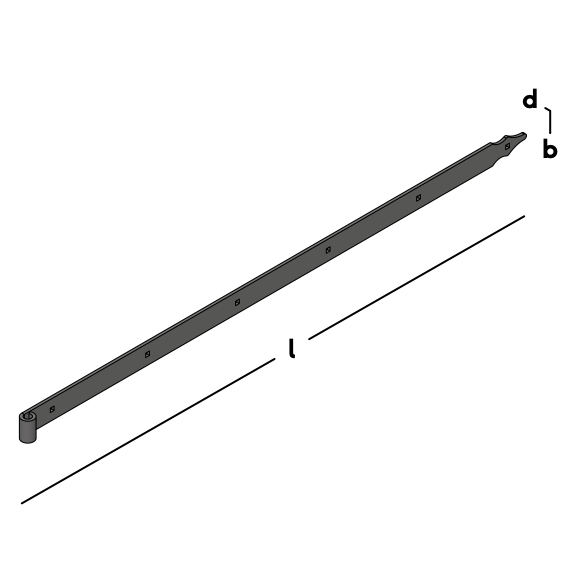

Length (l)1200 mm

Width (b)45 mm

Thickness (d)5 mm

Square hole6/9x9 mm

For pinion ØØ16 mm

MaterialSteel

Steel QualityS315

Surface treatment EPZ

Drawings and models in 2D and 3D

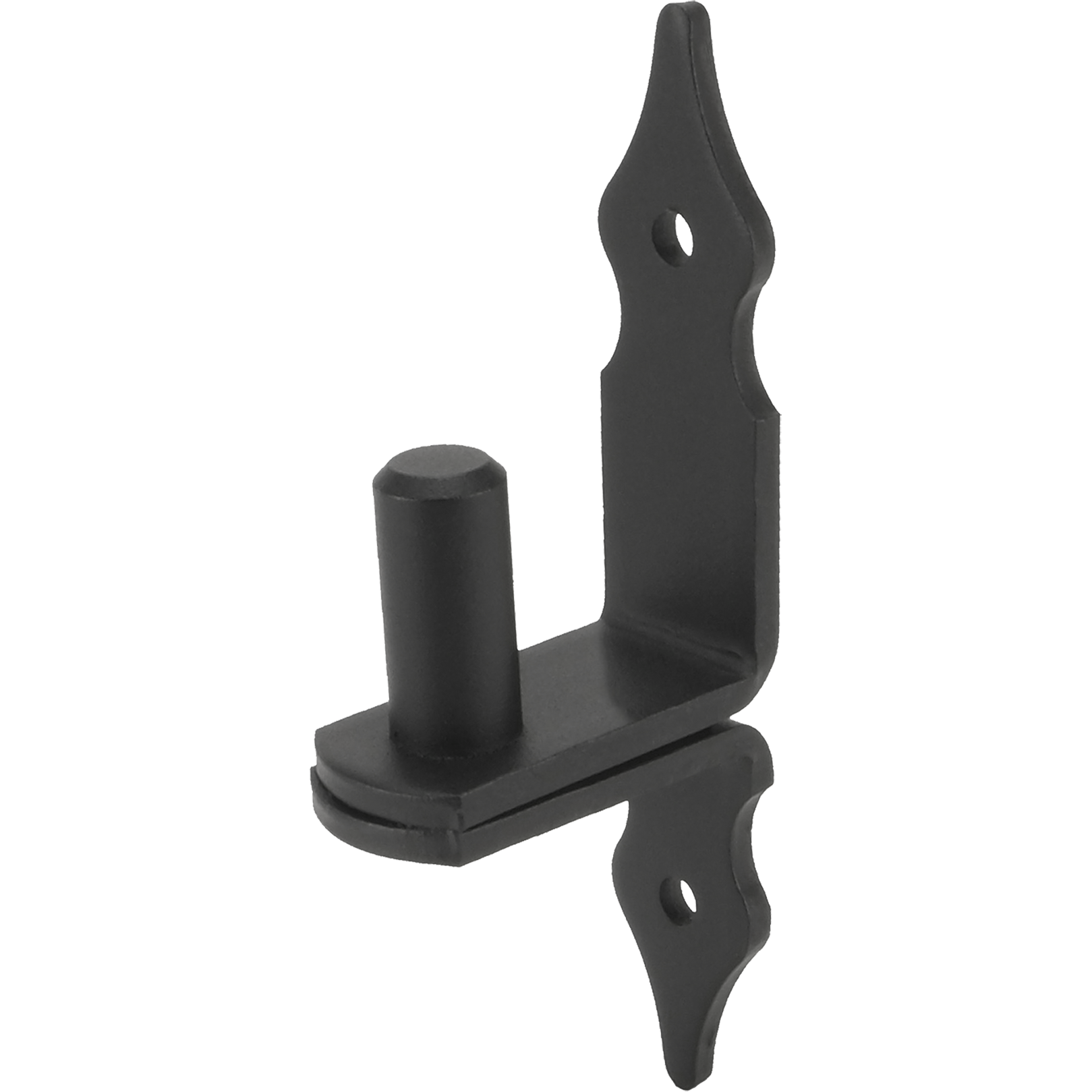

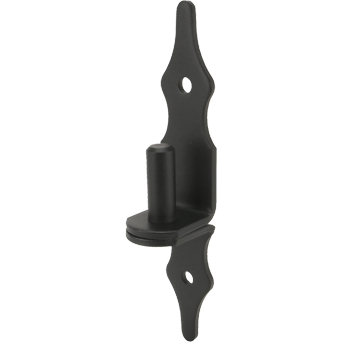

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Square hole	For pinion Ø	Material	Steel Quality
Hinge Rustica for pinion Ø16	435123	1 per box	1200 mm	45 mm	5 mm	6/9x9 mm	Ø16 mm	Steel	S315
Hinge Rustica for pinion Ø16	435119	1 piece	1000 mm	45 mm	5 mm	6/9x9 mm	Ø16 mm	Steel	S315
Hinge Rustica for pinion Ø16	435115	10 per box	800 mm	40 mm	5 mm	6/9x9 mm	Ø16 mm	Steel	S315
Hinge Rustica for pinion Ø16	435111	10 per box	600 mm	40 mm	5 mm	5/9x9 mm	Ø16 mm	Steel	S315
Hinge Rustica for pinion Ø16	435109	10 per box	500 mm	40 mm	5 mm	4/9x9 mm	Ø16 mm	Steel	S315
Hinge Rustica for pinion Ø16	435107	10 per box	400 mm	40 mm	5 mm	4/9x9 mm	Ø16 mm	Steel	S315
Hinge Rustica for pinion Ø16	43417	10 per box	400 mm	30 mm	5 mm	4/9x9 mm	Ø16 mm	Steel	S315
Hinge Rustica for pinion Ø16	43415	10 per box	300 mm	30 mm	5 mm	3/9x9 mm	Ø16 mm	Steel	S315
