Barrel bolt

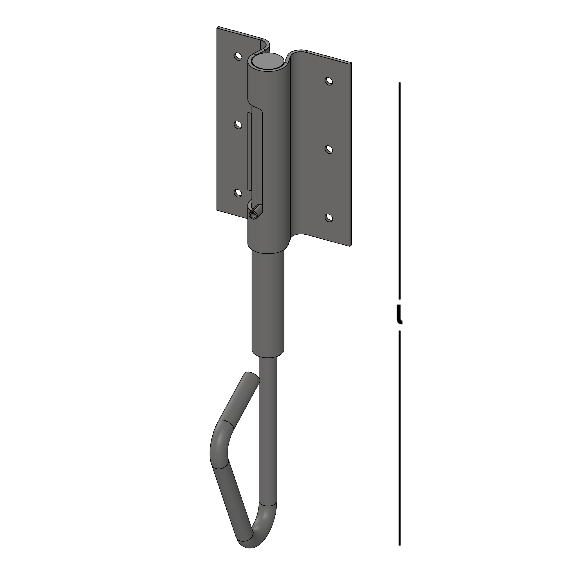

Sliding bolt with extended handle. Suitable for securing (double) doors at the top.

Length

Steel Quality

S235

S350

Surface treatment

Details & dimensions

Article

Article number74303

EAN code8714318075903

Packaging

EAN code8714318075934

Packaging5 per box

Length425 mm

Width135 mm

Height85 mm

Dimensions

Barrel bolt

Length (l)300 mm

Thickness (d)2 mm

Hole pattern6/5-4/5,5

Backplate83x120 mm

Result pen55 mm, pinion Ø18

Attachmentsincluding plate

MaterialSteel

Steel QualityS235

Surface treatment EPZ

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Diameter	Hole pattern	Backplate	Result pen	Attachments	Material	Steel Quality
Barrel bolt	74303	5 per box	300 mm	-	2 mm	-	6/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate	Steel	S235
Barrel bolt	74304	5 per box	400 mm	-	2 mm	-	6/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate	Steel	S235
Barrel bolt	74306	5 per box	600 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + bracket	Steel	S235
Barrel bolt	74308	5 per box	800 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + bracket	Steel	S235
Barrel bolt	74310	1 piece	1000 mm	-	2 mm	-	10/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + 2 brackets	Steel	S235
Barrel bolt	743903	1 piece	300 mm	-	2 mm	-	6/5-4/5,5	73x100 mm	50 mm, pinion Ø14,5	including plate	Steel	S235
Barrel bolt	743904	1 piece	400 mm	-	2 mm	-	6/5-4/5,5	73x100 mm	50 mm, pinion Ø14,5	including plate	Steel	S235
Barrel bolt	743905	1 piece	500 mm	-	2 mm	-	6/5-4/5,5	73x100 mm	50 mm, pinion Ø14,5	including plate	Steel	S235
Barrel bolt	743906	1 piece	600 mm	-	2 mm	-	8/5-4/5,5	73x100 mm	50 mm, pinion Ø14,5	including plate + bracket	Steel	S235
Barrel bolt	74403	1 piece	300 mm	-	2 mm	-	6/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate	Steel	S235
Barrel bolt	74404	1 piece	400 mm	-	2 mm	-	6/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate	Steel	S235
Barrel bolt	74405	1 piece	500 mm	-	2 mm	-	6/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate	Steel	S235
Barrel bolt	74406	1 piece	600 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + bracket	Steel	S235
Barrel bolt	74408	1 piece	800 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + bracket	Steel	S235
Barrel bolt	74410	1 piece	1000 mm	-	2 mm	-	10/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + 2 brackets	Steel	S235
Barrel bolt	74412	1 piece	1200 mm	-	2 mm	-	10/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + 2 brackets	Steel	S235
Barrel bolt extended outcome 150	744062	1 piece	600 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	150 mm, pinion Ø18	including plate + bracket	Steel	S235
Barrel bolt extended outcome 100	744061	1 piece	600 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	100 mm, pinion Ø18	including plate + bracket	Steel	S235
Plate for Tail latch	74417	1 piece	66 mm	40 mm	2 mm	-	4/5,5-1/20	-	-	-	Steel	S235
Attachment for Tail Latch	74418	1 piece	-	-	-	10 mm	2/5	-	-	-	Steel	S350
Plate for Tail latch	744172	1 piece	66 mm	40 mm	-	-	-	-	-	-	Steel	S235
