Barrel bolt

Sliding bolt with extended handle. Suitable for securing (double) doors at the top.

Length

Steel Quality

S235

S350

Surface treatment

Details & dimensions

Article

Article number743904

EAN code8714318069193

Packaging

EAN code8714318069193

Packaging1 piece

Length400 mm

Width80 mm

Height30 mm

Dimensions

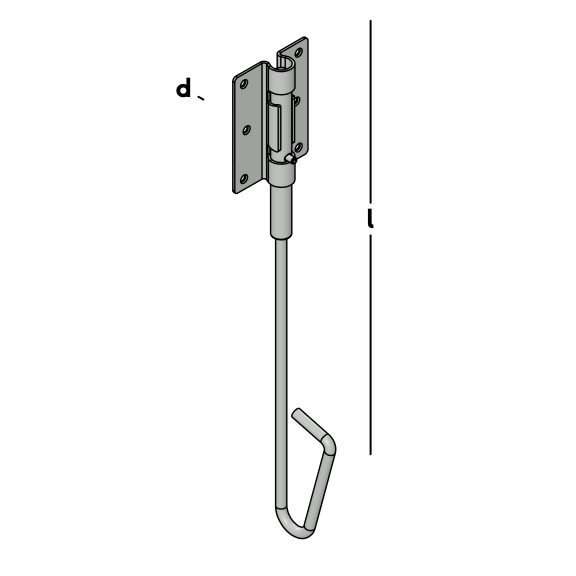

Barrel bolt

Length (l)400 mm

Thickness (d)2 mm

Hole pattern6/5-4/5,5

Backplate73x100 mm

Result pen50 mm, pinion Ø14,5

Attachmentsincluding plate

MaterialSteel

Steel QualityS235

Surface treatment EV-2

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Diameter	Hole pattern	Backplate	Result pen	Attachments	Material	Steel Quality
Barrel bolt	74303	5 per box	300 mm	-	2 mm	-	6/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate	Steel	S235
Barrel bolt	74304	5 per box	400 mm	-	2 mm	-	6/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate	Steel	S235
Barrel bolt	74306	5 per box	600 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + bracket	Steel	S235
Barrel bolt	74308	5 per box	800 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + bracket	Steel	S235
Barrel bolt	74310	1 piece	1000 mm	-	2 mm	-	10/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + 2 brackets	Steel	S235
Barrel bolt	743903	1 piece	300 mm	-	2 mm	-	6/5-4/5,5	73x100 mm	50 mm, pinion Ø14,5	including plate	Steel	S235
Barrel bolt	743904	1 piece	400 mm	-	2 mm	-	6/5-4/5,5	73x100 mm	50 mm, pinion Ø14,5	including plate	Steel	S235
Barrel bolt	743905	1 piece	500 mm	-	2 mm	-	6/5-4/5,5	73x100 mm	50 mm, pinion Ø14,5	including plate	Steel	S235
Barrel bolt	743906	1 piece	600 mm	-	2 mm	-	8/5-4/5,5	73x100 mm	50 mm, pinion Ø14,5	including plate + bracket	Steel	S235
Barrel bolt	74403	1 piece	300 mm	-	2 mm	-	6/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate	Steel	S235
Barrel bolt	74404	1 piece	400 mm	-	2 mm	-	6/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate	Steel	S235
Barrel bolt	74405	1 piece	500 mm	-	2 mm	-	6/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate	Steel	S235
Barrel bolt	74406	1 piece	600 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + bracket	Steel	S235
Barrel bolt	74408	1 piece	800 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + bracket	Steel	S235
Barrel bolt	74410	1 piece	1000 mm	-	2 mm	-	10/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + 2 brackets	Steel	S235
Barrel bolt	74412	1 piece	1200 mm	-	2 mm	-	10/5-4/5,5	83x120 mm	55 mm, pinion Ø18	including plate + 2 brackets	Steel	S235
Barrel bolt extended outcome 150	744062	1 piece	600 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	150 mm, pinion Ø18	including plate + bracket	Steel	S235
Barrel bolt extended outcome 100	744061	1 piece	600 mm	-	2 mm	-	8/5-4/5,5	83x120 mm	100 mm, pinion Ø18	including plate + bracket	Steel	S235
Plate for Tail latch	74417	1 piece	66 mm	40 mm	2 mm	-	4/5,5-1/20	-	-	-	Steel	S235
Attachment for Tail Latch	74418	1 piece	-	-	-	10 mm	2/5	-	-	-	Steel	S350
Plate for Tail latch	744172	1 piece	66 mm	40 mm	-	-	-	-	-	-	Steel	S235
