Metal formwork for concrete

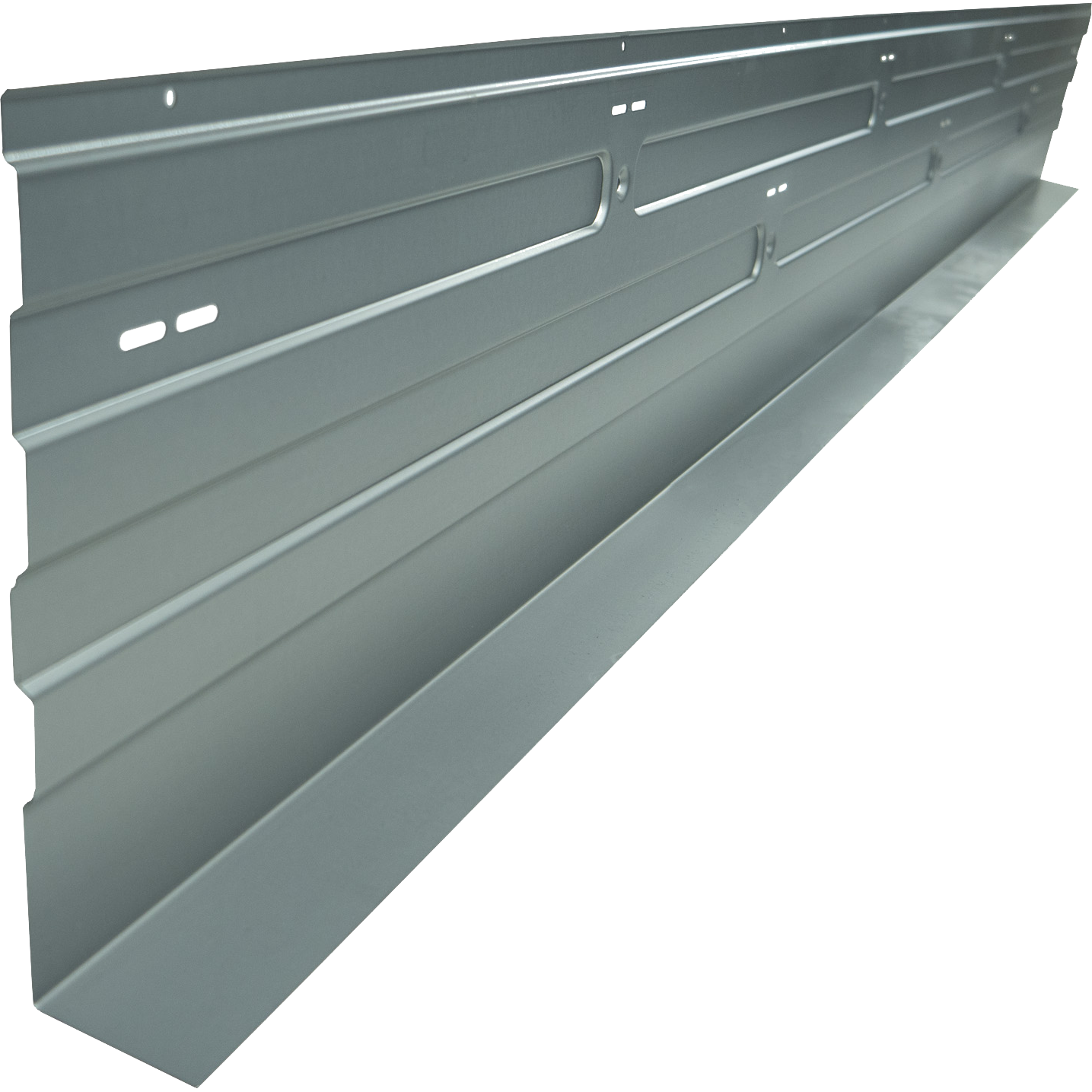

Profiled edge box for use in combination with poured floor structures (wide slab/channel slab/combination floor). The metal edge box is lightweight and is placed on the internal cavity walls and/or house-separating walls.

Height

Details & dimensions

Article

Article number103270

EAN code8714318022990

Packaging

EAN code8714318022990

Packaging1 piece

Dimensions

Metal formwork for concrete

Length (l)2000 mm

Thickness (d)0,75 mm

Height (h)270 mm

Hole pattern4x3-4x5-4x7-8x4

Creasing3 ridges

Flange (f)55 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Processing & accessories

1 / 4

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Lengte	Dikte	Hoogte	Gatenpatroon	Rillen	Vloerhoogte	Flens	Materiaal	Staalkwaliteit
Metalen randkist	103150	1 piece	2000 mm	0,75 mm	150 mm	4x3-4x5-4x7-8x4	2 rillen	150 mm	55 mm	Staal	DX51
Metalen randkist	103160	1 piece	2000 mm	0,75 mm	160 mm	4x3-4x5-4x7-8x4	2 rillen	160 mm	55 mm	Staal	DX51
Metalen randkist	103170	1 piece	2000 mm	0,75 mm	170 mm	4x3-4x5-4x7-8x4	2 rillen	170 mm	55 mm	Staal	DX51
Metalen randkist	103180	1 piece	2000 mm	0,75 mm	180 mm	4x3-4x5-4x7-8x4	2 rillen	180 mm	55 mm	Staal	DX51
Metalen randkist	103190	1 piece	2000 mm	0,75 mm	190 mm	4x3-4x5-4x7-8x4	2 rillen	190 mm	55 mm	Staal	DX51
Metalen randkist	103200	1 piece	2000 mm	0,75 mm	200 mm	4x3-4x5-4x7-8x4	3 rillen	200 mm	55 mm	Staal	DX51
Metalen randkist	103210	1 piece	2000 mm	0,75 mm	210 mm	4x3-4x5-4x7-8x4	3 rillen	210 mm	55 mm	Staal	DX51
Metalen randkist	103220	1 piece	2000 mm	0,75 mm	220 mm	4x3-4x5-4x7-8x4	3 rillen	220 mm	55 mm	Staal	DX51
Metalen randkist	103230	1 piece	2000 mm	0,75 mm	230 mm	4x3-4x5-4x7-8x4	3 rillen	230 mm	55 mm	Staal	DX51
Metalen randkist	103240	1 piece	2000 mm	0,75 mm	240 mm	4x3-4x5-4x7-8x4	3 rillen	240 mm	55 mm	Staal	DX51
Metalen randkist	103250	1 piece	2000 mm	0,75 mm	250 mm	4x3-4x5-4x7-8x4	3 rillen	250 mm	55 mm	Staal	DX51
Metalen randkist	103260	1 piece	2000 mm	0,75 mm	260 mm	4x3-4x5-4x7-8x4	3 rillen	260 mm	55 mm	Staal	DX51
Metalen randkist	103270	1 piece	2000 mm	0,75 mm	270 mm	4x3-4x5-4x7-8x4	3 rillen	270 mm	55 mm	Staal	DX51
Metalen randkist	103280	1 piece	2000 mm	0,75 mm	280 mm	4x3-4x5-4x7-8x4	3 rillen	280 mm	55 mm	Staal	DX51
Metalen randkist	103290	1 piece	2000 mm	0,75 mm	290 mm	4x3-4x5-4x7-8x4	3 rillen	290 mm	55 mm	Staal	DX51
Metalen randkist	103300	1 piece	2000 mm	0,75 mm	300 mm	4x3-4x5-4x7-8x4	3 rillen	300 mm	55 mm	Staal	DX51
Metalen randkist	103310	1 piece	2000 mm	0,75 mm	310 mm	4x3-4x5-4x7-8x4	4 rillen	310 mm	55 mm	Staal	DX51
Metalen randkist	103320	1 piece	2000 mm	0,75 mm	320 mm	4x3-4x5-4x7-8x4	4 rillen	320 mm	55 mm	Staal	DX51
Metalen randkist	103330	1 piece	2000 mm	0,75 mm	330 mm	4x3-4x5-4x7-8x4	4 rillen	330 mm	55 mm	Staal	DX51
Metalen randkist	103340	1 piece	2000 mm	0,75 mm	340 mm	4x3-4x5-4x7-8x4	4 rillen	340 mm	55 mm	Staal	DX51
Metalen randkist	103350	1 piece	2000 mm	0,75 mm	350 mm	4x3-4x5-4x7-8x4	4 rillen	350 mm	55 mm	Staal	DX51
