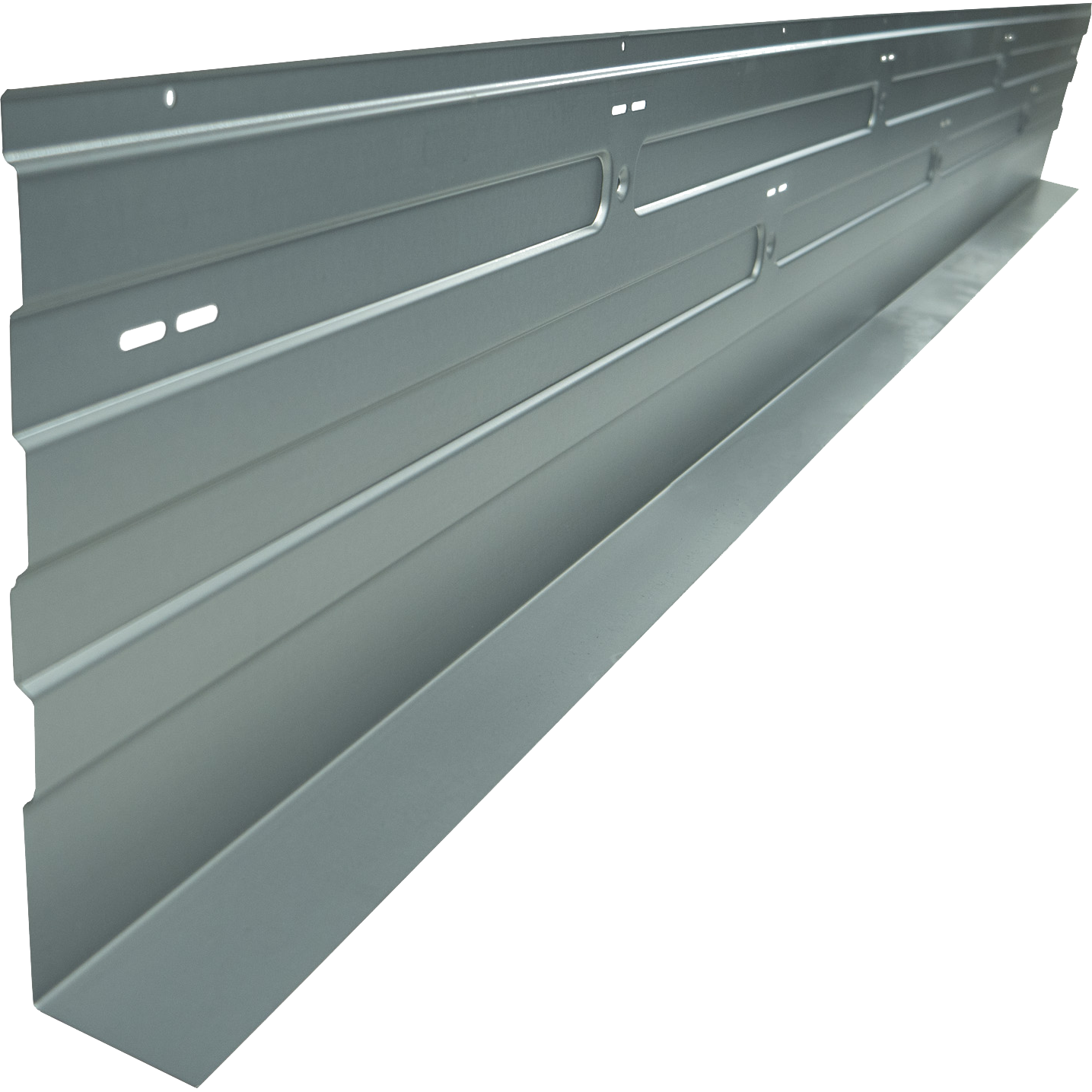

Metal formwork for concrete
Profiled edge box for use in combination with poured floor structures (wide slab/channel slab/combination floor). The metal edge box is lightweight and is placed on the internal cavity walls and/or house-separating walls.
Length
Height
Details & dimensions
Article
Article number103340
EAN code8714318023034
Packaging
EAN code8714318023034
Packaging1 piece
Dimensions
Metal formwork for concrete
Length (l)2000 mm
Thickness (d)0,75 mm
Height (h)340 mm
Hole pattern4x3-4x5-4x7-8x4
Creasing4 ridges
Flange (f)55 mm
MaterialSteel
Steel QualityDX51
Surface treatment
