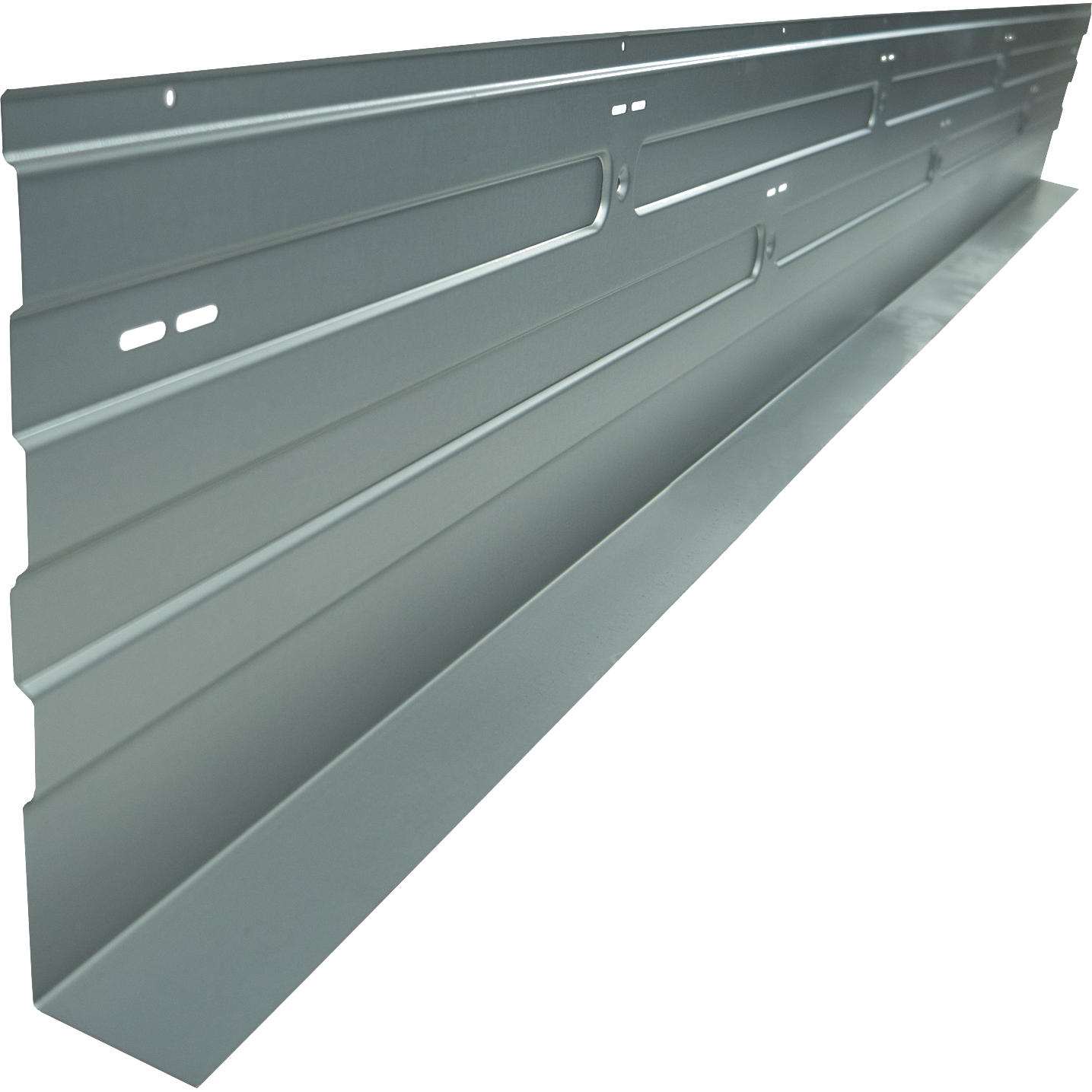

Metal formwork for concrete
Profiled edge box for use in combination with poured floor structures (wide slab/channel slab/combination floor). The metal edge box is lightweight and is placed on the internal cavity walls and/or house-separating walls.
Length
Height
Details & dimensions
Article
Article number103300
EAN code8714318022655
Packaging
EAN code8714318022655
Packaging1 piece
Length2100 mm
Width310 mm
Height55 mm
Dimensions
Metal formwork for concrete
Length (l)2000 mm
Thickness (d)0,75 mm
Height (h)300 mm
Hole pattern4x3-4x5-4x7-8x4
Creasing3 ridges
Flange (f)55 mm
MaterialSteel
Steel QualityDX51
Surface treatment
Downloads
Certifications, quality marks and technical sheets
Processing & accessories
You can use the products below to place or confirm the product correctly.
