Raamhoek
Raamhoek

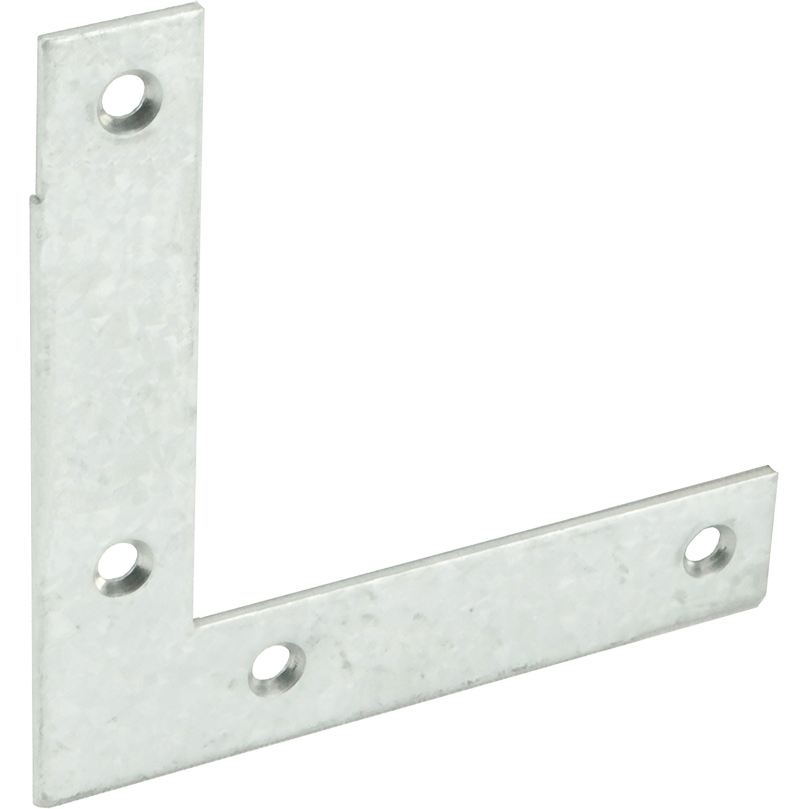

Flat corner iron flat

Length 1
Length 2
Width
Thickness
Steel Quality
DX51
S350
Surface treatment

Details & dimensions

Article

Article number83104
EAN code8714318022082

Packaging

EAN code8714318125592
Packaging100 per box
Length235 mm
Width140 mm
Height63 mm

Dimensions

Flat corner iron flat

Length 1 (l1)70 mm
Length 2 (l2)70 mm
Width (b)14 mm
Thickness (d)2 mm
Hole pattern4/3,5
MaterialSteel
Steel QualityS350
Surface treatmentZM

Downloads

Drawings and models in 2D and 3D

DWG
DXF
IFC
STP
PDF
