Raamhoek
Raamhoek

Flat corner iron flat

Length 1
Length 2
Width
Thickness
Steel Quality
DX51
S350
Surface treatment

Details & dimensions

Article

Article number83107
EAN code8714318044060

Packaging

EAN code8714318102968
Packaging100 per box
Length270 mm
Width220 mm
Height70 mm

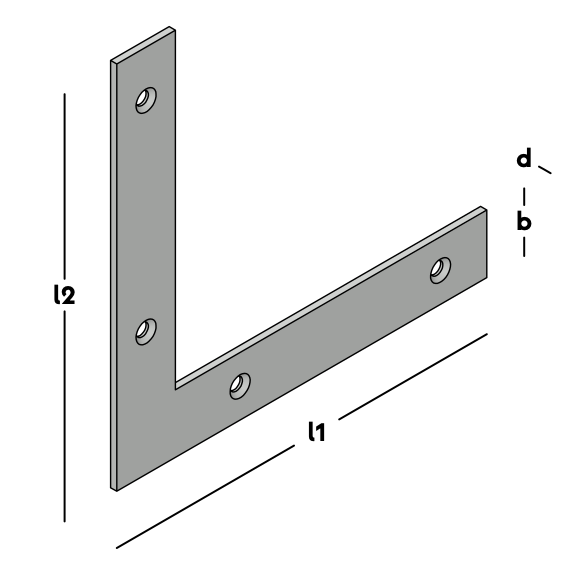

Dimensions

Flat corner iron flat

Length 1 (l1)120 mm
Length 2 (l2)120 mm
Width (b)19 mm
Thickness (d)2 mm
Hole pattern4/4,5
MaterialSteel
Steel QualityS350
Surface treatmentZM

Downloads

Drawings and models in 2D and 3D

DWG
DXF
IFC
STP
PDF
