Flat corner iron flat round

Name: Flat corner iron flat round
SKU: 83314

Length 1

Length 2

Width

Thickness

Steel Quality

DX51

S350

Surface treatment

Details & dimensions

Article number83314

EAN code8714318118372

EAN code8714318118372

Packaging1 piece

Length 1 (l1)140 mm

Length 2 (l2)140 mm

Width (b)20 mm

Thickness (d)2 mm

MaterialSteel

Steel QualityDX51

Surface treatment

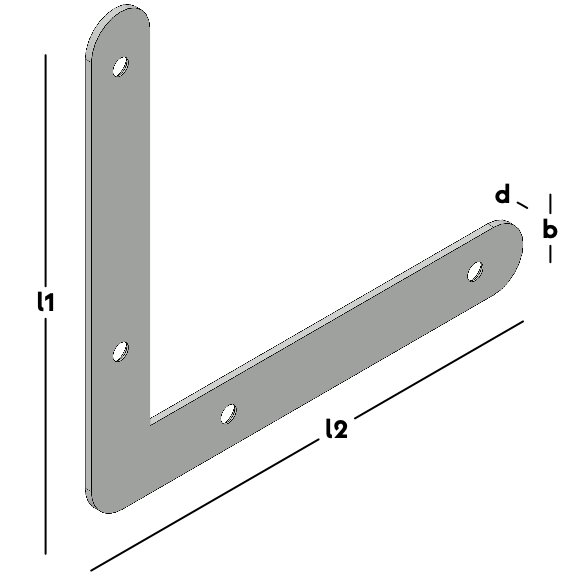

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Hole pattern	Material	Steel Quality	Surface treatment
Flat corner iron flat	83100	100 per box	30 mm	30 mm	10 mm	1,5 mm	4/3,5	Steel	DX51	GA
Flat corner iron flat	83101	100 per box	40 mm	40 mm	10 mm	1,5 mm	4/3,5	Steel	DX51	GA
Flat corner iron flat	83102	100 per box	50 mm	50 mm	10 mm	1,5 mm	4/3,5	Steel	S350	SV
Flat corner iron flat	83103	100 per box	60 mm	60 mm	10 mm	2 mm	4/3,5	Steel	S350	ZM-4
Flat corner iron flat	83104	100 per box	70 mm	70 mm	14 mm	2 mm	4/3,5	Steel	S350	ZM-4
Flat corner iron flat	83105	100 per box	80 mm	80 mm	17 mm	2 mm	4/4	Steel	DX51	GA
Flat corner iron flat	83106	100 per box	100 mm	100 mm	18 mm	2 mm	4/4	Steel	S350	ZM-4
Flat corner iron flat	83107	100 per box	120 mm	120 mm	19 mm	2 mm	4/4,5	Steel	S350	ZM-4
Flat corner iron flat	83108	100 per box	150 mm	150 mm	22 mm	2 mm	6/5,5	Steel	S350	ZM-4
Flat corner iron flat	83308	25 per bunch	200 mm	200 mm	28 mm	2,5 mm	6/6,5	Steel	S350	ZM-4
Flat corner iron flat	83309	25 per bunch	250 mm	250 mm	32 mm	2,5 mm	6/6	Steel	S350	ZM-4
Flat corner iron flat	83310	25 per bunch	300 mm	300 mm	36 mm	4 mm	8/6	Steel	S350	ZM-4
Flat corner iron flat round	83314	1 piece	140 mm	140 mm	20 mm	2 mm	-	Steel	DX51	SV
Flat corner iron flat	83109	25 per box	175 mm	175 mm	22 mm	2 mm	6/5	Steel	DX51	EV
