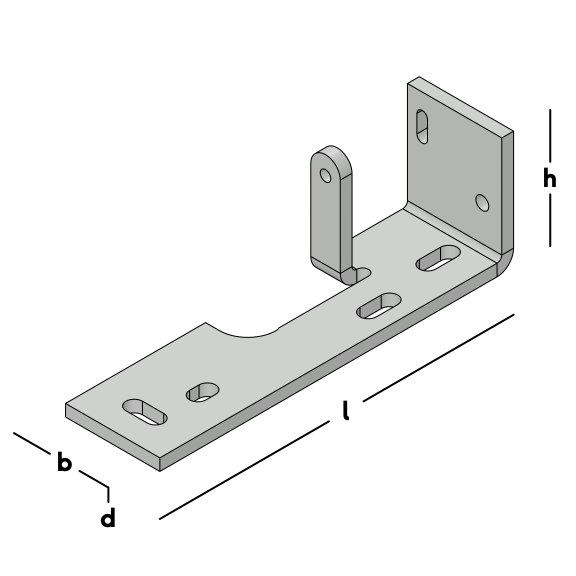

F-anchor 71 mm

Punched anchor for mounting wall panel to the storey floor at the eaves of a pitched roof.

Thickness

8 mm

10 mm

Wood Size width

59 mm

71 mm

Surface treatment

Details & dimensions

Article number079851

EAN code8714318023089

EAN code8714318023089

Packaging1 piece

Length770 mm

Width570 mm

Height510 mm

Length (l)300 mm

Thickness (d)10 mm

Height (h)100 mm

Slotted hole24x9-22x14-3/32x14 mm

Hole pattern1/9-1/11

Wood Size width71 mm

MaterialSteel

Steel QualityS315

Surface treatment

Drawings and models in 2D and 3D

1 / 4

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Lengte	Dikte	Hoogte	Slobgaten	Gatenpatroon	Houtmaat breedte	Materiaal	Staalkwaliteit
F-anker	07984	125 per box	300 mm	8 mm	100 mm	9x24-14x22-3/14x32 mm	1/9-1/11	59 mm	Staal	S315
F-anker	07985	1 piece	300 mm	8 mm	100 mm	9x24-14x22-3/14x32 mm	1/9-1/11	71 mm	Staal	S315
F-anker	079851	1 piece	300 mm	10 mm	100 mm	9x24-14x22-3/14x32 mm	1/9-1/11	71 mm	Staal	S315
F-anker	07986	1 piece	300 mm	8 mm	100 mm	9x24-14x22-3/14x32 mm	1/9-1/11	71 mm	Staal	S315
F-anker	079861	1 piece	300 mm	10 mm	100 mm	9x24-14x22-3/14x32 mm	1/9-1/11	71 mm	Staal	S315
F-anker	079861	250 per pallet	300 mm	10 mm	100 mm	9x24-14x22-3/14x32 mm	1/9-1/11	71 mm	Staal	S315
