F-anchor 71 mm

Punched anchor for mounting wall panel to the storey floor at the eaves of a pitched roof.

Thickness
8 mm
10 mm
Wood Size width
59 mm
71 mm
Surface treatment
EV
TV

Details & dimensions

Article

Article number079861
EAN code8714318998806

Packaging

EAN code8714318045050
Packaging250 per pallet
Length1160 mm
Height710 mm

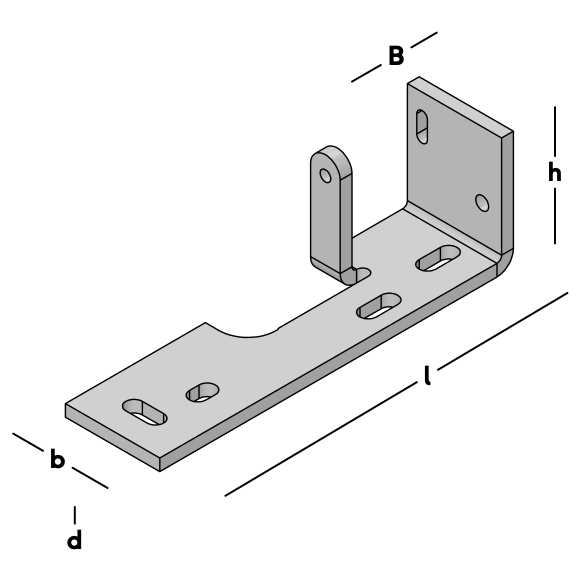

Dimensions

F-anchor 71 mm

Length (l)300 mm
Thickness (d)10 mm
Height (h)100 mm
Slotted hole24x9-22x14-3/32x14 mm
Hole pattern1/9-1/11
Wood Size width71 mm
MaterialSteel
Steel QualityS315
Surface treatmentEV
