Joist Hanger GBS-KL

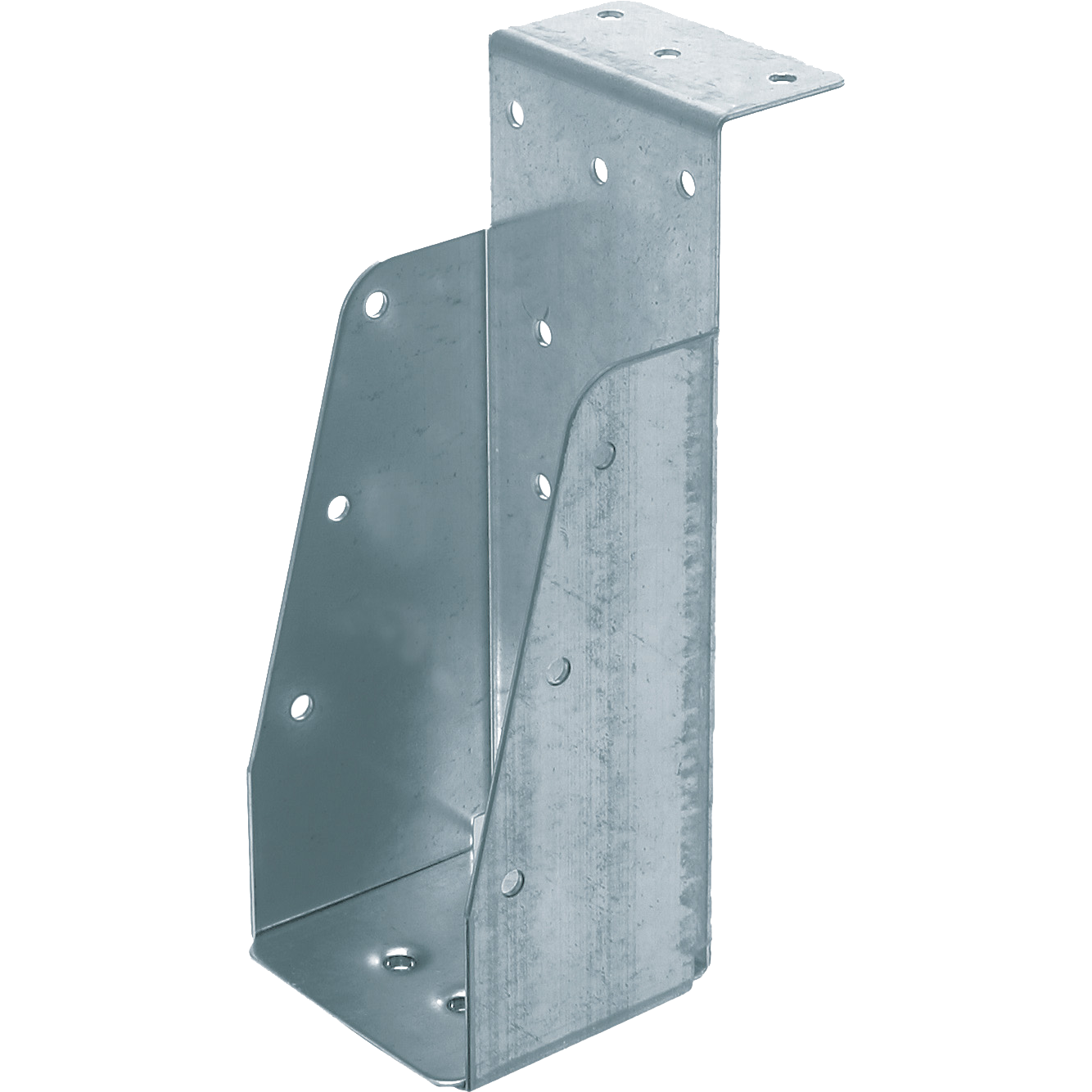

Beam carrier with short lip, for connecting joists to a wooden edge board mounted on the wall. The joist carrier rests with the lip on the edge board and is fixed via the holes in the back. A crossbeam is then inserted and screwed in via the holes in the side.

Thickness

1,5 mm

1.5 mm

Wood Size width

Wood Size height

Surface treatment

SV-2

Details & dimensions

Article

Article number09421

EAN code8714318042455

Packaging

EAN code8714318064457

Packaging10 per bunch

Length305 mm

Width115 mm

Height57 mm

Dimensions

Joist Hanger GBS-KL

Thickness (d)1.5 mm

Hole pattern11/4-2/9-1/14

Wood size50x100 mm

Lip size30 mm

Wood Size width50 mm

Wood Size height100 mm

TypeGBS KL

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Thickness	Hole pattern	Wood size	Lip size	Wood Size width	Wood Size height	Type	Material	Steel Quality
Joist Hanger GBS-KL	09411	10 per bunch	1.5 mm	11/4-2/9-1/14	46x96 mm	30 mm	46 mm	96 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09412	10 per bunch	1.5 mm	14/4-2/9-1/14	46x121 mm	30 mm	46 mm	121 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09413	10 per bunch	1.5 mm	16/4-2/9-1/14	46x146 mm	30 mm	46 mm	146 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09415	10 per bunch	1.5 mm	20/4-2/9-1/14	46x171 mm	30 mm	46 mm	171 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09416	10 per bunch	1.5 mm	20/4-2/9-1/14	46x196 mm	30 mm	46 mm	196 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09421	10 per bunch	1.5 mm	11/4-2/9-1/14	50x100 mm	30 mm	50 mm	100 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09422	10 per bunch	1.5 mm	14/4-2/9-1/14	50x125 mm	30 mm	50 mm	125 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09423	10 per bunch	1.5 mm	16/4-2/9-1/14	50x150 mm	30 mm	50 mm	150 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09425	10 per bunch	1.5 mm	20/4-2/9-1/14	50x175 mm	30 mm	50 mm	175 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09426	10 per bunch	1.5 mm	20/4-2/9-1/14	50x200 mm	30 mm	50 mm	200 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09432	10 per bunch	1.5 mm	15/4-2/9-1/14	59x121 mm	30 mm	59 mm	121 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09433	10 per bunch	1.5 mm	18/4-2/9-1/14	59x146 mm	30 mm	59 mm	146 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09434	10 per bunch	1.5 mm	17/4-2/9-1/14	59x156 mm	30 mm	59 mm	156 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09435	10 per bunch	1.5 mm	20/4-2/9-1/14	59x171 mm	30 mm	59 mm	171 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09436	10 per bunch	1.5 mm	20/4-2/9-1/14	59x196 mm	30 mm	59 mm	196 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09437	10 per bunch	1.5 mm	22/4-2/9-1/14	59x221 mm	30 mm	59 mm	221 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09442	10 per bunch	1.5 mm	15/4-2/9-1/14	63x125 mm	30 mm	63 mm	125 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09443	10 per bunch	1.5 mm	18/4-2/9-1/14	63x150 mm	30 mm	63 mm	150 mm	GBS KL	Steel	DX51
Joist Hanger GBS-DB	09611	1 piece	1.5 mm	22/4-4/9-2/14	-	30 mm	46 mm	96 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09612	1 piece	1.5 mm	28/4-4/9-2/14	-	30 mm	46 mm	121 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09613	1 piece	1.5 mm	32/4-4/9-2/14	-	30 mm	46 mm	146 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09615	1 piece	1.5 mm	40/4-4/9-2/14	-	30 mm	46 mm	171 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09616	1 piece	1.5 mm	40/4-4/9-2/14	-	30 mm	46 mm	196 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09621	1 piece	1.5 mm	22/4-4/9-2/14	-	30 mm	50 mm	100 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09622	1 piece	1.5 mm	28/4-4/9-2/14	-	30 mm	50 mm	125 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09623	1 piece	1.5 mm	32/4-4/9-2/14	-	30 mm	50 mm	150 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09625	1 piece	1.5 mm	36/4-4/9-2/14	-	30 mm	50 mm	175 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09626	1 piece	1.5 mm	40/4-4/9-2/14	-	30 mm	50 mm	200 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09632	1 piece	1.5 mm	30/4-4/9-2/14	-	30 mm	59 mm	121 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09633	1 piece	1.5 mm	36/4-4/9-2/14	-	30 mm	59 mm	146 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09634	1 piece	1.5 mm	36/4-4/9-2/14	-	30 mm	59 mm	156 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09635	1 piece	1.5 mm	40/4-4/9-2/14	-	30 mm	59 mm	171 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09636	1 piece	1.5 mm	40/4-4/9-2/14	-	30 mm	59 mm	196 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09637	1 piece	1.5 mm	44/4-4/9-2/14	-	30 mm	59 mm	221 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09642	1 piece	1.5 mm	36/4-4/9-2/14	-	30 mm	63 mm	125 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09643	1 piece	1.5 mm	36/4-4/9-2/14	-	30 mm	63 mm	150 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09644	1 piece	1.5 mm	36/4-4/9-2/14	-	30 mm	63 mm	160 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09645	1 piece	1.5 mm	40/4-4/9-2/14	-	30 mm	63 mm	175 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09646	1 piece	1.5 mm	40/4-4/9-2/14	-	30 mm	63 mm	200 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09647	1 piece	1.5 mm	48/4-4/9-2/14	-	30 mm	63 mm	225 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09653	1 piece	1.5 mm	38/4-4/9-2/14	-	30 mm	71 mm	146 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09655	1 piece	1.5 mm	38/4-4/9-2/14	-	30 mm	71 mm	171 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-DB	09656	1 piece	1.5 mm	46/4-4/9-4/14	-	30 mm	71 mm	196 mm	GBS-KL	Steel	DX51
Joist Hanger GBS-KL	09453	10 per bunch	1.5 mm	19/4-2/9-1/14	71x146 mm	30 mm	71 mm	146 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09455	10 per bunch	1.5 mm	19/4-2/9-1/14	71x171 mm	30 mm	71 mm	171 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09456	10 per bunch	1.5 mm	23/4-2/9-2/14	71x196 mm	30 mm	71 mm	196 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09457	10 per bunch	1.5 mm	23/4-2/9-2/14	71x221 mm	30 mm	71 mm	221 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09458	10 per bunch	1.5 mm	27/4-3/9-2/14	71x246 mm	30 mm	71 mm	246 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09459	10 per bunch	1.5 mm	27/4-3/9-2/14	71x271 mm	30 mm	71 mm	271 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09463	10 per bunch	1.5 mm	19/4-2/9-1/14	75x150 mm	30 mm	75 mm	150 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09465	10 per bunch	1.5 mm	19/4-2/9-1/14	75x175 mm	30 mm	75 mm	175 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09466	10 per bunch	1.5 mm	23/4-2/9-2/14	75x200 mm	30 mm	75 mm	200 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09467	10 per bunch	1.5 mm	23/4-2/9-2/14	75x225 mm	30 mm	75 mm	225 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09468	10 per bunch	1.5 mm	27/4-3/9-2/14	75x250 mm	30 mm	75 mm	250 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09469	10 per bunch	1.5 mm	27/4-3/9-2/14	75x275 mm	30 mm	75 mm	275 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09476	10 per bunch	1.5 mm	20/4-2/9-2/14	96x196 mm	30 mm	96 mm	196 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09477	10 per bunch	1.5 mm	23/4-2/9-2/14	96x221 mm	30 mm	96 mm	221 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09478	10 per bunch	1.5 mm	25/4-2/9-2/14	96x246 mm	30 mm	96 mm	246 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09486	10 per bunch	1.5 mm	20/4-2/9-2/14	100x200 mm	30 mm	100 mm	200 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09487	10 per bunch	1.5 mm	23/4-2/9-2/14	100x225 mm	30 mm	100 mm	22 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09488	10 per bunch	1.5 mm	25/4-2/9-2/14	100x250 mm	30 mm	100 mm	250 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09401	10 per bunch	1,5 mm	11/5-1/9-1/14	38x89 mm	36 mm	38 mm	89 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09402	10 per bunch	1,5 mm	16/5-2/9-1/14	38x120 mm	36 mm	38 mm	120 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09403	10 per bunch	1,5 mm	18/5-2/9-1/14	38x140 mm	36 mm	38 mm	140 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09404	10 per bunch	1,5 mm	20/5-2/9-1/14	38x170 mm	36 mm	38 mm	170 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09405	10 per bunch	1,5 mm	20/5-2/9-1/14	38x184 mm	36 mm	38 mm	184 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09406	10 per bunch	1,5 mm	20/5-2/9-1/14	38x235 mm	36 mm	38 mm	235 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09407	10 per bunch	1,5 mm	20/5-2/9-1/14	38x285 mm	36 mm	38 mm	285 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09444	10 per bunch	1.5 mm	17/4-2/9-1/14	-	30 mm	63 mm	160 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09445	10 per bunch	1.5 mm	20/4-2/9-1/14	-	30 mm	63 mm	175 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09446	10 per bunch	1.5 mm	20/4-2/9-1/14	-	30 mm	63 mm	200 mm	GBS KL	Steel	DX51
Joist Hanger GBS-KL	09447	10 per bunch	1.5 mm	22/4-2/9-1/14	-	30 mm	63 mm	225 mm	GBS KL	Steel	DX51
