Joist Hanger GBS-KL

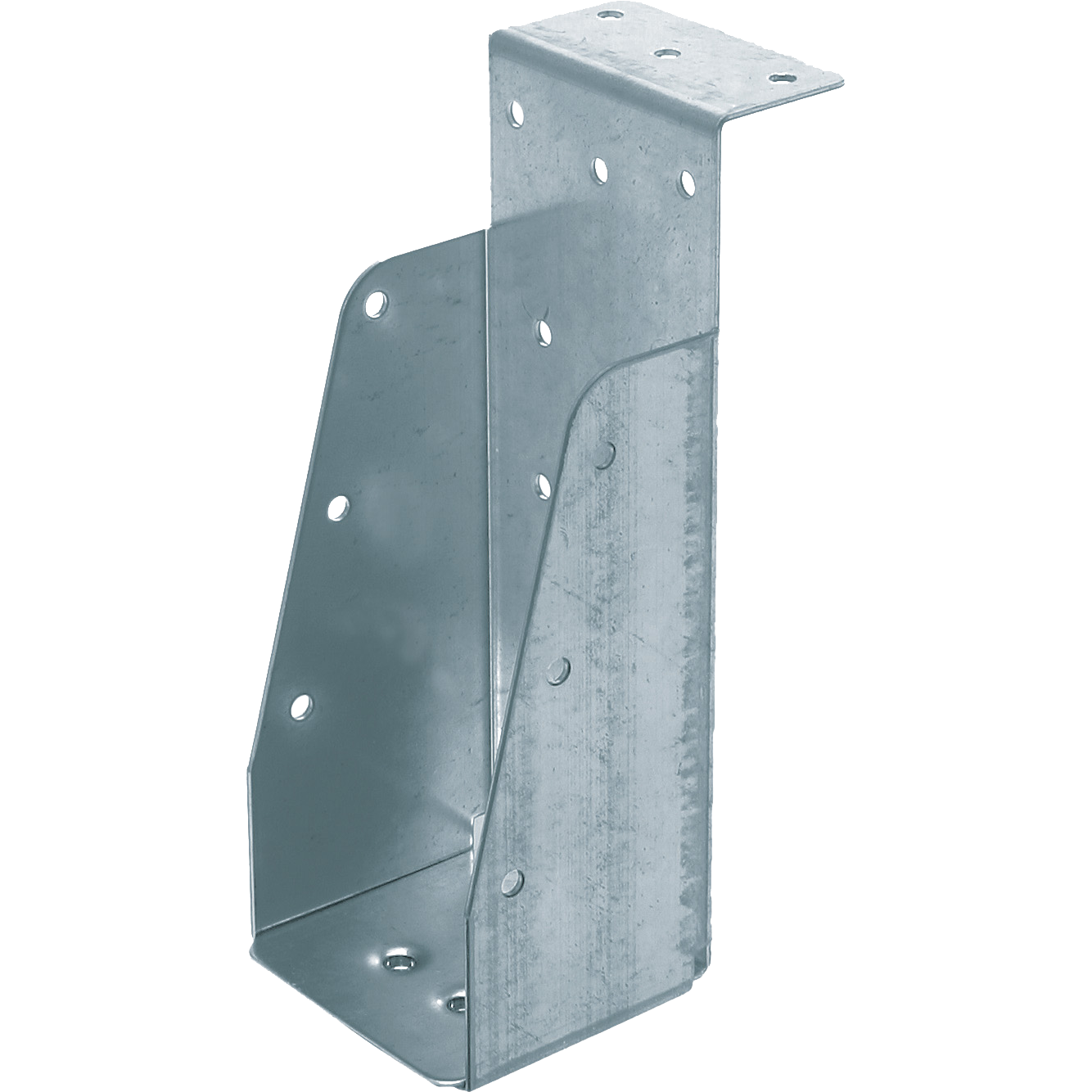

Beam carrier with short lip, for connecting joists to a wooden edge board mounted on the wall. The joist carrier rests with the lip on the edge board and is fixed via the holes in the back. A crossbeam is then inserted and screwed in via the holes in the side.

Thickness

1,5 mm

1.5 mm

Wood Size width

Wood Size height

Surface treatment

SV-2

Details & dimensions

Article

Article number09422

EAN code8714318004453

Packaging

EAN code8714318064464

Packaging10 per bunch

Length295 mm

Width140 mm

Height57 mm

Dimensions

Joist Hanger GBS-KL

Thickness (d)1.5 mm

Hole pattern14/4-2/9-1/14

Wood size50x125 mm

Lip size30 mm

Wood Size width50 mm

Wood Size height125 mm

TypeGBS KL

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Dikte	Gatenpatroon	Houtmaat	Lip maat	Houtmaat breedte	Houtmaat hoogte	D-Tussenmaat	Type	Materiaal	Staalkwaliteit
Balkdrager GBS KL	09411	10 per bunch	1,5 mm	11/4-2/9-1/14	46x96 mm	30 mm	46 mm	96 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09412	10 per bunch	1,5 mm	14/4-2/9-1/14	46x121 mm	30 mm	46 mm	121 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09413	10 per bunch	1,5 mm	16/4-2/9-1/14	46x146 mm	30 mm	46 mm	146 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09415	10 per bunch	1,5 mm	20/4-2/9-1/14	46x171 mm	30 mm	46 mm	171 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09416	10 per bunch	1,5 mm	20/4-2/9-1/14	46x196 mm	30 mm	46 mm	196 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09421	10 per bunch	1,5 mm	11/4-2/9-1/14	50x100 mm	30 mm	50 mm	100 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09422	10 per bunch	1,5 mm	14/4-2/9-1/14	50x125 mm	30 mm	50 mm	125 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09423	10 per bunch	1,5 mm	16/4-2/9-1/14	50x150 mm	30 mm	50 mm	150 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09425	10 per bunch	1,5 mm	20/4-2/9-1/14	50x175 mm	30 mm	50 mm	175 mm	-	GBS KL	Staal	DX51
Balkdrager GBS-KL	09426	10 per bunch	1,5 mm	20/4-2/9-1/14	50x200 mm	30 mm	50 mm	200 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09432	10 per bunch	1,5 mm	15/4-2/9-1/14	59x121 mm	30 mm	59 mm	121 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09433	10 per bunch	1,5 mm	18/4-2/9-1/14	59x146 mm	30 mm	59 mm	146 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09434	10 per bunch	1,5 mm	17/4-2/9-1/14	59x156 mm	30 mm	59 mm	156 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09435	10 per bunch	1,5 mm	20/4-2/9-1/14	59x171 mm	30 mm	59 mm	171 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09436	10 per bunch	1,5 mm	20/4-2/9-1/14	59x196 mm	30 mm	59 mm	196 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09437	10 per bunch	1,5 mm	22/4-2/9-1/14	59x221 mm	30 mm	59 mm	221 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09442	10 per bunch	1,5 mm	15/4-2/9-1/14	63x125 mm	30 mm	63 mm	125 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09443	10 per bunch	1,5 mm	18/4-2/9-1/14	63x150 mm	30 mm	63 mm	150 mm	-	GBS KL	Staal	DX51
Balkdrager GBS DB	09611	1 piece	1,5 mm	22/4-4/9-2/14	-	30 mm	46 mm	96 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09612	1 piece	1,5 mm	28/4-4/9-2/14	-	30 mm	46 mm	121 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09613	1 piece	1,5 mm	32/4-4/9-2/14	-	30 mm	46 mm	146 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09615	1 piece	1,5 mm	40/4-4/9-2/14	-	30 mm	46 mm	171 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09616	1 piece	1,5 mm	40/4-4/9-2/14	-	30 mm	46 mm	196 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09621	1 piece	1,5 mm	22/4-4/9-2/14	-	30 mm	50 mm	100 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09622	1 piece	1,5 mm	28/4-4/9-2/14	-	30 mm	50 mm	125 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09623	1 piece	1,5 mm	32/4-4/9-2/14	-	30 mm	50 mm	150 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09625	1 piece	1,5 mm	36/4-4/9-2/14	-	30 mm	50 mm	175 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09626	1 piece	1,5 mm	40/4-4/9-2/14	-	30 mm	50 mm	200 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09632	1 piece	1,5 mm	30/4-4/9-2/14	-	30 mm	59 mm	121 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09633	1 piece	1,5 mm	36/4-4/9-2/14	-	30 mm	59 mm	146 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09634	1 piece	1,5 mm	36/4-4/9-2/14	-	30 mm	59 mm	156 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09635	1 piece	1,5 mm	40/4-4/9-2/14	-	30 mm	59 mm	171 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09636	1 piece	1,5 mm	40/4-4/9-2/14	-	30 mm	59 mm	196 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09637	1 piece	1,5 mm	44/4-4/9-2/14	-	30 mm	59 mm	221 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09642	1 piece	1,5 mm	36/4-4/9-2/14	-	30 mm	63 mm	125 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09643	1 piece	1,5 mm	36/4-4/9-2/14	-	30 mm	63 mm	150 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09644	1 piece	1,5 mm	36/4-4/9-2/14	-	30 mm	63 mm	160 mm	-	GBS-KL	Staal	DX51
Balkdrager GBS DB	09645	1 piece	1,5 mm	40/4-4/9-2/14	-	30 mm	63 mm	175 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09646	1 piece	1,5 mm	40/4-4/9-2/14	-	30 mm	63 mm	200 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09647	1 piece	1,5 mm	48/4-4/9-2/14	-	30 mm	63 mm	225 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09653	1 piece	1,5 mm	38/4-4/9-2/14	-	30 mm	71 mm	146 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09655	1 piece	1,5 mm	38/4-4/9-2/14	-	30 mm	71 mm	171 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS DB	09656	1 piece	1,5 mm	46/4-4/9-4/14	-	30 mm	71 mm	196 mm	60-180 mm	GBS-KL	Staal	DX51
Balkdrager GBS KL	09453	10 per bunch	1,5 mm	19/4-2/9-1/14	71x146 mm	30 mm	71 mm	146 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09455	10 per bunch	1,5 mm	19/4-2/9-1/14	71x171 mm	30 mm	71 mm	171 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09456	10 per bunch	1,5 mm	23/4-2/9-2/14	71x196 mm	30 mm	71 mm	196 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09457	10 per bunch	1,5 mm	23/4-2/9-2/14	71x221 mm	30 mm	71 mm	221 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09458	10 per bunch	1,5 mm	27/4-3/9-2/14	71x246 mm	30 mm	71 mm	246 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09459	10 per bunch	1,5 mm	27/4-3/9-2/14	71x271 mm	30 mm	71 mm	271 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09463	10 per bunch	1,5 mm	19/4-2/9-1/14	75x150 mm	30 mm	75 mm	150 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09465	10 per bunch	1,5 mm	19/4-2/9-1/14	75x175 mm	30 mm	75 mm	175 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09466	10 per bunch	1,5 mm	23/4-2/9-2/14	75x200 mm	30 mm	75 mm	200 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09467	10 per bunch	1,5 mm	23/4-2/9-2/14	75x225 mm	30 mm	75 mm	225 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09468	10 per bunch	1,5 mm	27/4-3/9-2/14	75x250 mm	30 mm	75 mm	250 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09469	10 per bunch	1,5 mm	27/4-3/9-2/14	75x275 mm	30 mm	75 mm	275 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09476	10 per bunch	1,5 mm	20/4-2/9-2/14	96x196 mm	30 mm	96 mm	196 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09477	10 per bunch	1,5 mm	23/4-2/9-2/14	96x221 mm	30 mm	96 mm	221 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09478	10 per bunch	1,5 mm	25/4-2/9-2/14	96x246 mm	30 mm	96 mm	246 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09486	10 per bunch	1,5 mm	20/4-2/9-2/14	100x200 mm	30 mm	100 mm	200 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09487	10 per bunch	1,5 mm	23/4-2/9-2/14	100x225 mm	30 mm	100 mm	22 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09488	10 per bunch	1,5 mm	25/4-2/9-2/14	100x250 mm	30 mm	100 mm	250 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09401	10 per bunch	1,5 mm	11/5-1/9-1/14	38x89 mm	36 mm	38 mm	89 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09402	10 per bunch	1,5 mm	16/5-2/9-1/14	38x120 mm	36 mm	38 mm	120 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09403	10 per bunch	1,5 mm	18/5-2/9-1/14	38x140 mm	36 mm	38 mm	140 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09404	10 per bunch	1,5 mm	20/5-2/9-1/14	38x170 mm	36 mm	38 mm	170 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09405	10 per bunch	1,5 mm	20/5-2/9-1/14	38x184 mm	36 mm	38 mm	184 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09406	10 per bunch	1,5 mm	20/5-2/9-1/14	38x235 mm	36 mm	38 mm	235 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09407	10 per bunch	1,5 mm	20/5-2/9-1/14	38x285 mm	36 mm	38 mm	285 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09444	10 per bunch	1,5 mm	17/4-2/9-1/14	-	30 mm	63 mm	160 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09445	10 per bunch	1,5 mm	20/4-2/9-1/14	-	30 mm	63 mm	175 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09446	10 per bunch	1,5 mm	20/4-2/9-1/14	-	30 mm	63 mm	200 mm	-	GBS KL	Staal	DX51
Balkdrager GBS KL	09447	10 per bunch	1,5 mm	22/4-2/9-1/14	-	30 mm	63 mm	225 mm	-	GBS KL	Staal	DX51
