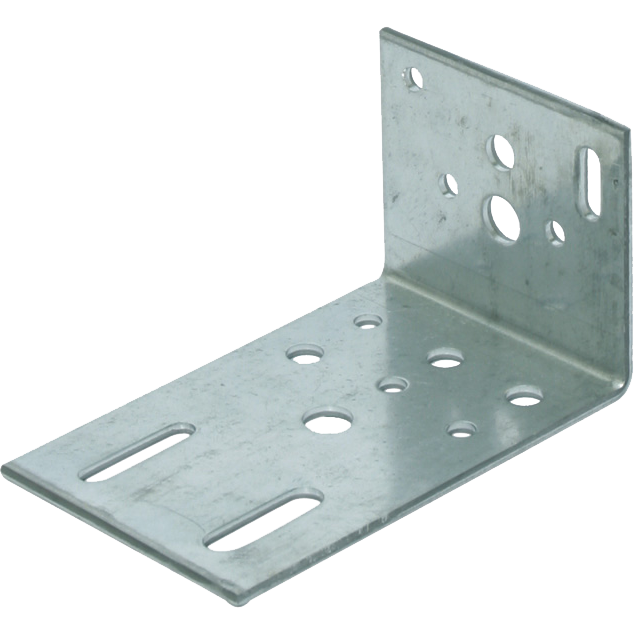

Angle bracket

Corner anchors are primarily used for the style assembly of window frames. Universally applicable and compatible with common fasteners.

Length 1

Length 2

Width

Thickness

Slotted hole

Slotted holes diagonal

Material

RVS 304

RVS 316

Steel

Steel Quality

Surface treatment

Details & dimensions

Article

Article number07149

EAN code8714318040451

Packaging

EAN code8714318114367

Packaging100 per box

Length270 mm

Width220 mm

Height70 mm

Dimensions

Angle bracket

Length 1 (l1)50 mm

Length 2 (l2)90 mm

Width (b)60 mm

Thickness (d)2 mm

Slotted hole12x4-24x6-24x8,5 mm

Hole pattern6/4-4/6-2/9

MaterialRVS 304

Steel QualityW-Nr.:1.4301
