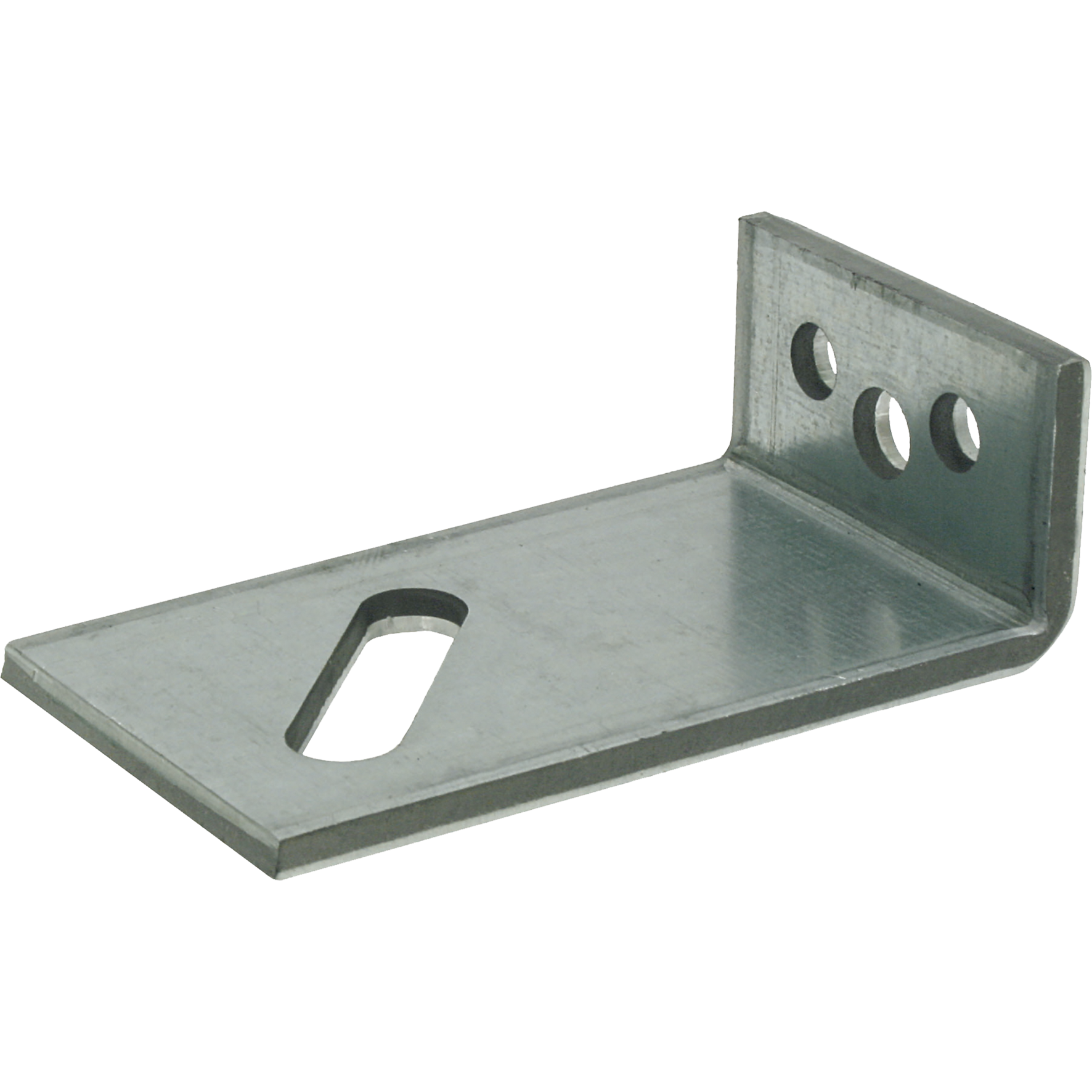

A heavy corner anchor with a hole pattern that matches the required and common fasteners. The diagonal slotted hole makes it simple to adjust and fix. These corner anchors are manufactured from thick steel allowing them to withstand high loads.
Length 1
Length 2
Width
Thickness
Slotted hole
Slotted holes diagonal
Material
RVS 304
RVS 316
Steel
Steel Quality
Surface treatment
Details & dimensions
Article
Article number0756745
EAN code8714318046781
Packaging
EAN code8714318046798
Packaging30 per bag
Length250 mm
Width400 mm
Height120 mm
Dimensions
Concrete angle bracket
Length 1 (l1)40 mm
Length 2 (l2)120 mm
Width (b)70 mm
Thickness (d)6 mm
Slotted hole50x13 dia. mm
Hole pattern2/9-1/11
Slotted holes diagonal50x13 mm
MaterialSteel
Steel QualityDX51
Surface treatment
