Concrete angle bracket

Heavy corner anchor that is primarily used for bottom lintel mounting of large window frames. The slotted hole in the corner anchor makes positioning the corner anchor easier.

Length 1

Length 2

Width

Thickness

Slotted hole

Slotted holes diagonal

Material

RVS 304

RVS 316

Steel

Steel Quality

Surface treatment

Details & dimensions

Article

Article number072406

EAN code8714318078935

Packaging

EAN code8714318078942

Packaging50 per bag

Length400 mm

Width300 mm

Height200 mm

Dimensions

Concrete angle bracket

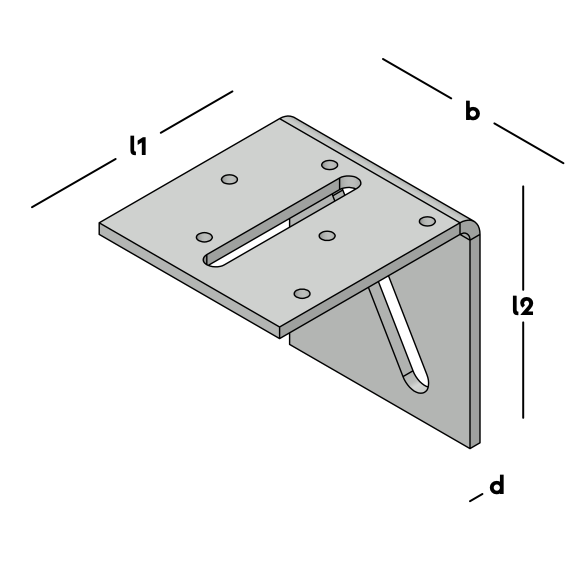

Length 1 (l1)80 mm

Length 2 (l2)80 mm

Width (b)72 mm

Thickness (d)4 mm

Slotted hole7x60-13x67 diag. mm

Hole pattern6/4,5

Slotted holes diagonal13x67 mm

MaterialSteel

Steel QualityS350

Surface treatment
