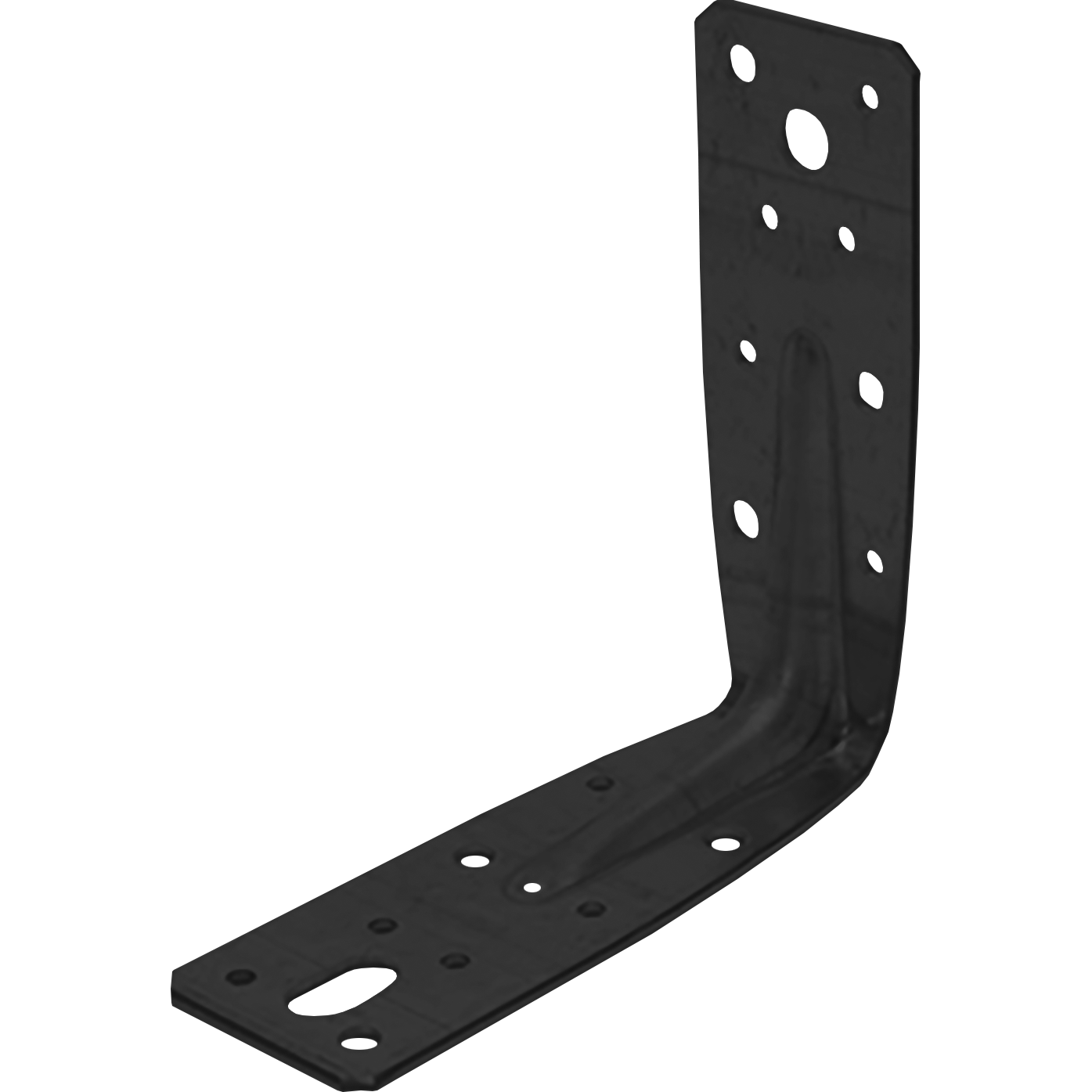

Fish plate ridged

Corner anchors primarily used to secure window frames to posts and lintels. A rill is installed in the corner anchor for added strength and stability. Universally applicable and compatible with common fasteners.

Length 1

Length 2

Width

Thickness

Slotted hole

Slotted holes diagonal

Material

RVS 304

RVS 316

Steel

Steel Quality

Surface treatment

Details & dimensions

Article

Article number072261

EAN code8714318080655

Packaging

EAN code8714318083540

Packaging50 per box

Length270 mm

Width220 mm

Height70 mm

Dimensions

Fish plate ridged

Length 1 (l1)125 mm

Length 2 (l2)125 mm

Width (b)46 mm

Thickness (d)2,5 mm

Slotted hole10x20 mm

Hole pattern10/4-6/6-1/11

MaterialSteel

Steel QualityDX51

Surface treatment EPZ-3
