Angle bracket

Name: Angle bracket
SKU: 0759746

Corner anchors primarily used to secure window frames to posts and lintels. A rill is installed in the corner anchor for added strength and stability. Universally applicable and compatible with common fasteners.

Length 1

Length 2

Width

Thickness

Slotted hole

Slotted holes diagonal

Material

RVS 304

RVS 316

Steel

Steel Quality

Surface treatment

Details & dimensions

Article

Article number0759746

EAN code8714318031282

Packaging

EAN code8714318137663

Packaging20 per box

Length425 mm

Width135 mm

Height85 mm

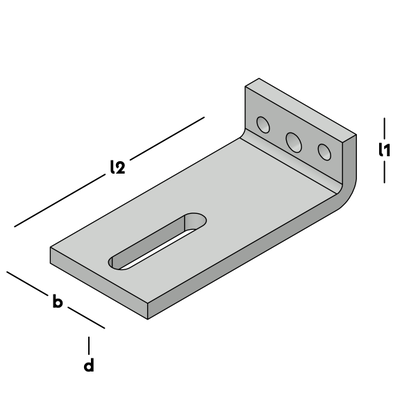

Dimensions

Angle bracket

Length 1 (l1)40 mm

Length 2 (l2)150 mm

Width (b)70 mm

Thickness (d)10 mm

Slotted hole13x65 mm

Hole pattern2/9-1/11

MaterialSteel

Steel QualityS315

Surface treatment TV-3

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 12

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Length	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Creasing	Slotted holes diagonal	Square hole	Material	Steel Quality	Surface treatment
Angle bracket	070220	100 per box	-	90 mm	90 mm	60 mm	2,5 mm	11x30 mm	10/4-6/6-4/9-1/11	-	-	-	Steel	S350	ZM-4
Angle bracket ridged	070229	50 per box	-	150 mm	150 mm	60 mm	2,5 mm	2/11x30 mm	15/4-10/6-5/9	-	-	-	Steel	S350	ZM-4
Angle bracket ridged	070230	100 per box	-	90 mm	90 mm	60 mm	2,5 mm	11x30 mm	10/4-6/6-4/9-1/11	-	-	-	Steel	S350	ZM-4
Angle bracket	070301	100 per box	-	40 mm	60 mm	60 mm	2,5 mm	11x30 mm	10/4-2/6-2/9-1/11	-	-	-	Steel	S350	ZM-4
Angle bracket	070302	100 per box	-	80 mm	100 mm	60 mm	2,5 mm	2/13x50 mm	14/5	-	-	-	Steel	S350	ZM-4
Angle bracket	07122	100 per box	-	90 mm	90 mm	60 mm	2 mm	11x30 mm	14/4-6/6-4/9-1/11	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket ridged	07123	100 per box	-	90 mm	90 mm	60 mm	2 mm	11x30 mm	14/4-6/6-4/9-1/11	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket ridged	07124	100 per box	-	90 mm	90 mm	60 mm	2 mm	11x30 mm	14/4-6/6-4/9-1/11	-	-	-	RVS 316	W-Nr.:1.4404	-
Angle bracket	07130	100 per box	-	40 mm	60 mm	60 mm	2 mm	11x30 mm	10/4-2/6-2/9-1/11	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07131	100 per box	90 mm	40 mm	60 mm	60 mm	2 mm	11x30 mm	10/4-2/6-2/9-1/11	-	-	-	RVS 316	W-Nr.:1.4404	-
Angle bracket	07132	100 per box	-	40 mm	100 mm	60 mm	2 mm	12x40 mm	12/4-1/11	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07136	100 per box	-	50 mm	50 mm	60 mm	2 mm	9x30-12x30 mm	12/4	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07149	100 per box	-	50 mm	90 mm	60 mm	2 mm	4x12-6x24-8,5x24 mm	6/4-4/6-2/9	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	072215	100 per box	-	70 mm	70 mm	60 mm	2 mm	11x25 mm	1/9-8/7-4/5	-	-	-	Steel	DX51	SV-2
Angle bracket ridged	072216	100 per box	-	70 mm	70 mm	60 mm	2 mm	11x25 mm	1/9-8/7-4/5	-	-	-	Steel	DX51	SV-2
Angle bracket	072220	100 per box	-	90 mm	90 mm	60 mm	2,5 mm	11x30 mm	10/4-6/6-4/9-1/11	-	-	-	Steel	DX51	SV-2
Angle bracket	072222	100 per box	-	90 mm	90 mm	60 mm	2 mm	11x30 mm	14/4-6/6-4/9-1/11	-	-	-	Steel	DX51	SV-2
Angle bracket ridged	072230	100 per box	-	90 mm	90 mm	60 mm	2,5 mm	11x30 mm	10/4-6/6-4/9-1/11	-	-	-	Steel	DX51	SV-2
Angle bracket ridged	072232	100 per box	-	90 mm	90 mm	60 mm	2 mm	11x30 mm	14/4-6/6-4/9-1/11	-	-	-	Steel	DX51	SV-2
Angle bracket ridged	072233	100 per box	-	90 mm	90 mm	60 mm	2,5 mm	11x30 mm	10/4-6/6-4/9-1/11	-	-	-	Steel	DX51	EPZ-3
Fish plate	07225	50 per box	-	125 mm	125 mm	46 mm	2,5 mm	10x20 mm	10/4-6/6-1/11	-	-	-	Steel	DX51	SV-2
Fish plate ridged	07226	50 per box	-	125 mm	125 mm	60 mm	2,5 mm	10x20 mm	10/4-6/6-1/11	-	-	-	Steel	DX51	SV-2
Fish plate ridged	072261	50 per box	-	125 mm	125 mm	46 mm	2,5 mm	10x20 mm	10/4-6/6-1/11	-	-	-	Steel	DX51	EPZ-3
Angle bracket	07228	50 per box	-	150 mm	150 mm	60 mm	2,5 mm	2/11x30 mm	15/4-10/6-5/9	-	-	-	Steel	DX51	SV-2
Angle bracket ridged	07229	50 per box	-	150 mm	150 mm	60 mm	2,5 mm	2/11x30 mm	15/4-10/6-5/9	-	-	-	Steel	DX51	SV-2
Angle bracket	072300	50 per box	-	27 mm	68 mm	60 mm	2 mm	13x40 mm	6/5,5-1/9	-	-	-	Steel	DX51	SV-2
Angle bracket	072301	100 per box	-	40 mm	60 mm	60 mm	2,5 mm	11x30 mm	10/4-2/6-2/9-1/11	-	-	-	Steel	DX51	SV-2
Angle bracket	072302	100 per box	-	40 mm	60 mm	60 mm	2 mm	11x30 mm	10/4-2/6-2/9-1/11	-	-	-	Steel	DX51	SV-2
Angle bracket	072303	100 per box	-	40 mm	60 mm	60 mm	2,5 mm	11x30 mm	10/4-2/6-2/9-1/11	-	-	-	Steel	DX51	EPZ-3
Angle bracket	07231	100 per box	-	60 mm	60 mm	60 mm	2 mm	2/11x30 mm	9/4,5-4/6,5-1/9	-	-	-	Steel	DX51	SV-2
Angle bracket	07232	100 per box	-	40 mm	100 mm	60 mm	2,5 mm	12x40 mm	12/4-1/11	-	-	-	Steel	DX51	SV-2
Angle bracket	07233	100 per box	-	50 mm	75 mm	60 mm	2 mm	-	8/4-4/6-2/9	-	-	-	Steel	DX51	SV-2
Angle bracket	07234	100 per box	-	40 mm	80 mm	46 mm	2,5 mm	9x30 mm	6/6	-	-	-	Steel	DX51	SV-2
Angle bracket	072350	100 per box	-	50 mm	110 mm	60 mm	3 mm	11x32 mm	10/5	-	2/50x13 mm	-	Steel	S350	SV-2
Angle bracket	072354	100 per box	-	55 mm	85 mm	60 mm	2,5 mm	9x32-9x50 mm	10/5	-	-	-	Steel	S350	ZM-4
Angle bracket	072355	100 per box	-	60 mm	80 mm	60 mm	2,5 mm	13x32-13x50 mm	10/5	-	-	-	Steel	DX51	SV-2
Angle bracket	072356	100 per box	-	60 mm	80 mm	60 mm	2,5 mm	13x32-13x50 mm	10/5	-	-	-	Steel	S350	ZM-4
Angle bracket	07236	100 per box	-	50 mm	50 mm	60 mm	2,5 mm	9x30-12x30 mm	12/4	-	-	-	Steel	DX51	SV-2
Angle bracket	0723610	100 per box	-	50 mm	50 mm	58 mm	2 mm	9x30-12x30 mm	12/4	-	-	-	Steel	DX51	SV-2
Angle bracket	07237	50 per box	-	90 mm	150 mm	60 mm	2,5 mm	11x30 mm	12/4-8/6-5/9-2/11	-	-	-	Steel	DX51	SV-2
Angle bracket	072375	50 per box	-	40 mm	200 mm	60 mm	2,5 mm	11x30 mm	12/4-8/6-5/9-2/11	-	-	-	Steel	DX51	SV-2
Angle bracket	072381	100 per box	-	60 mm	80 mm	60 mm	2,5 mm	11x25 mm	4/4-8/6-1/9	1 ril	-	-	Steel	DX51	SV-2
Angle bracket	072383	100 per box	-	60 mm	120 mm	60 mm	2,5 mm	2/11x25 mm	6/4-11/6-1/9	1 ril	-	-	Steel	DX51	SV-2
Angle bracket	072385	50 per box	-	60 mm	180 mm	60 mm	2,5 mm	3/11x25 mm	8/4-14/6-1/9	1 ril	-	-	Steel	DX51	SV-2
Angle bracket ridged	07239	50 per box	-	90 mm	150 mm	60 mm	2,5 mm	11x30 mm	12/4-8/6-5/9-2/11	1 ril	-	-	Steel	DX51	SV-2
Angle bracket ridged	07244	100 per box	-	75 mm	125 mm	30 mm	2 mm	-	10/4-2/9	-	-	-	Steel	DX51	SV-2
Angle bracket ridged	07245	100 per box	-	90 mm	160 mm	30 mm	2 mm	-	12/4-1/7-2/9	-	-	-	Steel	DX51	SV-2
Angle bracket	07249	100 per box	-	50 mm	90 mm	60 mm	2,5 mm	4,5x13-6,5x24-8,5x24 mm	6/4,5-4/6,5-2/8,5	-	-	-	Steel	DX51	SV-2
Angle bracket 100°	072491	100 per box	-	50 mm	90 mm	60 mm	2,5 mm	2/10,5x30 mm	8/5	-	-	-	Steel	DX51	SV-2
	0724912	100 per box	-	50 mm	90 mm	60 mm	2,5 mm	2/10,5x30 mm	8/5	-	-	-	Steel	DX51	EPZ-3
Angle bracket	072492	100 per box	-	50 mm	90 mm	60 mm	2,5 mm	4x12-6x24-8,5x24 mm	6/4-4/6-2/9	-	-	-	Steel	DX51	EPZ-3
Concrete angle bracket	072401	75 per bag	-	45 mm	80 mm	72 mm	4 mm	7x30-13x67 diag. mm	4/4,5	-	-	-	Steel	S350	ZM-4
Concrete angle bracket	072403	75 per bag	-	45 mm	80 mm	72 mm	4 mm	7x30-11x67 diag. mm	4/4,5	-	11x67 mm	-	Steel	S350	ZM-4
Concrete angle bracket	072405	50 per bag	-	80 mm	80 mm	72 mm	4 mm	11x67 diag. mm	6/4,5	-	11x67 mm	-	Steel	S350	ZM-4
Concrete angle bracket	072406	50 per bag	-	80 mm	80 mm	72 mm	4 mm	7x60-13x67 diag. mm	6/4,5	-	13x67 mm	-	Steel	S350	ZM-4
Concrete angle bracket	072407	30 per bag	-	80 mm	80 mm	100 mm	5 mm	2/8x50-13x50 diag. mm	-	-	13x50 mm	-	Steel	S350	ZM-4
Concrete angle bracket	072408	20 per box	-	80 mm	80 mm	100 mm	8 mm	2/8x50-13x50 diag. mm	-	-	-	-	Steel	S315	TV-3
Angle bracket	07241	25 per box	-	55 mm	105 mm	50 mm	5 mm	13x40 mm	4/6,5-1/11	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	07242	50 per box	-	55 mm	80 mm	40 mm	4 mm	9x30 mm	2/6,5-1/9	-	-	-	Steel	S350	SV-2
Concrete angle bracket	07243	50 per box	-	30 mm	100 mm	60 mm	4 mm	13x40 mm	8/5,5	-	-	-	Steel	S350	SV-2
Angle bracket	072455	25 per box	-	60 mm	60 mm	60 mm	5 mm	4/9x25 mm	-	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	07246	25 per box	-	65 mm	105 mm	60 mm	4 mm	13x40 mm	10/5,5-1/9	-	-	-	Steel	S350	SV-2
Concrete angle bracket	07247	25 per box	-	65 mm	155 mm	60 mm	4 mm	13x40 mm	13/5,5-2/9	-	-	-	Steel	S350	SV-2
Concrete angle bracket	0724812	10 per box	-	95 mm	210 mm	60 mm	6 mm	9x60-12x180 mm	4/6,5-5/7	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0724813	10 per box	-	95 mm	180 mm	60 mm	6 mm	6x90-12x145 open mm	4/6,5-4/7	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0724814	10 per box	-	65 mm	180 mm	60 mm	6 mm	12x145 open mm	4/6-2/9-1/13	-	-	-	Steel	DX51	SV-2
Angle bracket	0724815	10 per box	-	70 mm	140 mm	65 mm	5 mm	2/12x12 vierkant mm	1/5-1/7	-	-	2/12x12 mm	Steel	DX51	SV-2
Concrete angle bracket	0724818	10 per box	-	80 mm	190 mm	60 mm	6 mm	13x65 mm	4/9-1/11-2/14	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0724819	10 per box	-	80 mm	225 mm	60 mm	6 mm	13x65 mm	4/9-1/11-3/14	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0724822	10 per box	-	95 mm	210 mm	60 mm	5 mm	9x60-12x180 mm	4/6,5-5/7	-	-	-	Steel	S350	ZM-4
Concrete angle bracket	0724832	10 per box	-	80 mm	190 mm	60 mm	8 mm	13x65 mm	4/9-1/11-2/14	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0724833	10 per box	-	80 mm	225 mm	60 mm	8 mm	13x65 mm	4/9-1/11-3/14	-	-	-	Steel	S315	TV-3
Angle bracket	074460	25 per box	-	40 mm	115 mm	60 mm	5 mm	2/9x20 mm	3/9	-	-	-	Steel	S235	TV-3
Angle bracket	0759915	5 per bunch	-	100 mm	150 mm	100 mm	10 mm	-	2/10-2/16	-	-	-	Steel	S315	TV-3
Angle bracket	0759920	5 per bunch	-	100 mm	200 mm	100 mm	10 mm	-	2/10-3/16	-	-	-	Steel	S315	TV-3
Angle bracket	0758879	10 per bag	-	75 mm	175 mm	100 mm	8 mm	13x80 mm	4/9	-	-	-	Steel	S315	EV-2
Concrete angle bracket	07587660	25 per bag	-	60 mm	100 mm	70 mm	8 mm	13x65 mm	2/9-1/11	-	-	-	Steel	S315	EV-2
Concrete angle bracket	0758767	25 per box	-	60 mm	100 mm	70 mm	8 mm	17x70 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0756643	30 per bag	-	40 mm	120 mm	60 mm	6 mm	13x65 mm	2/9-1/11	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0756646	30 per bag	-	40 mm	150 mm	60 mm	6 mm	13x65 mm	2/9-1/11	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0756647	30 per bag	-	40 mm	150 mm	60 mm	6 mm	17x70 mm	2/9-1/11	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0756666	30 per bag	-	60 mm	100 mm	60 mm	6 mm	13x65 mm	2/9-1/11	-	-	-	Steel	DX51	SV-2
Angle bracket	0756656	10 per bunch	-	50 mm	150 mm	110 mm	6 mm	13x65 mm	3/11	-	-	-	Steel	S350	ZM-4
Concrete angle bracket	0756667	30 per bag	-	60 mm	100 mm	60 mm	6 mm	17x70 mm	2/9-1/11	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0756676	30 per bag	-	70 mm	120 mm	60 mm	6 mm	13x65 mm	2/9-1/11	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0756677	30 per bag	-	70 mm	120 mm	60 mm	6 mm	17x70 mm	2/9-1/11	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0756696	30 per bag	-	90 mm	100 mm	60 mm	6 mm	13x65 mm	2/9-1/11	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0756697	30 per bag	-	90 mm	100 mm	60 mm	6 mm	17x70 mm	2/9-1/11	-	-	-	Steel	DX51	SV-2
Concrete angle bracket	0758546	25 per bag	-	40 mm	150 mm	50 mm	8 mm	13x65 mm	1/11	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0758566	25 per bag	-	60 mm	100 mm	50 mm	8 mm	13x65 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0758576	25 per bag	-	70 mm	120 mm	50 mm	8 mm	13x65 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0758746	25 per box	-	40 mm	150 mm	70 mm	8 mm	13x65 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Concrete angle bracket	07587460	25 per box	-	40 mm	150 mm	70 mm	8 mm	13x65 mm	2/9-1/11	-	-	-	Steel	S315	EV-2
Concrete angle bracket	0758747	25 per bag	-	40 mm	150 mm	70 mm	8 mm	17x70 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0758766	25 per bag	-	60 mm	100 mm	70 mm	8 mm	13x65 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0756745	30 per bag	-	40 mm	120 mm	70 mm	6 mm	13x50 diag. mm	2/9-1/11	-	50x13 mm	-	Steel	DX51	SV-2
Concrete angle bracket	0756765	30 per bag	-	60 mm	100 mm	70 mm	6 mm	13x50 diag. mm	2/9-1/11	-	50x13 mm	-	Steel	DX51	SV-2
Concrete angle bracket	0756766	30 per bag	-	60 mm	100 mm	70 mm	6 mm	17x50 diag. mm	2/9-1/11	-	50x17 mm	-	Steel	DX51	SV-2
Concrete angle bracket	0756775	30 per bag	-	70 mm	120 mm	70 mm	6 mm	13x50 diag. mm	2/9-1/11	-	50x13 mm	-	Steel	DX51	SV-2
Concrete angle bracket	0756795	30 per bag	-	90 mm	100 mm	70 mm	6 mm	13x50 diag. mm	2/9-1/11	-	50x13 mm	-	Steel	DX51	SV-2
Concrete angle bracket	0758748	25 per box	-	40 mm	150 mm	70 mm	8 mm	13x50 diag. mm	2/9-1/11	-	50x13 mm	-	Steel	S315	TV-3
Concrete angle bracket	0758768	25 per bag	-	60 mm	100 mm	70 mm	8 mm	13x50 diag. mm	2/9-1/11	-	50x13 mm	-	Steel	S315	TV-3
Concrete angle bracket	0758774	15 per box	-	140 mm	170 mm	70 mm	8 mm	13x65 mm	8/9-3/13	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0758775	25 per bag	-	70 mm	120 mm	70 mm	8 mm	17x70 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0758776	25 per bag	-	70 mm	120 mm	70 mm	8 mm	13x65 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Concrete angle bracket	07587760	25 per box	-	70 mm	120 mm	70 mm	8 mm	13x65 mm	2/9-1/11	-	-	-	Steel	S315	EV-2
Concrete angle bracket	07587761	25 per box	-	70 mm	120 mm	70 mm	8 mm	13x50 diag. mm	2/9-1/11	-	50x13 mm	-	Steel	S315	TV-3
Angle bracket	07587762	15 per bag	-	70 mm	150 mm	100 mm	8 mm	13x80 mm	4/9	-	-	-	Steel	S315	EV-2
Angle bracket	0758777	15 per box	-	100 mm	170 mm	70 mm	8 mm	13x65 mm	4/9-2/13	-	-	-	Steel	S315	TV-3
Angle bracket	0758778	15 per bag	-	120 mm	170 mm	70 mm	8 mm	13x65 mm	6/9-2/13	-	-	-	Steel	S315	TV-3
Angle bracket	0758779	15 per bag	-	160 mm	170 mm	70 mm	8 mm	13x65 mm	10/9-3/13	-	-	-	Steel	S315	TV-3
Angle bracket	0758780	10 per bunch	-	100 mm	180 mm	70 mm	8 mm	17x50-16x80 diag. mm	-	-	50x17-80x16 mm	-	Steel	S315	TV-3
Angle bracket	0758781	10 per bag	-	120 mm	175 mm	70 mm	8 mm	11x60 mm	4x8	-	60x11 mm	-	Steel	S315	TV-3
Angle bracket	0759865	20 per bag	-	60 mm	100 mm	80 mm	10 mm	17x50 diag. mm	2/9-1/11	-	50x17 mm	-	Steel	S315	TV-3
Angle bracket	0759875	20 per bag	-	70 mm	120 mm	80 mm	10 mm	17x50 diag. mm	2/9-1/11	-	50x17 mm	-	Steel	S315	TV-3
Angle bracket	0759877	25 per bag	-	70 mm	120 mm	80 mm	10 mm	17x70 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Angle bracket	0759879	5 per bunch	-	80 mm	200 mm	100 mm	10 mm	13x100 mm	4/10	-	-	-	Steel	S315	EV-2
Concrete angle bracket	0758662	15 per box	-	120 mm	160 mm	60 mm	8 mm	2/11x80 diag. mm	7/8	-	2/11x80 mm	-	Steel	S315	TV-3
Angle bracket	0759778	10 per bag	-	120 mm	170 mm	70 mm	10 mm	13x65 mm	6/9-2/13	-	-	-	Steel	S315	TV-3
Angle bracket	0759774	10 per box	-	140 mm	170 mm	70 mm	10 mm	13x65 mm	8/9-3/13	-	-	-	Steel	S315	TV-3
Angle bracket	0759777	15 per bag	-	100 mm	170 mm	70 mm	10 mm	13x65 mm	4/9-2/13	-	-	-	Steel	S315	TV-3
Angle bracket	0759845	20 per box	-	40 mm	150 mm	80 mm	10 mm	17x50 diag. mm	2/9-1/11	-	50x17 mm	-	Steel	S315	TV-3
Angle bracket	0758791	10 per bunch	-	200 mm	210 mm	70 mm	8 mm	17x70 mm	4/9-6/11-5/13	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0758867	25 per bag	-	60 mm	100 mm	80 mm	8 mm	17x70 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Angle bracket	0759750	20 per box	-	60 mm	100 mm	70 mm	10 mm	13x65 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Concrete angle bracket	0758877	25 per bag	-	70 mm	120 mm	80 mm	8 mm	17x70 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
Angle bracket with slotted hole	072445	100 per box	-	75 mm	125 mm	30 mm	2 mm	2/5x12-5/8x17 mm	-	1 ril	-	-	Steel	DX51	SV-2
Angle bracket	0759746	20 per box	-	40 mm	150 mm	70 mm	10 mm	13x65 mm	2/9-1/11	-	-	-	Steel	S315	TV-3
