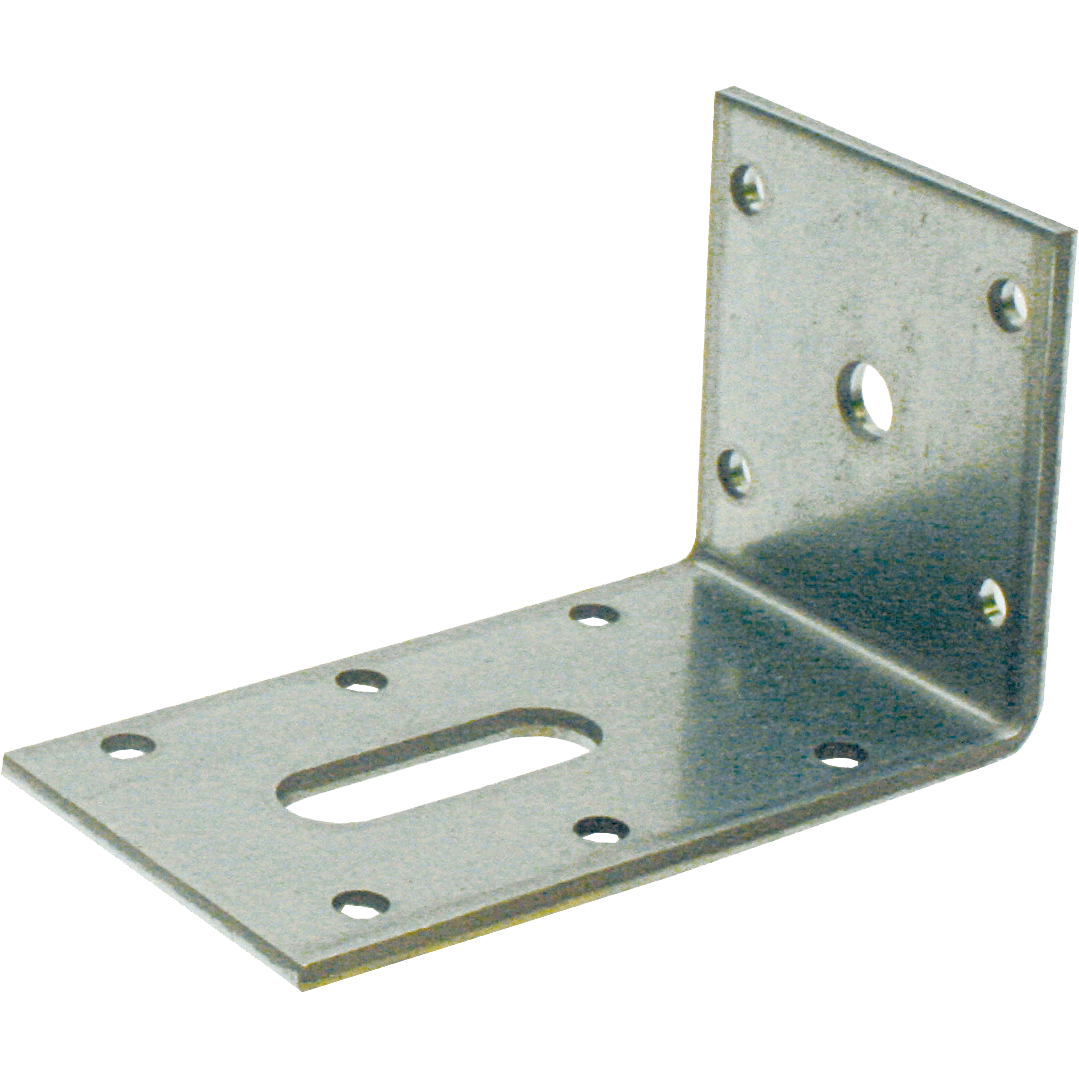

Concrete angle bracket

Heavy corner anchors are primarily used to secure heavy window frames to posts and lintels. Because of the slotted holes, this corner anchor is easily adjustable.

Length 1

Length 2

Width

Thickness

Slotted hole

Slotted holes diagonal

Material

RVS 304

RVS 316

Steel

Steel Quality

Surface treatment

Details & dimensions

Article

Article number07246

EAN code8714318019259

Packaging

EAN code8714318117139

Packaging25 per box

Length220 mm

Width180 mm

Height80 mm

Dimensions

Concrete angle bracket

Length 1 (l1)65 mm

Length 2 (l2)105 mm

Width (b)60 mm

Thickness (d)4 mm

Slotted hole40x13 mm

Hole pattern10/4-1/9

MaterialSteel

Steel QualityS350

Surface treatment
