Angle bracket

Heavy corner anchor with diagonal slotted hole, primarily used for bottom lintel mounting of window frames. The corner anchor has a straight and a diagonal slotted hole for easy positioning.

Length 1

Length 2

Width

Thickness

Slotted hole

Slotted holes diagonal

Material

Steel Quality

Surface treatment

Details & dimensions

Article

Article number0759774

EAN code8714318051518

Packaging

EAN code8714318051525

Packaging10 per bag

Length285 mm

Width225 mm

Height70 mm

Dimensions

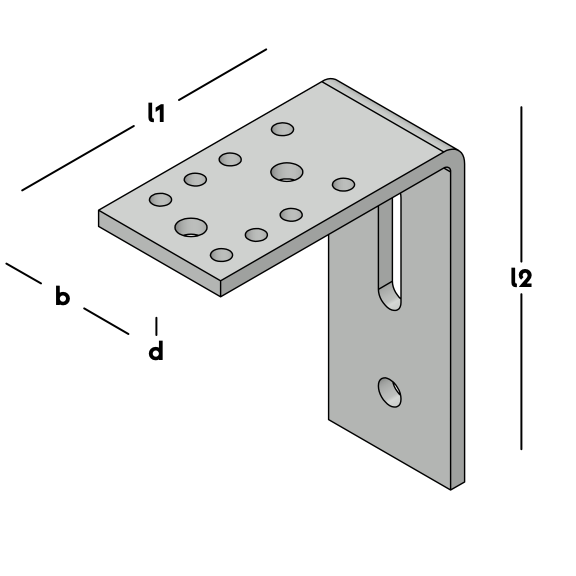

Angle bracket

Length 1 (l1)140 mm

Length 2 (l2)170 mm

Width (b)70 mm

Thickness (d)10 mm

Hole pattern8/9-3/13

MaterialSteel

Steel QualityS315

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 6

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Creasing	Slotted holes diagonal	Square hole	Material	Steel Quality	Surface treatment
Angle bracket	070220	100 per box	90 mm	90 mm	60 mm	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	-	Steel	S350
Angle bracket ridged	070229	50 per box	150 mm	150 mm	60 mm	2,5 mm	2/30x11 mm	15/4-10/6-5/9	-	-	-	Steel	S350
Angle bracket ridged	070230	100 per box	90 mm	90 mm	60 mm	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	-	Steel	S350
Angle bracket	070301	100 per box	40 mm	60 mm	60 mm	2,5 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	-	Steel	S350
Angle bracket	070302	100 per box	80 mm	100 mm	60 mm	2.5 mm	2/50x13 mm	12/5-2/7	-	-	-	Steel	S350
Angle bracket	07122	100 per box	90 mm	90 mm	60 mm	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket ridged	07123	100 per box	90 mm	90 mm	60 mm	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket ridged	07124	100 per box	60 mm	60 mm	60 mm	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	-	RVS 316	W-Nr.:1.4404	-
Angle bracket	07130	100 per box	40 mm	60 mm	60 mm	2 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07131	100 per box	40 mm	60 mm	60 mm	2 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	-	RVS 316	W-Nr.:1.4404	-
Angle bracket	07132	100 per box	40 mm	100 mm	60 mm	2 mm	40x12 mm	12/4-1/11	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07136	100 per box	50 mm	50 mm	60 mm	2 mm	30x9-30x12 mm	12/4	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	07149	100 per box	50 mm	90 mm	60 mm	2 mm	12x4-24x6-24x8,5 mm	6/4-4/6-2/9	-	-	-	RVS 304	W-Nr.:1.4301	-
Angle bracket	072215	100 per box	70 mm	70 mm	60 mm	2 mm	25x11 mm	1/9-8/7-4/5	-	-	-	Steel	DX51
Angle bracket ridged	072216	100 per box	70 mm	70 mm	60 mm	2 mm	25x11 mm	1/9-8/7-4/5	-	-	-	Steel	DX51
Angle bracket	072220	100 per box	90 mm	90 mm	60 mm	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	-	Steel	DX51
Angle bracket	072222	100 per box	90 mm	90 mm	60 mm	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	-	Steel	DX51
Angle bracket ridged	072230	100 per box	90 mm	90 mm	60 mm	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	-	Steel	DX51
Angle bracket ridged	072232	100 per box	90 mm	90 mm	60 mm	2 mm	30x11 mm	14/4-6/6-4/9-1/11	-	-	-	Steel	DX51
Angle bracket ridged	072233	100 per box	90 mm	90 mm	60 mm	2,5 mm	30x11 mm	10/4-6/6-4/9-1/11	-	-	-	Steel	DX51
Fish plate	07225	50 per box	125 mm	125 mm	46 mm	2,5 mm	20x10 mm	10/4-6/6-1/11	-	-	-	Steel	DX51
Fish plate ridged	07226	50 per box	125 mm	125 mm	60 mm	2,5 mm	20x10 mm	10/4-6/6-1/11	-	-	-	Steel	DX51
Fish plate ridged	072261	50 per box	125 mm	125 mm	46 mm	2,5 mm	20x10 mm	10/4-6/6-1/11	-	-	-	Steel	DX51
Angle bracket	07228	50 per box	150 mm	150 mm	60 mm	2,5 mm	2/30x11 mm	15/4-10/6-5/9	-	-	-	Steel	DX51
Angle bracket ridged	07229	50 per box	150 mm	150 mm	60 mm	2,5 mm	2/30x11 mm	15/4-10/6-5/9	-	-	-	Steel	DX51
Angle bracket	072300	50 per box	27 mm	68 mm	60 mm	2 mm	40x13 mm	6/5,3-1/9	-	-	-	Steel	DX51
Angle bracket	072301	100 per box	40 mm	60 mm	60 mm	2,5 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	-	Steel	DX51
Angle bracket	072302	100 per box	40 mm	60 mm	60 mm	2 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	-	Steel	DX51
Angle bracket	072303	100 per box	40 mm	60 mm	60 mm	2,5 mm	30x11 mm	10/4-2/6-2/9-1/11	-	-	-	Steel	DX51
Angle bracket	07231	100 per box	60 mm	60 mm	60 mm	2 mm	2/30x11 mm	10/4,5-4/6,5	-	-	-	Steel	DX51
Angle bracket	07232	100 per box	40 mm	100 mm	60 mm	2,5 mm	40x12 mm	12/4-1/11	-	-	-	Steel	DX51
Angle bracket	07233	100 per box	50 mm	75 mm	60 mm	2 mm	-	8/4-4/6-2/9	-	-	-	Steel	DX51
Angle bracket	07234	100 per box	40 mm	80 mm	60 mm	2,5 mm	30x9 mm	6/6	-	-	-	Steel	DX51
Angle bracket	072350	100 per box	50 mm	110 mm	60 mm	3 mm	32x11-2/40x11 dia. mm	10/5	-	2/50x13 mm	-	Steel	DX51
Angle bracket	072354	100 per box	55 mm	85 mm	60 mm	2,5 mm	32x9-50x9 mm	10/5	-	-	-	Steel	S350
Angle bracket	072355	100 per box	60 mm	80 mm	60 mm	2,5 mm	32x13-50x13 mm	8/4,5	-	-	-	Steel	DX51
Angle bracket	072356	100 per box	60 mm	80 mm	60 mm	2,5 mm	32x13-50x13 mm	8/4,5	-	-	-	Steel	S350
Angle bracket	07236	100 per box	50 mm	50 mm	60 mm	2,5 mm	30x9-30x12 mm	12/4	-	-	-	Steel	DX51
Angle bracket	0723610	100 per box	50 mm	50 mm	58 mm	2 mm	30x9-30x12 mm	12/4	-	-	-	Steel	DX51
Angle bracket	07237	50 per box	90 mm	150 mm	60 mm	2,5 mm	30x11 mm	12/4-8/6-5/9-2/11	-	-	-	Steel	DX51
Angle bracket	072375	50 per box	40 mm	200 mm	60 mm	2,5 mm	30x11 mm	12/4-8/6-5/9-2/11	-	-	-	Steel	DX51
Angle bracket	072381	100 per box	60 mm	80 mm	60 mm	-	25x11 mm	4/4-8/6-1/9	1 ridge	-	-	Steel	DX51
Angle bracket	072383	100 per box	60 mm	120 mm	60 mm	-	2/25x11 mm	6/4-11/6-1/9	1 ridge	-	-	Steel	DX51
Angle bracket	072385	50 per box	60 mm	180 mm	60 mm	-	3/25x11 mm	8/4-14/6-1/9	1 ridge	-	-	Steel	DX51
Angle bracket ridged	07239	50 per box	90 mm	150 mm	60 mm	-	30x11 mm	12/4-8/6-5/9-2/11	1 ridge	-	-	Steel	DX51
Angle bracket ridged	07244	100 per box	125 mm	125 mm	30 mm	2 mm	-	10/4-2/9	-	-	-	Steel	DX51
Angle bracket ridged	07245	100 per box	160 mm	160 mm	30 mm	2 mm	-	12/4-1/7-2/9	-	-	-	Steel	DX51
Angle bracket	07249	100 per box	50 mm	90 mm	60 mm	2,5 mm	12x4-24x6-24x8,5 mm	6/4-4/6-2/9	-	-	-	Steel	DX51
Angle bracket 100°	072491	100 per box	50 mm	90 mm	60 mm	2,5 mm	2/30x10,5 mm	8/5	-	-	-	Steel	DX51
	0724912	100 per box	50 mm	90 mm	60 mm	2,5 mm	2/30x10,5 mm	8/5	-	-	-	Steel	DX51
Angle bracket	072492	100 per box	50 mm	90 mm	60 mm	2,5 mm	12x4-24x6-24x8,5 mm	6/4-4/6-2/9	-	-	-	Steel	DX51
Concrete angle bracket	072401	75 per bag	45 mm	80 mm	80 mm	4 mm	-	4/4,5	-	-	-	Steel	S350
Concrete angle bracket	072403	75 per bag	45 mm	80 mm	72 mm	4 mm	11x67 dia. mm	4/4	-	11x67 mm	-	Steel	S350
Concrete angle bracket	072405	50 per bag	80 mm	80 mm	72 mm	4 mm	-	6/4	-	11x67 mm	-	Steel	S350
Concrete angle bracket	072406	50 per bag	80 mm	80 mm	72 mm	4 mm	-	6/4,5	-	-	-	Steel	S350
Concrete angle bracket	072407	30 per bag	80 mm	80 mm	100 mm	5 mm	-	-	-	13x50 mm	-	Steel	S350
Concrete angle bracket	072408	20 per bag	80 mm	80 mm	100 mm	8 mm	-	-	-	-	-	Steel	S315
Angle bracket	07241	25 per box	55 mm	105 mm	50 mm	5 mm	40x13 mm	4/6-1/11	-	-	-	Steel	DX51
Concrete angle bracket	07242	50 per box	55 mm	80 mm	40 mm	4 mm	30x9 mm	2/6-1/9	-	-	-	Steel	S350
Concrete angle bracket	07243	50 per box	30 mm	100 mm	60 mm	4 mm	40x13 mm	8/5,5	-	-	-	Steel	S350
Angle bracket	072455	25 per box	60 mm	60 mm	60 mm	5 mm	4/25x9 mm	-	-	-	-	Steel	DX51
Concrete angle bracket	07246	25 per box	65 mm	105 mm	60 mm	4 mm	40x13 mm	10/4-1/9	-	-	-	Steel	S350
Concrete angle bracket	07247	25 per box	65 mm	155 mm	60 mm	4 mm	40x13 mm	13/4-2/9	-	-	-	Steel	S350
Concrete angle bracket	0724812	10 per box	95 mm	210 mm	60 mm	6 mm	60x9-180x12 mm	4/6,5-5/7	-	-	-	Steel	DX51
Concrete angle bracket	0724813	10 per box	95 mm	180 mm	60 mm	6 mm	60x9-145x12 open mm	4/6,5-4/7	-	-	-	Steel	DX51
Concrete angle bracket	0724814	10 per box	65 mm	180 mm	60 mm	6 mm	145x12 open mm	4/6-2/9-1/13	-	-	-	Steel	DX51
Angle bracket	0724815	10 per box	70 mm	140 mm	65 mm	5 mm	-	1/5-1/7	-	-	2/12x12 mm	Steel	DX51
Concrete angle bracket	0724818	10 per box	80 mm	190 mm	60 mm	6 mm	65x13 mm	4/9-1/11-2/14	-	-	-	Steel	DX51
Concrete angle bracket	0724819	10 per box	80 mm	225 mm	60 mm	6 mm	65x13 mm	4/9-1/11-3/14	-	-	-	Steel	DX51
Concrete angle bracket	0724822	10 per box	95 mm	210 mm	60 mm	5 mm	-	4/6,5-5/7	-	-	-	Steel	S350
Concrete angle bracket	0724832	10 per box	80 mm	190 mm	60 mm	8 mm	65x13 mm	4/9-1/11-2/14	-	-	-	Steel	S315
Concrete angle bracket	0724833	10 per box	80 mm	225 mm	60 mm	8 mm	65x13 mm	4/9-1/11-3/14	-	-	-	Steel	S315
Angle bracket	074460	25 per box	40 mm	115 mm	60 mm	5 mm	2/20x9 mm	3/9	-	-	-	Steel	S235
Angle bracket	0759915	5 per bunch	100 mm	150 mm	100 mm	10 mm	-	2/10-2/16	-	-	-	Steel	S315
Angle bracket	0759920	5 per bunch	100 mm	200 mm	100 mm	10 mm	-	2/10-3/16	-	-	-	Steel	S315
Angle bracket	0758879	10 per bag	75 mm	175 mm	100 mm	8 mm	80x13 mm	4/9	-	-	-	Steel	S315
Angle bracket	0759746	25 per bag	40 mm	150 mm	70 mm	10 mm	-	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	07587660	25 per bag	60 mm	100 mm	70 mm	8 mm	65x13 mm	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	0758767	25 per bag	60 mm	100 mm	70 mm	8 mm	-	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	0756643	30 per bag	40 mm	120 mm	60 mm	6 mm	65x13 mm	2/9-1/11	-	-	-	Steel	DX51
Concrete angle bracket	0756646	30 per bag	40 mm	150 mm	60 mm	6 mm	65x13 mm	2/9-1/11	-	-	-	Steel	DX51
Concrete angle bracket	0756647	30 per bag	40 mm	150 mm	60 mm	6 mm	70x17 mm	2/9-1/11	-	-	-	Steel	DX51
Concrete angle bracket	0756666	30 per bag	60 mm	100 mm	60 mm	6 mm	65x13 mm	2/9-1/11	-	-	-	Steel	DX51
Angle bracket	0756656	10 per bunch	50 mm	150 mm	110 mm	6 mm	65x13 mm	3/11	-	-	-	Steel	S235
Concrete angle bracket	0756667	30 per bag	60 mm	100 mm	60 mm	6 mm	70x17 mm	2/9-1/11	-	-	-	Steel	DX51
Concrete angle bracket	0756676	30 per bag	70 mm	120 mm	60 mm	6 mm	65x13 mm	2/9-1/11	-	-	-	Steel	DX51
Concrete angle bracket	0756677	30 per bag	70 mm	120 mm	60 mm	6 mm	70x15 mm	2/9-1/11	-	-	-	Steel	DX51
Concrete angle bracket	0756696	30 per bag	90 mm	100 mm	60 mm	6 mm	65x13 mm	2/9-1/11	-	-	-	Steel	DX51
Concrete angle bracket	0756697	30 per bag	90 mm	100 mm	60 mm	6 mm	70x17 mm	2/9-1/11	-	-	-	Steel	DX51
Concrete angle bracket	0758546	25 per bag	40 mm	150 mm	50 mm	8 mm	65x13 mm	1/11	-	-	-	Steel	S315
Concrete angle bracket	0758566	25 per bag	60 mm	100 mm	50 mm	8 mm	65x13 mm	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	0758576	25 per bag	70 mm	120 mm	50 mm	8 mm	65x13 mm	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	0758746	25 per bag	40 mm	150 mm	70 mm	8 mm	65x13 mm	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	07587460	25 per bag	40 mm	150 mm	70 mm	8 mm	65x13 mm	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	0758747	25 per bag	40 mm	150 mm	70 mm	8 mm	70x17 mm	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	0758766	25 per bag	60 mm	100 mm	70 mm	8 mm	65x13 mm	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	0756745	30 per bag	40 mm	120 mm	70 mm	6 mm	-	2/9-1/11	-	50x13 mm	-	Steel	DX51
Concrete angle bracket	0756765	30 per bag	60 mm	100 mm	70 mm	6 mm	-	2/9-1/11	-	50x13 mm	-	Steel	DX51
Concrete angle bracket	0756766	30 per bag	60 mm	100 mm	70 mm	6 mm	-	2/9-1/11	-	50x17 mm	-	Steel	DX51
Concrete angle bracket	0756775	30 per bag	70 mm	120 mm	70 mm	6 mm	-	2/9-1/11	-	50x13 mm	-	Steel	DX51
Concrete angle bracket	0756795	30 per bag	90 mm	100 mm	70 mm	6 mm	-	2/9-1/11	-	50x13 mm	-	Steel	DX51
Concrete angle bracket	0758748	25 per bag	40 mm	150 mm	70 mm	8 mm	-	2/9-1/11	-	50x13 mm	-	Steel	S315
Concrete angle bracket	0758768	25 per bag	60 mm	100 mm	70 mm	8 mm	-	2/9-1/11	-	50x13 mm	-	Steel	S315
Concrete angle bracket	0758774	15 per bag	140 mm	170 mm	70 mm	8 mm	-	8/9-3/13	-	-	-	Steel	S315
Concrete angle bracket	0758775	25 per bag	70 mm	120 mm	70 mm	8 mm	-	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	0758776	25 per bag	70 mm	120 mm	70 mm	8 mm	-	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	07587760	25 per bag	70 mm	120 mm	70 mm	8 mm	-	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	07587761	25 per bag	70 mm	120 mm	70 mm	8 mm	-	2/9-1/11	-	50x13 mm	-	Steel	S315
Angle bracket	07587762	15 per bag	70 mm	150 mm	100 mm	8 mm	80x14 mm	4/8	-	-	-	Steel	S315
Angle bracket	0758777	15 per bag	100 mm	170 mm	70 mm	8 mm	-	4/9-2/13	-	-	-	Steel	S315
Angle bracket	0758778	15 per bag	120 mm	170 mm	70 mm	8 mm	-	6/9-2/13	-	-	-	Steel	S315
Angle bracket	0758779	15 per bag	160 mm	170 mm	70 mm	8 mm	-	10/9-3/13	-	-	-	Steel	S315
Angle bracket	0758780	10 per bunch	100 mm	180 mm	70 mm	8 mm	-	-	-	50x17-80x16 mm	-	Steel	S315
Angle bracket	0758781	10 per bag	120 mm	175 mm	70 mm	8 mm	-	4x8	-	-	-	Steel	S315
Angle bracket	0759865	20 per bag	60 mm	100 mm	80 mm	10 mm	-	2/9-1/11	-	50x17 mm	-	Steel	S315
Angle bracket	0759875	20 per bag	70 mm	120 mm	80 mm	10 mm	-	2/9-1/11	-	50x17 mm	-	Steel	S315
Angle bracket	0759877	25 per bag	70 mm	120 mm	80 mm	10 mm	-	2/9-1/11	-	-	-	Steel	S315
Angle bracket	0759879	5 per bunch	80 mm	200 mm	100 mm	10 mm	100x13 mm	4/10	-	-	-	Steel	S315
Concrete angle bracket	0758662	15 per bag	120 mm	160 mm	60 mm	8 mm	-	7/8	-	2/11x80 mm	-	Steel	S315
Angle bracket	0759778	10 per bag	120 mm	170 mm	70 mm	10 mm	-	6/9-2/13	-	-	-	Steel	S315
Angle bracket	0759774	10 per bag	140 mm	170 mm	70 mm	10 mm	-	8/9-3/13	-	-	-	Steel	S315
Angle bracket	0759777	15 per bag	100 mm	170 mm	70 mm	10 mm	-	4/9-2/13	-	-	-	Steel	S315
Angle bracket	0759845	20 per bag	40 mm	150 mm	80 mm	10 mm	-	2/9-1/11	-	50x17 mm	-	Steel	S315
Angle bracket	0758791	10 per bunch	200 mm	210 mm	70 mm	8 mm	70x17 mm	4/9-6/11-5/13	-	-	-	Steel	S315
Concrete angle bracket	0758867	25 per bag	60 mm	100 mm	80 mm	8 mm	70x17 mm	2/9-1/11	-	-	-	Steel	S315
Angle bracket	0759750	20 per bag	60 mm	100 mm	70 mm	10 mm	-	2/9-1/11	-	-	-	Steel	S315
Concrete angle bracket	0758877	25 per bag	70 mm	120 mm	80 mm	8 mm	-	2/9-1/11	-	-	-	Steel	S315
Angle bracket with slotted hole	072445	100 per box	75 mm	125 mm	30 mm	2 mm	2/12x5-5/17x8 mm	-	1 ridge	-	-	30x2	DX51
