Pui-steun Z
Pui-steun Z

Window front frame support

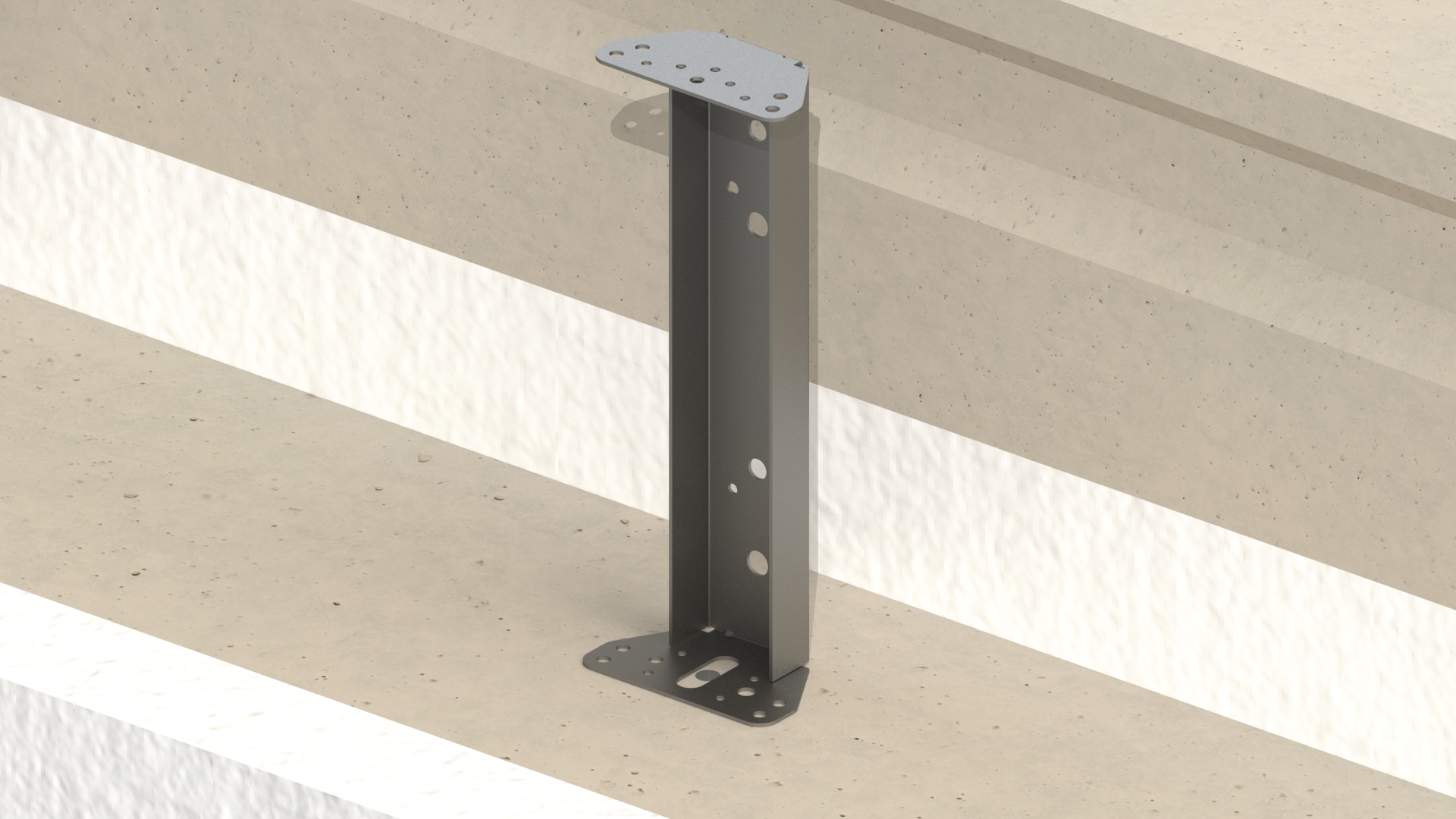

U-profile with mounting plates on both ends. Suitable for directly supporting heavy façade-filling elements or PU structures on the foundation beam. In this model, one mounting plate is arched outwards, for situations where space is limited.

Height

Details & dimensions

Article

Article number0734280
EAN code8714318024819

Packaging

EAN code8714318024826
Packaging15 per box
Length395 mm
Width295 mm
Height270 mm

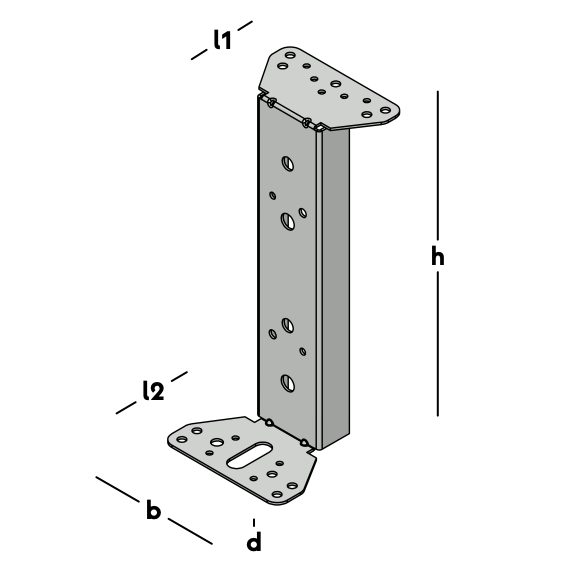

Dimensions

Window front frame support

Length 1 (l1)60 mm
Length 2 (l2)70 mm
Width (b)115 mm
Thickness (d)2 mm
Height (h)280 mm
Slotted hole40x14 mm
Hole pattern9/5-2/5,5-12/7-1/9-2/11-2/13
MaterialSteel
Steel QualityS350
Surface treatmentZM

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Processing & accessories

1 / 5

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.
