Window front frame support

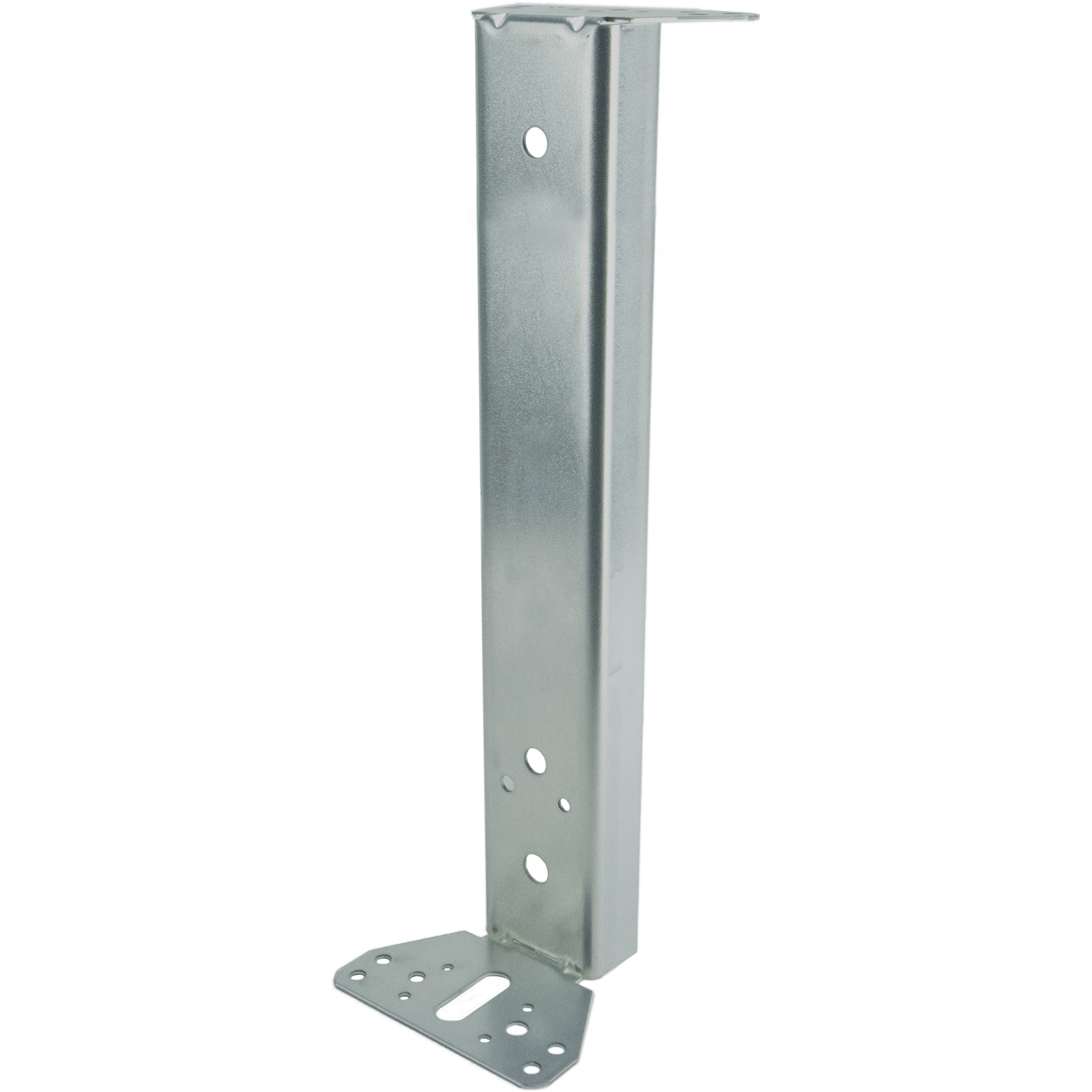

U-profile with mounting plates on both ends. Suitable for directly supporting heavy façade-filling elements or PU structures on the foundation beam. In this model, one mounting plate is arched outwards, for situations where space is limited.

Height

Details & dimensions

Article

Article number0734400
EAN code8714318075422

Packaging

EAN code8714318075477
Packaging4 per bunch
Length400 mm
Width205 mm
Height90 mm

Dimensions

Window front frame support

Length 1 (l1)60 mm
Length 2 (l2)70 mm
Width (b)115 mm
Thickness (d)2 mm
Height (h)400 mm
Slotted hole40x14 mm
Hole pattern9/5-2/5,5-12/7-1/9-2/11-2/13
MaterialSteel
Steel QualityS350
Surface treatmentZM
