Pui-steun Z
Pui-steun Z

Window front frame support

U-profile with mounting plates on both ends. Suitable for directly supporting heavy façade-filling elements or PU structures on the foundation beam. In this model, one mounting plate is arched outwards, for situations where space is limited.

Height

Details & dimensions

Article

Article number0734500
EAN code8714318074715

Packaging

EAN code8714318074951
Packaging4 per bunch
Length500 mm
Width200 mm
Height90 mm

Dimensions

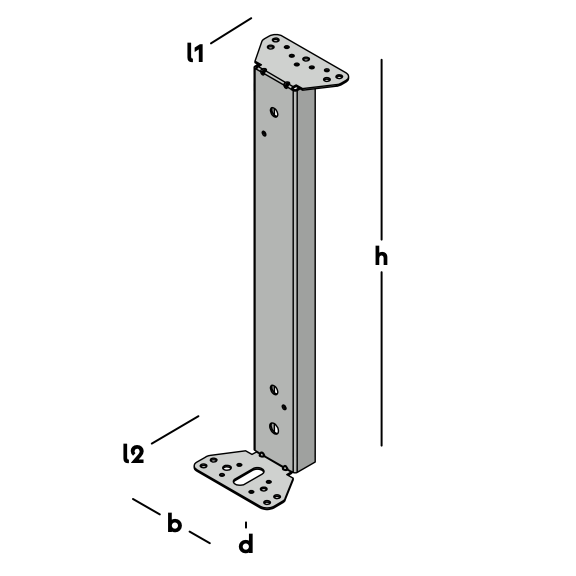

Window front frame support

Length 1 (l1)60 mm
Length 2 (l2)70 mm
Width (b)115 mm
Thickness (d)2 mm
Height (h)500 mm
Slotted hole40x14 mm
Hole pattern9/5-2/5,5-10/7-1/9-2/11-1/13
MaterialSteel
Steel QualityS350
Surface treatmentZM
