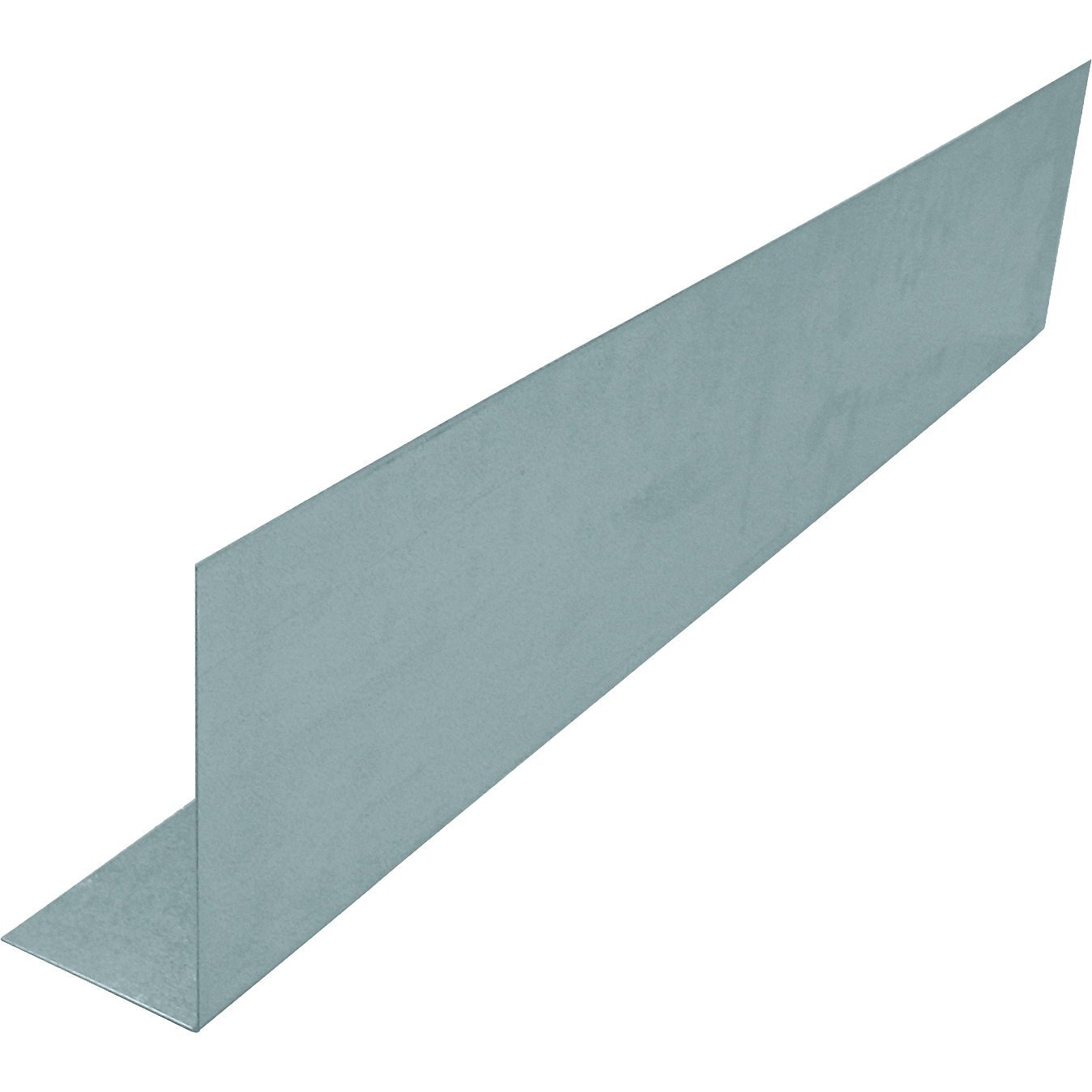

Metal formwork for concrete 90°

Edge box for a poured floor structure. Equipped with a longer lower flange for use in combination with masonry floors.

Thickness

1,5 mm

1,25 mm

Height

Details & dimensions

Article

Article number106180

EAN code8714318037420

Packaging

EAN code8714318037420

Packaging1 piece

Dimensions

Metal formwork for concrete 90°

Length (l)2000 mm

Thickness (d)1,25 mm

Height (h)180 mm

Hole pattern8/7

Degrees ° angle-put90 °

Flange (f)120 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Processing & accessories

1 / 4

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Length	Thickness	Height	Hole pattern	Degrees ° angle-put	Flange	Material	Steel Quality
Metal formwork for concrete 90°	113230	1 piece	2000 mm	1,5 mm	230 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	113240	1 piece	2000 mm	1,5 mm	240 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	113250	1 piece	2000 mm	1,5 mm	250 mm	4/5-8/7	90 °	70 mm	Steel	DX51
Metal formwork for concrete 90°	113260	1 piece	2000 mm	1,5 mm	260 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	113270	1 piece	2000 mm	1,5 mm	270 mm	4/5-8/7	90 °	65 mm	Steel	DX51
Metal formwork for concrete 90°	113280	1 piece	2000 mm	1,5 mm	280 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	113290	1 piece	2000 mm	1,5 mm	290 mm	4/5-8/7	90 °	70 mm	Steel	DX51
Metal formwork for concrete 90°	113300	1 piece	2000 mm	1,5 mm	300 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	113310	1 piece	2000 mm	1,5 mm	310 mm	4/5-8/7	90 °	70 mm	Steel	DX51
Metal formwork for concrete 90°	113320	1 piece	2000 mm	1,5 mm	320 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	113330	1 piece	2000 mm	1,5 mm	330 mm	4/5-8/7	90 °	80 mm	Steel	DX51
Metal formwork for concrete 90°	113340	1 piece	2000 mm	1,5 mm	340 mm	4/5-8/7	90 °	70 mm	Steel	DX51
Metal formwork for concrete 90°	113350	1 piece	2000 mm	1,5 mm	350 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	113360	1 piece	2000 mm	1,5 mm	360 mm	4/5-8/7	90 °	70 mm	Steel	DX51
Metal formwork for concrete 90°	113370	1 piece	2000 mm	1,5 mm	370 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	113380	1 piece	2000 mm	1,5 mm	380 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	113390	1 piece	2000 mm	1,5 mm	390 mm	4/5-8/7	90 °	85 mm	Steel	DX51
Metal formwork for concrete 90°	113400	1 piece	2000 mm	1,5 mm	400 mm	4/5-8/7	90 °	75 mm	Steel	DX51
Metal formwork for concrete 90°	113410	1 piece	2000 mm	1,5 mm	410 mm	4/5-8/7	90 °	65 mm	Steel	DX51
Metal formwork for concrete 90°	113420	1 piece	2000 mm	1,5 mm	420 mm	4/5-8/7	90 °	80 mm	Steel	DX51
Metal formwork for concrete 90°	113430	1 piece	2000 mm	1,5 mm	430 mm	4/5-8/7	90 °	70 mm	Steel	DX51
Metal formwork for concrete 90°	113440	1 piece	2000 mm	1,5 mm	440 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	113450	1 piece	2000 mm	1,5 mm	450 mm	4/5-8/7	90 °	75 mm	Steel	DX51
Metal formwork for concrete 90°	113460	1 piece	2000 mm	1,5 mm	460 mm	4/5-8/7	90 °	65 mm	Steel	DX51
Metal formwork for concrete 90°	113470	1 piece	2000 mm	1,5 mm	470 mm	4/5-8/7	90 °	80 mm	Steel	DX51
Metal formwork for concrete 90°	113490	1 piece	2000 mm	1,5 mm	490 mm	4/5-8/7	90 °	60 mm	Steel	DX51
Metal formwork for concrete 90°	106170	1 piece	2000 mm	1,25 mm	170 mm	8/7	90 °	130 mm	Steel	DX51
Metal formwork for concrete 90°	106180	1 piece	2000 mm	1,25 mm	180 mm	8/7	90 °	120 mm	Steel	DX51
Metal formwork for concrete 90°	106190	1 piece	2000 mm	1,25 mm	190 mm	8/7	90 °	110 mm	Steel	DX51
Metal formwork for concrete 90°	106200	1 piece	2000 mm	1,25 mm	200 mm	8/7	90 °	100 mm	Steel	DX51
Metal formwork for concrete 90°	113480	1 piece	2000 mm	1,5 mm	480 mm	4/5-8/7	90 °	70 mm	Steel	DX51
