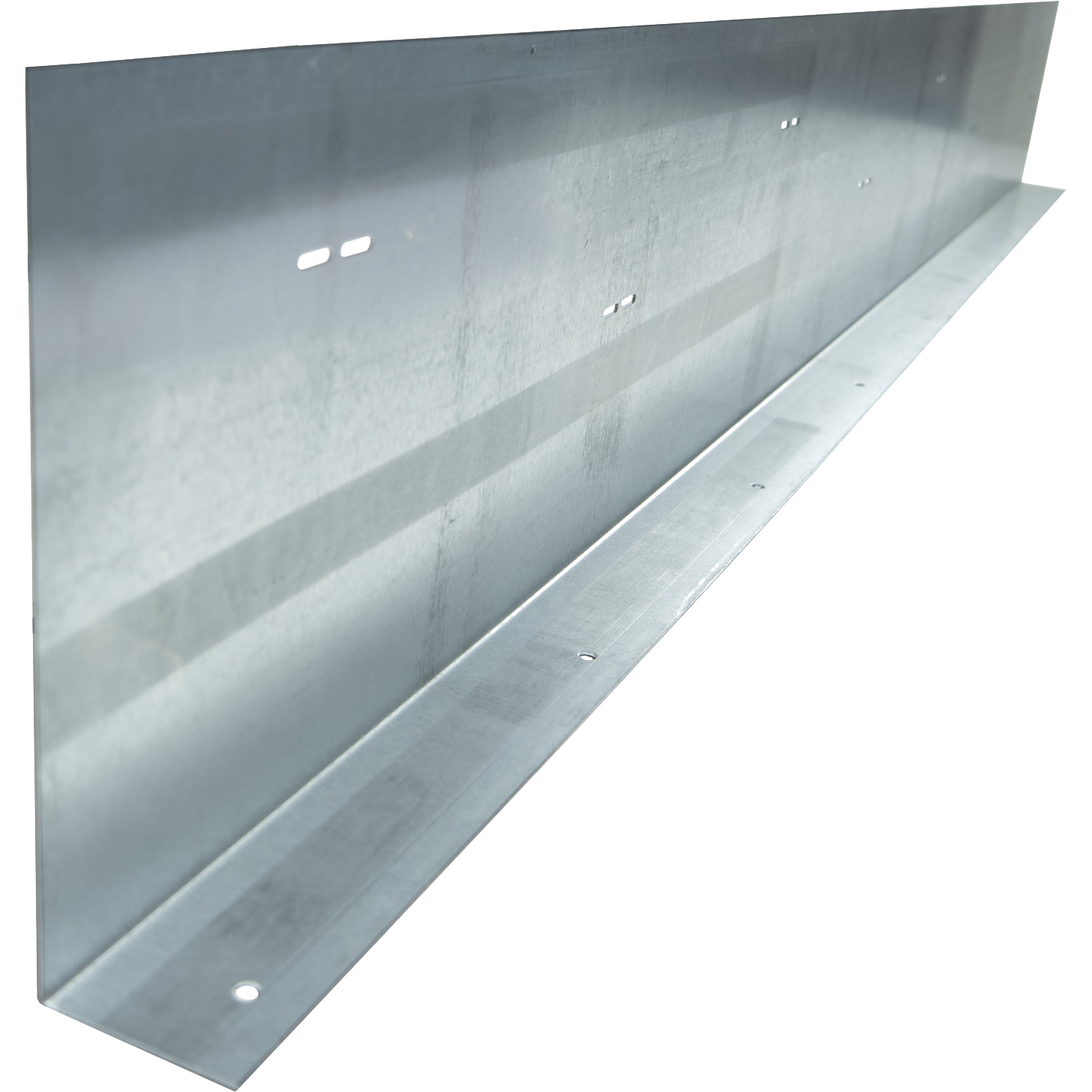

Metal formwork for concrete 90°

Edge formwork for use in combination with cast floor constructions (wide panel/channel panel/combination floor). The metal edge formwork is placed on the inner leaves and/or partition walls. In combination with the universal corner pieces it can be used to create internal or external corners.

Thickness
1,5 mm
1,25 mm
Height

Details & dimensions

Article

Article number113290
EAN code8714318080259

Packaging

EAN code8714318080259
Packaging1 piece

Dimensions

Metal formwork for concrete 90°

Length (l)2000 mm
Thickness (d)1,5 mm
Height (h)290 mm
Hole pattern4/5-8/7
Degrees ° angle-put90 °
Flange (f)70 mm
MaterialSteel
Steel QualityDX51
Surface treatmentSV

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Processing & accessories

1 / 4

View our assembly instructions here that help you step by step to an end result.
